Preview Engine Transmission Electrical Suspension Body

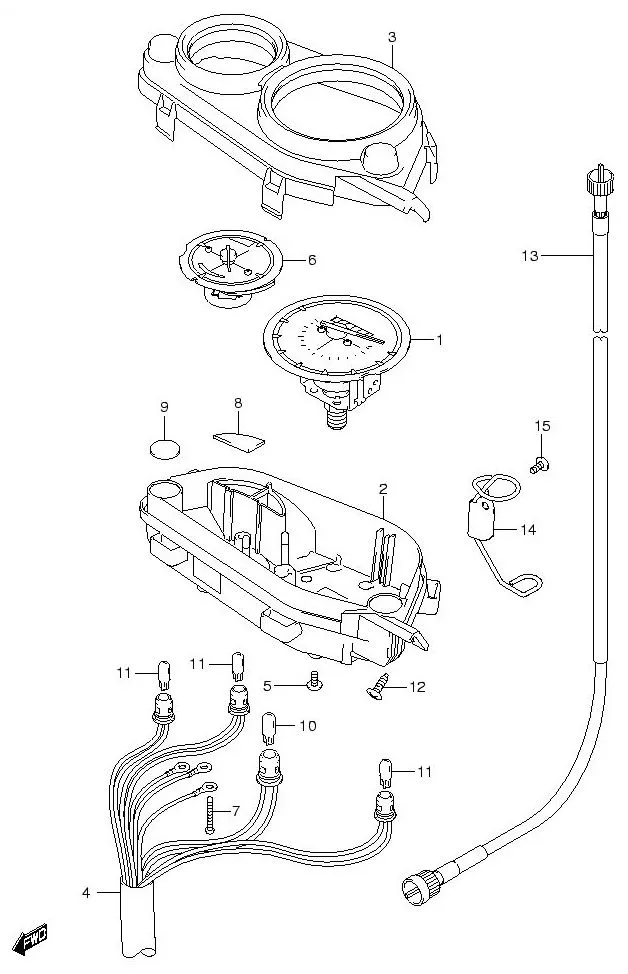

No	No. Part	Description	Qty	Price Per Pcs
	34100-13H11-000 SUB: 34100B13H10N000	SPEEDOMETER ASSY	1	Rp650.500
1	34120-13H10-000 SUB: 34120B13H10N000	SPEEDOMETER	1	Rp191.500
2	34111-13H00-000 SUB: 34111B13H00N000	CASE, LOWER	1	Rp59.500
3	34112-13H00-000 SUB: 34112B13H00N000	CASE, UPPER	1	Rp80.000
4	34173-13H00-000 SUB: 34173B13H00N000	SOCKET	1	Rp59.500
5	DISCONTINUE SUB: 34186B09G00N000	SCREW (4X8)	2	-
6	34320-13H00-000 SUB: 34320B13H00N000	FUEL GAUGE	1	Rp97.000
7	DISCONTINUE SUB: 34383B13H00N000	SCREW, FUEL METER (3X22)	3	-
8	DISCONTINUE SUB: 36331B13H00N000	LENS, HI BEAM (BLUE)	1	-
9	DISCONTINUE SUB: 36412B13H00N000	LENS, TURN (GREEN)	2	-
10	09471-12082-000 SUB: 09471-12082L000	BULB (12V3.4W,T10)	1	Rp12.000
11	09471-12108-000 SUB: 09471-12108L000	BULB (12V1.7W,T6.5)	3	Rp9.500
12	03541-0516A-000 SUB: 03541B0516BN000	SCREW, SPEEDOMETER	3	Rp3.500
13	34910-13H01-000 SUB: 34910-13H00-000	CABLE ASSY, SPEEDOMETER	1	Rp78.000
14	DISCONTINUE SUB: 34930B13H00N000	GUIDE, SPEEDOMETER CABLE	1	-
15	02142-0612A-000 SUB: 02142-0612B-000	BOLT, SPEEDOMETER CABLE	1	Rp4.000
