SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.20 STARTING MOTOR FIG.21 MAGNETO FIG.22 BATTERY FIG.23 ELECTRICAL FIG.24 SPEEDOMETER FIG.25 FRONT COMBINATRION LAMP FIG.26 REAR COMBINATION LAMP FIG.27 WIRING HARNESS

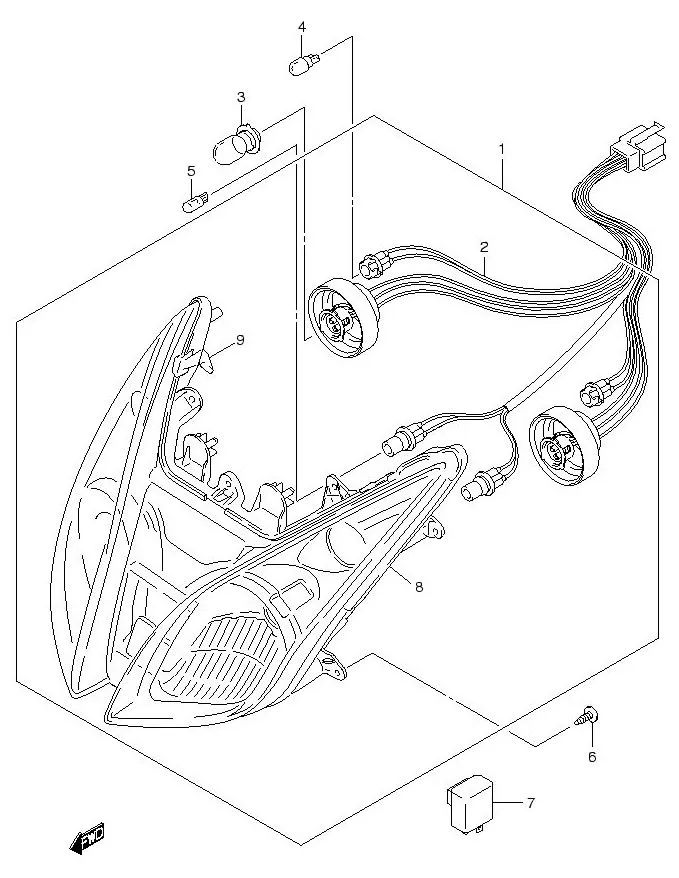

FIG.25 FRONT COMBINATRION LAMP

FIG.25 FRONT COMBINATRION LAMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	35100-13H20-000 SUB: 35100B13H20N000	LAMP ASSY, FRONT COMB	1	Rp441.500
2	35171-13H20-000 SUB: 35171B13H20N000	.CORD ASSY	1	Rp90.500
3	09471-12013-000 SUB: 09471-12013L000	BULB (12V25/25W)	2	Rp15.000
4	09471-12028-000 SUB: 09471-12028L000	BULB (12V3.4W,T10)	2	Rp8.000
5	09471-12114AS01 SUB: 09471B12203N000	BULB (12V10W)	2	Rp14.000
6	03541-0516A-000 SUB: 03541B0516BN000	SCREW, FRONT COMB	7	Rp3.500
7	38610-35491-000 SUB: 38610B09410N000	RELAY ASSY, TURNSIGNAL	1	Rp45.500
8	35121-13H20-000 SUB: 35121B13H20N000	HEAD LAMP UNIT	1	Rp310.000
9	35382-13H00-000 SUB: 35382B13H00N000	TUBE BREATH	2	Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
