Preview Engine Transmission Electrical Suspension Body

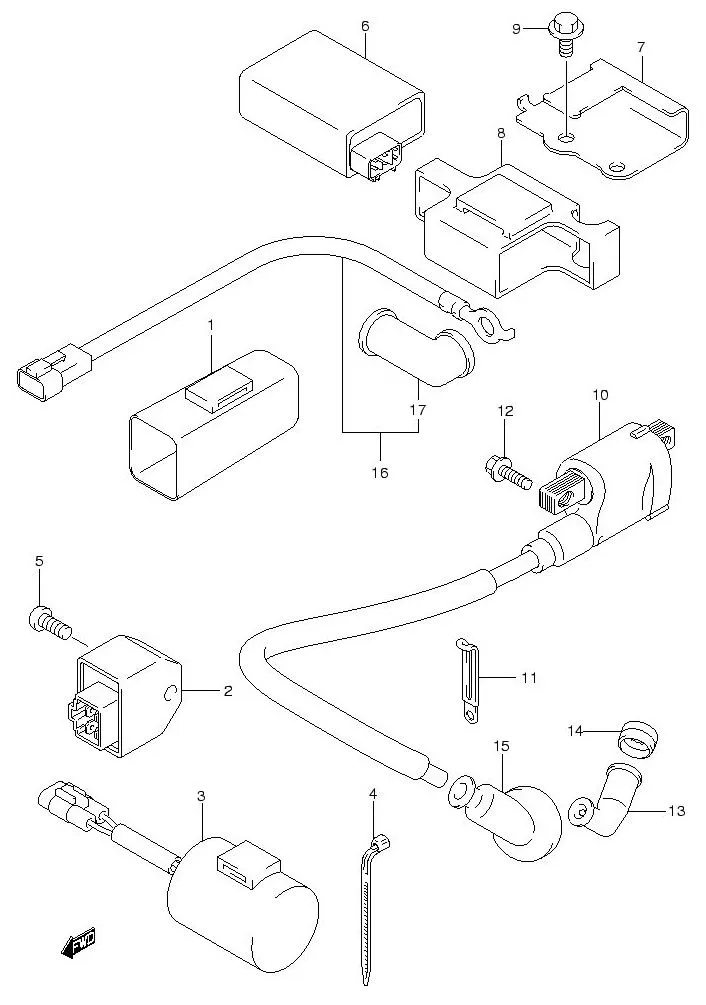

No	No. Part	Description	Qty	Price Per Pcs
1	31800-13H00-000 SUB: 31800B13H00N000	RELAY ASSY, STARTING MOTOR	1	Rp88.000
2	32800-41H01-000 SUB: 32800B47E00N000	RECTIFIER ASSY	1	Rp117.500
3	DISCONTINUE SUB: 33640B13H00N000	CONDENSER ASSY	1	-
4	09407-19401-000 SUB: 09407-25402-000	CLAMP (L:248)	1	Rp31.500
5	02112-0612A-000 SUB: 02112B0612BN000	SCREW, RECTIFIER	1	Rp3.500
6	DISCONTINUE SUB: 32900B46G01N000	CDI UNIT	1	-
7	DISCONTINUE SUB: 32933B13H00N000	BRACKET, CDI UNIT	1	-
8	32980-20G00-000	CUSHION, CDI UNIT	1	Rp43.000
9	01550-0612A-000	BOLT, CDI BRACKET	1	Rp3.500
10	33410-13H00-000 SUB: 33410B13H00N000	COIL ASSY, IGNITION	1	Rp74.000
11	09404-06429-000 SUB: 09404B06429N000	CLAMP (L:45)	1	Rp15.000
12	01547-0616A-000 SUB: 01547B0616BN000	BOLT, IGNITION COIL	2	Rp6.500
13	33500-41H00-000 SUB: 33510B20E00N000	CAP ASSY, SPARK PLUG	1	Rp47.000
14	DISCONTINUE SUB: 33541B13H00N000	SEAL, SPARK PLUG	1	-
15	33542-33G00-000 SUB: 33542-46G00-000	SEAL, HIGH TENSION CORD	1	Rp45.500
16	33810-13H00-000 SUB: 33810B13H00N000	WIRE, STARTER MOTOR	1	Rp33.000
17	31861-48B10-000 SUB: 31861B48B10N000	.CAP, STARTER MOTOR LEAD	1	Rp5.000
