S-Presso MC

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT SUSPENSIONFRONT DRIVE SHAFT(MT)FRONT DRIVE SHAFT(AGS)FRONT SUSPENSION FRAMEREAR SUSPENSIONROAD WHEEL/TIRE(K10B:DX,K10C)STEERING WHEELSTEERING COLUMNSTEERING UNITPEDAL/PEDAL BRACKET(5MT:RHD)PEDAL/PEDAL BRACKET(5AGS)BRAKE MASTER CYLINDER(RHD)BRAKE PIPING(RHD)ANTI LOCK BRAKE SYSTEMFRONT WHEEL BRAKEREAR WHEEL BRAKEPARKING BRAKEFRONT HOOD PANEL (RHD)

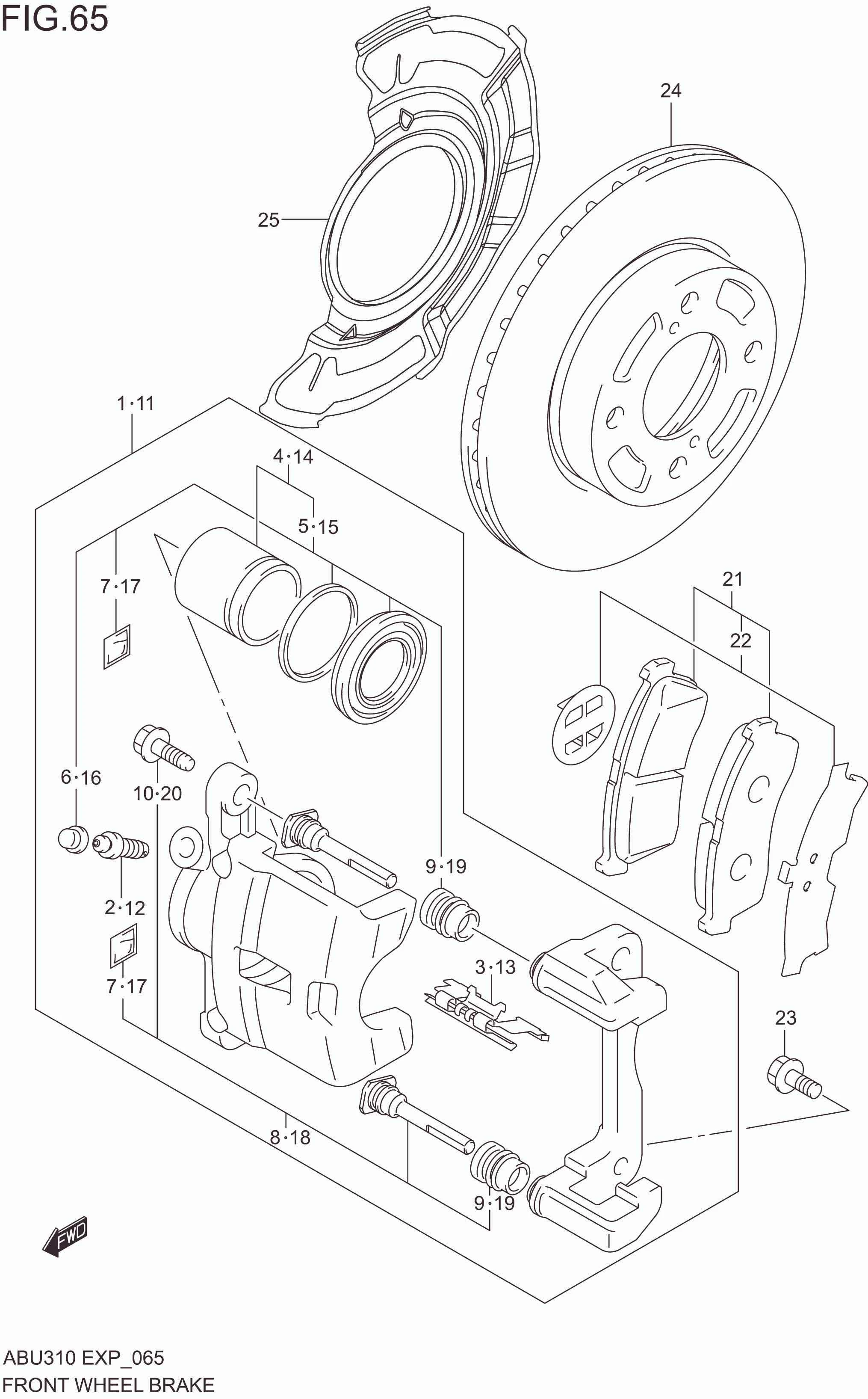

FRONT WHEEL BRAKE

FRONT WHEEL BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1-2 55101M62S30-000 CALIPER ASSY, FRONT BRAKE RH R :K10C 1 Rp1.500.000 K10C
1-1 55101M62S10-000 CALIPER ASSY, FRONT BRAKE RH R :K10B 1 Rp1.300.500 K10B
2 55151M55K00-000 .PLUG, BLEEDER 1 Rp11.500
3 55234-76G10-000 .CLIP 2 Rp87.000
4 55830M68P01-000 .PISTON / SEAL SET 1 Rp135.000
5 55840M68P01-000 ..SEAL SET 1 Rp58.000
6 55156M66310-000 ...CAP, BLEEDER PLUG 1 Rp23.500
7 DISCONTINUE
SUB: 99000M25020-000		 ...GREASE 1 -
8-1 55850M68P01-000 .SLIDING PIN SET R :K10B 1 Rp156.000 K10B
8-2 55850M62S00-000 .SLIDING PIN SET R :K10C 1 Rp112.500 K10C
9 55201M76G00-000 ..BOOT PIN 2 Rp16.500
10 55206M76G00-000 ..BOLT PIN 2 Rp21.000
11-1 55102M62S10-000 CALIPER ASSY, FRONT BRAKE LH R :K10B 1 Rp1.300.500 K10B
11-2 55102M62S30-000 CALIPER ASSY, FRONT BRAKE LH R :K10C 1 Rp1.500.000 K10C
12 55151M55K00-000 .PLUG, BLEEDER 1 Rp11.500
13 55234-76G10-000 .CLIP 2 Rp87.000
14 55830M68P01-000 .PISTON / SEAL SET 1 Rp135.000
15 55840M68P01-000 ..SEAL SET 1 Rp58.000
16 55156M66310-000 ...CAP, BLEEDER PLUG 1 Rp23.500
17 DISCONTINUE
SUB: 99000M25020-000		 ...GREASE 1 -
18-1 55850M68P01-000 .SLIDING PIN SET R :K10B 1 Rp156.000 K10B
18-2 55850M62S00-000 .SLIDING PIN SET R :K10C 1 Rp112.500 K10C
19 55201M76G00-000 ..BOOT PIN 2 Rp16.500
20 55206M76G00-000 ..BOLT PIN 2 Rp21.000
21-1 55810M62S10-000 PAD SET R :K10B 1 Rp520.000 K10B
21-2 55810M62S30-000 PAD SET R :K10C 1 Rp520.000 K10C
22 55820M79F00-000 .SHIM SET 1 Rp80.000
23 55164M74L00-000 BOLT, BRAKE CALIPER 4 Rp17.000
24 55311M66R00-000 DISC, FRONT BRAKE 2 Rp318.000
25 55321M69R10-000 COVER, FR BRAKE DISC DUST 2 Rp36.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
