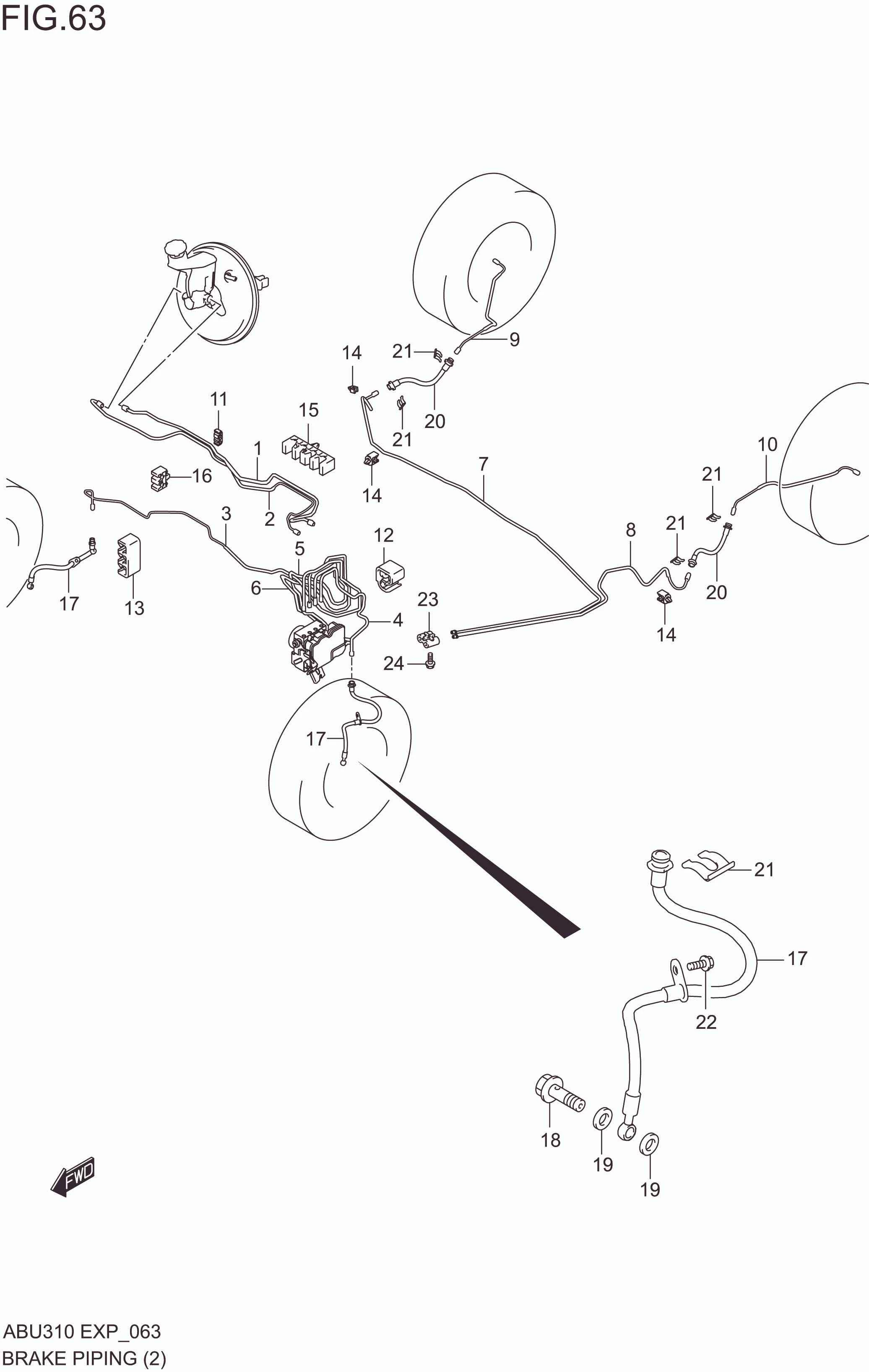

BRAKE PIPING(RHD)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	51410M53T10-000	PIPE, MA PRI TO HU R :K10C	1	Rp44.000	K10C
1-1	51410M62S00-000	PIPE, MA PRI TO HU R :K10B	1	Rp26.000	K10B
2-1	51420M62S00-000	PIPE, MA SEC TO HU R :K10B	1	Rp31.500	K10B
2-2	51420M53T10-000	PIPE, MA SEC TO HU R :K10C	1	Rp58.000	K10C
3-1	51430M62S01-000	PIPE, HU TO FR BK HOSE RH R :K10B	1	Rp81.000	K10B
3-2	51430M53T00-000	PIPE, HU TO FR BK HOSE RH R :K10C	1	Rp44.500	K10C
4-1	51440M62S01-000	PIPE, HU TO FR BK HOSE LH R :K10B	1	Rp81.000	K10B
4-2	51440M53T00-000	PIPE, HU TO FR BK HOSE LH R :K10C	1	Rp79.000	K10C
5-1	51450M62S00-000	PIPE, HU TO 4 JT RH R :K10B	1	Rp60.000	K10B
5-2	51450M53T00-000	PIPE, HU TO 4 JT RH R :K10C	1	Rp60.500	K10C
6-1	51460M62S00-000	PIPE, HU TO 4 JT LH R :K10B	1	Rp60.000	K10B
6-2	51460M53T00-000	PIPE, HU TO 4 JT LH R :K10C	1	Rp51.500	K10C
7	51470M62S00-000	PIPE, 4 JT TO RR BK HOSE RH	1	Rp159.000
8	51480M62S00-000	PIPE, 4 JT TO RR BK HOSE LH	1	Rp159.000
9-2	51510M62S10-000	PIPE, RR BK HOSE TO RR W/C RH R :K10C	1	Rp34.500	K10C
9-1	51510M62S00-000	PIPE, RR BK HOSE TO RR W/C RH R :K10B	1	Rp33.500	K10B
10	51520M62S00-000	PIPE, RR BK HOSE TO RR W/C LH	1	Rp33.500
11	51751M75J00-000	CLAMP, BK PIPE MAIN FL DOUBLE	5	Rp10.500
12	DISCONTINUE SUB: 51752M70F00-000	CLAMP, BK PIPE DASH	2	-
13	51753M74G60-000	CLAMP, BK PIPE HU	1	Rp34.500
14	51761M60M20-000	CLAMP, BK PIPE REAR FL SINGLE	3	Rp5.500
15	51761M62S00-000	CLAMP, BK PIPE STRUT QDRPL	1	Rp8.000
16	51761M62S10-000	CLAMP, BK PIPE STRUT DOUBLE	1	Rp6.500
17	51550M62S01-000 SUB: 51550M62S00-000	HOSE, FR BRAKE FLEXIBLE	2	Rp161.000
18	51561M55K00-000	BOLT, FR DISC FLEXIBLE HOSE	2	Rp8.500
19	51562M55K00-000	WASHER, FR DISC FLEXIBLE HOSE	4	Rp8.500
20	51570M69R00-000	HOSE, RR BRAKE FLEXIBLE	2	Rp111.000
21	09383M13005-000	E-RING, BRAKE FLEXIBLE HOSE	6	Rp7.000
22	01551-0816C-000	BOLT	2	Rp13.500
23	51630M70F00-000	JOINT, BRAKE 4 WAY	1	Rp122.000
24	02162-0625A-000	BOLT	1	Rp3.500
