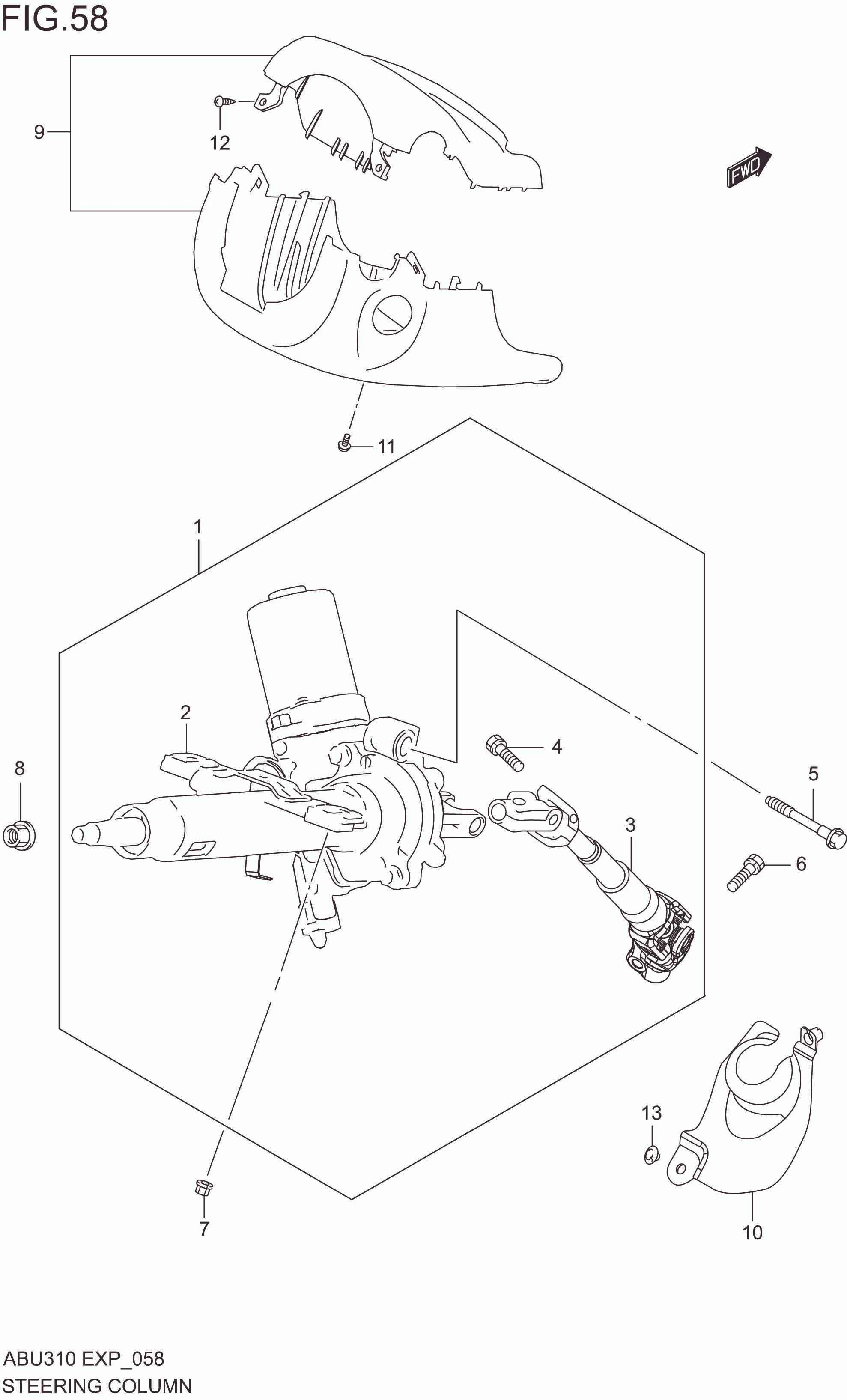

STEERING COLUMN

STEERING COLUMN
No No. Part Description Qty Price Per Pcs Remarks
1 48200M62S30-000 COLUMN ASSY,COLPS STEERING 1 Rp9.919.500
2 48210M62S30-000 .SHAFT ASSY, STRG COLUMN UPPER 1 Rp8.019.000
3 48220M62S20-000 .SHAFT ASSY, STRG COLUMN LOWERR :RHD 1 Rp1.165.000 RHD
4 09117-08107-000 .BOLT 2 Rp22.000
5 48215-74P00-000 BOLT,STEERING COLUMN LOWER 1 Rp36.500
6 09117-08106-000 BOLT 1 Rp23.500
7 08316-1008A-000 NUT 2 Rp3.500
8 08316-1012A-000 NUT 1 Rp6.500
9 48400M62S00-5PK COVER ASSY,STEERING COLUMN 1 Rp146.000
10 48481M62S00-000 COVER,STEERING JOINT R :RHD 1 Rp24.000 RHD
11 09136M05030-000 SCREW 1 Rp4.500
12 03211M0512A-000 SCREW 2 Rp4.500
13 09148M05L11-000 CLIP 1 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
