S-Presso MC

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT SUSPENSIONFRONT DRIVE SHAFT(MT)FRONT DRIVE SHAFT(AGS)FRONT SUSPENSION FRAMEREAR SUSPENSIONROAD WHEEL/TIRE(K10B:DX,K10C)STEERING WHEELSTEERING COLUMNSTEERING UNITPEDAL/PEDAL BRACKET(5MT:RHD)PEDAL/PEDAL BRACKET(5AGS)BRAKE MASTER CYLINDER(RHD)BRAKE PIPING(RHD)ANTI LOCK BRAKE SYSTEMFRONT WHEEL BRAKEREAR WHEEL BRAKEPARKING BRAKEFRONT HOOD PANEL (RHD)

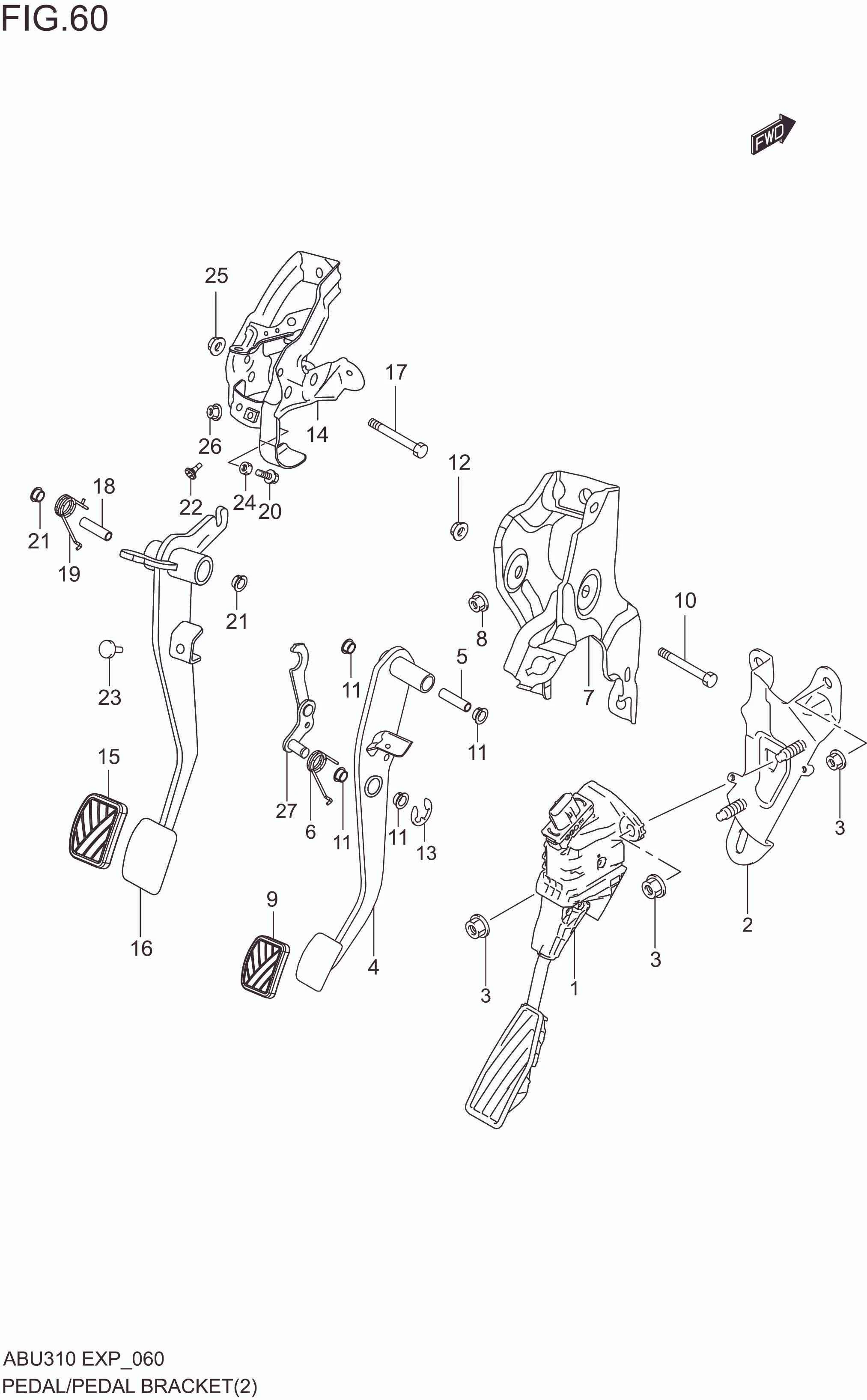

PEDAL/PEDAL BRACKET(5MT:RHD)

PEDAL/PEDAL BRACKET(5MT:RHD)
No No. Part Description Qty Price Per Pcs Remarks
1 49400M62S00-000 PEDAL ASSY,ACCELERATOR 1 Rp744.500
2 49511M62S00-000 BRACKET,ACCELERATOR PEDAL 1 Rp57.000
3 09159-08127-000 NUT 5 Rp11.000
4 49610M62S00-000 PEDAL ,BRAKE 1 Rp175.000
5 49671M74P00-000 SPACER,BRAKE PEDAL SHAFT 1 Rp10.500
6 49691M73H20-000 SPRING,BRAKE PEDAL RELEASE 1 Rp9.000
7 49710M62S00-000 BRACKET ,BRAKE PEDAL 1 Rp100.000
8 09159-08127-000 NUT 1 Rp11.000
9 49751M58J00-000 PAD,PEDAL 1 Rp9.500
10 09100-10124-000 BOLT 1 Rp19.500
11 09306M13004-000 BUSH 4 Rp11.500
12 08316-1010A-000 NUT 1 Rp3.500
13 08332-1110A-000 E-RING 1 Rp12.500
14 49720M62S00-000 BRACKET,CLUTCH PEDAL 1 Rp111.500
15 49751M58J00-000 PAD,PEDAL 1 Rp9.500
16-1 49810M62S00-000 PEDAL ,CLUTCH R :K10B 1 Rp104.000 K10B
16-2 49810M62S10-000 PEDAL ,CLUTCH R :K10C 1 Rp177.000 K10C
17 09100M06150-000 BOLT 1 Rp4.500
18 49871M80F00-000 SPACER,CLUTCH PEDAL SHAFT 1 Rp8.500
19 49891M80J00-000 SPRING,CLUTCH PEDAL 1 Rp11.000
20 DISCONTINUE
SUB: 09100-10304-000		 BOLT 1 -
21 09306M13004-000 BUSH 2 Rp11.500
22 09321M06026-000 CUSHION 1 Rp4.500
23 09321-06033-000 CUSHION 1 Rp19.000
24 08310-0006A-000 NUT 1 Rp2.500
25 08316-1010A-000 NUT 1 Rp3.500
26 09159-08127-000 NUT 3 Rp11.000
27 49630M62S00-000 LEVER,BRAKE PEDAL 1 Rp40.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
