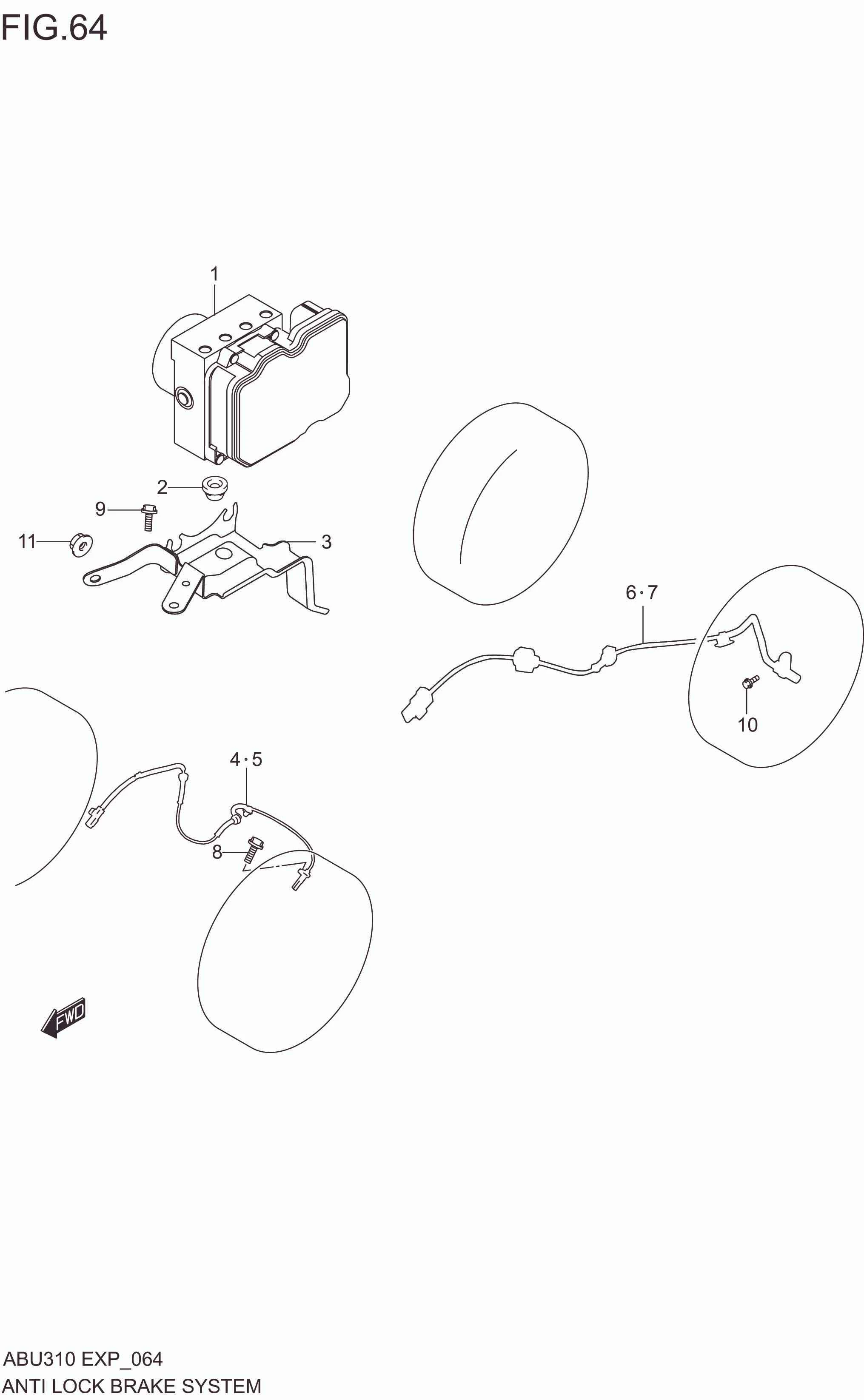

ANTI LOCK BRAKE SYSTEM

ANTI LOCK BRAKE SYSTEM

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	56130M62S01-000 SUB: 56130M62S00-000	ACTUATOR ASSY, ABS R :K10B	1	Rp7.553.500	K10B
1-2	56130M62SA0-000	ACTUATOR ASSY, ESP R :K10C:5MT	1	Rp10.715.000	K10C:5MT
1-3	56130M62SB0-000	ACTUATOR ASSY, ESP R :K10C:5AGS	1	Rp10.719.000	K10C:5AGS
2	56121-58J00-000	DAMPER, ACTUATOR MOUNT R :K10B	1	Rp40.500	K10B
3-1	56161M62S00-000	BRACKET, ABS ACTUATOR R :K10B	1	Rp62.000	K10B
3-2	56160M53TA0-000	BRACKET, ESP ACTUATOR R :K10C	1	Rp82.000	K10C
4-1	56210M62S00-000	SENSOR, FR WHEEL RH R :K10B	1	Rp290.500	K10B
4-2	56210M62S10-000	SENSOR, FR WHEEL RH R :K10C	1	Rp261.000	K10C
5-1	56220M62S00-000	SENSOR, FR WHEEL LH R :K10B	1	Rp290.500	K10B
5-2	56220M62S10-000	SENSOR, FR WHEEL LH R :K10C	1	Rp261.000	K10C
6	56310M62S00-000	SENSOR, RR WHEEL RH	1	Rp268.500
7	56320M62S00-000	SENSOR, RR WHEEL LH	1	Rp268.500
8	01550M0612A-000	BOLT	2	Rp5.000
9	01551-0812A-000	BOLT	1	Rp18.500
10	02162-0616A-000	BOLT	2	Rp3.000
11	08316-1008A-000	NUT	2	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
