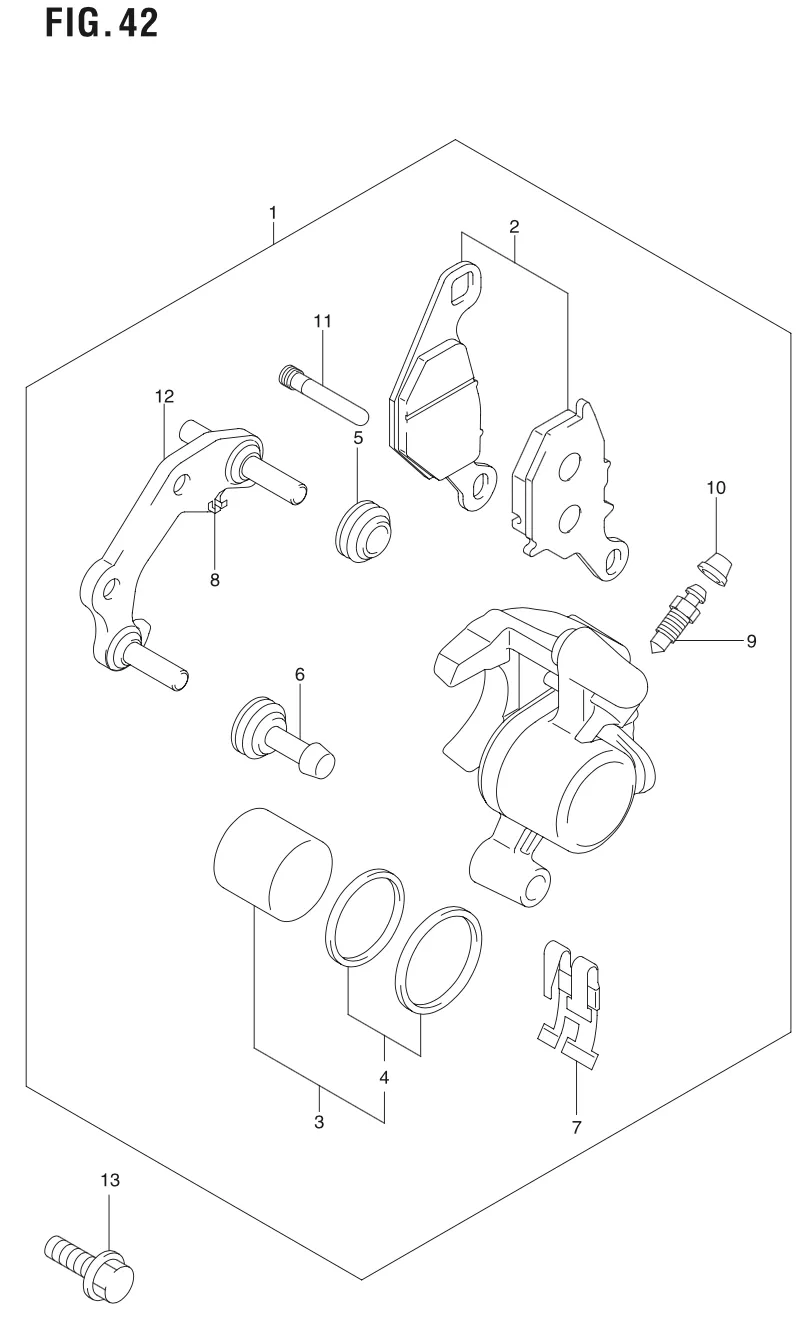

FIG. 42 FRONT CALIPER

FIG. 42 FRONT CALIPER
No No. Part Description Qty Price Per Pcs Remarks
1 59300-09J11-000
SUB: 59300B09J00N000		 CALIPER ASSY,FRONT 1 Rp625.500
2 59101-09810-000
SUB: 59101B09810N000		 ?PAD SET 1 Rp112.000
3 59301-09810-000
SUB: 59301B09810N000		 ?PISTON SET 1 Rp143.500
4 59300-10810-000
SUB: 59300B10810N000		 ??SEAL SET 1 Rp65.000
5 59312-09J00-000
SUB: 59312B09J00N000		 ?BOOT 1 Rp10.500
6 59313-09J00-000
SUB: 59313B09J00N000		 ?BUSH 1 Rp10.500
7 59315-09J00-000
SUB: 59315B09J00N000		 ?SPRING 1 Rp18.000
8 59316-09J00-000
SUB: 59316B09J00N000		 ?STOPPER 1 Rp11.000
9 59321-09J00-000
SUB: 59321B09J00N000		 ?BLEEDER 1 Rp14.500
10 59322-09J00-000
SUB: 59322B09J00N000		 ?CAP 1 Rp16.500
11 59335-09J01-000
SUB: 59335B09J00N000		 ?PIN 1 Rp20.000
12 59350-09J00-000
SUB: 59350B09J00N000		 ?CARRIER 1 Rp77.500
13 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
