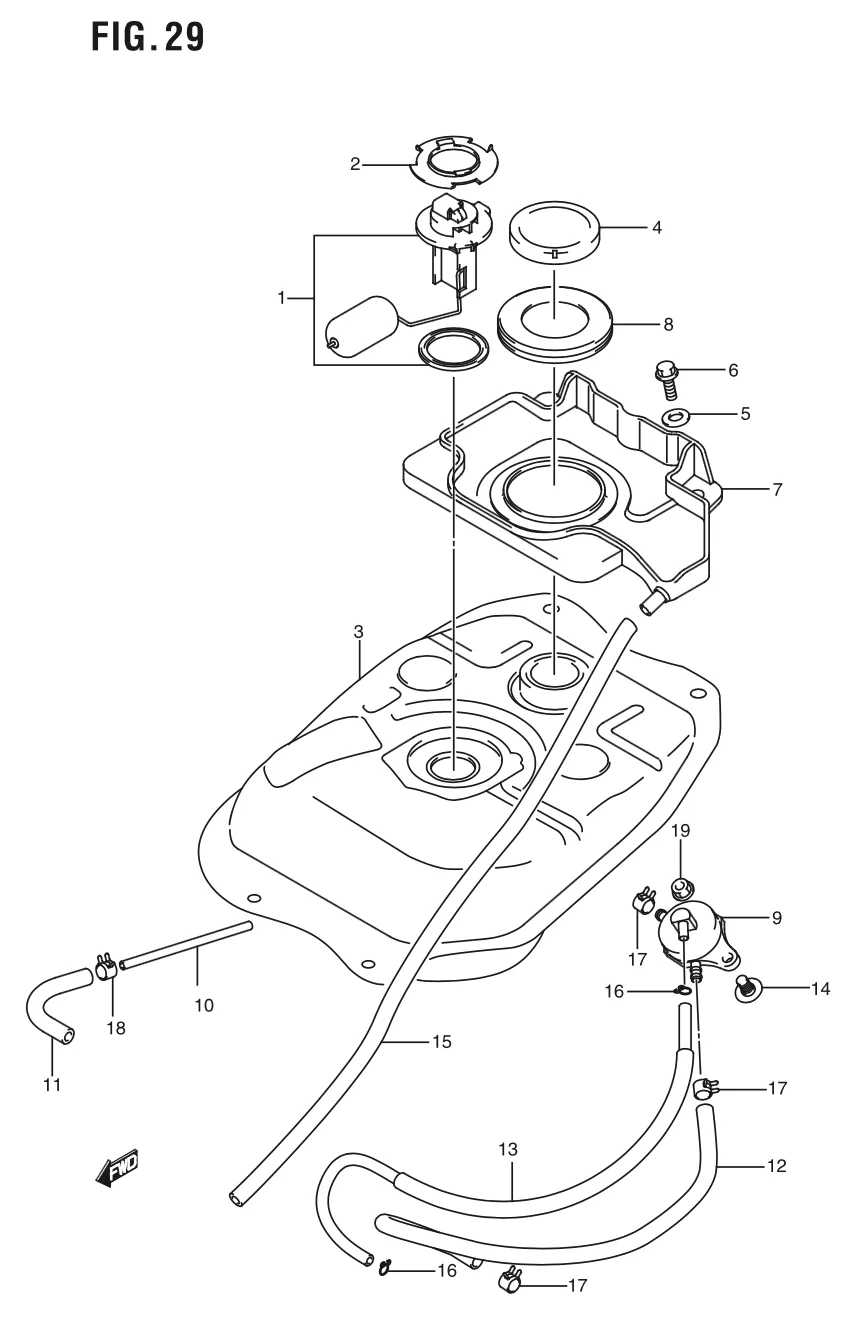

FIG. 29 FUEL TANK

FIG. 29 FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 34810-09J00-000
SUB: 34810B09J00N000		 GAUGE ASSY, FUEL LEVEL SENDER 1 Rp97.500
2 34886-03A00-000 PLATE, FUEL LEVEL SENDER GAUGE 1 Rp8.000
3 44110-09J00-000
SUB: 44110B09J00N000		 TANK, FUEL 1 Rp390.000
4 44210-09J00-000
SUB: 44210B09J00N000		 CAP, FUEL TANK FILLER 1 Rp19.500
5 44549-09J00-000
SUB: 44549B09J00N000		 WASHER, FUEL TANK REAR 2 Rp4.500
6 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 2 Rp3.500
7 44261-09J00-000
SUB: 44261B09J00N000		 TRAY, FUEL TANK INLET 1 Rp28.500
8 44261-41H10-000
SUB: 44261B41H10N000		 RUBBER, FUEL TANK INLET 1 Rp5.500
9 44300-09G00-000
SUB: 44300B09G00N000		 COCK ASSY, FUEL 1 Rp278.000
10 DISCONTINUE
SUB: 44322B09J00N000		 FILTER, FUEL 1 -
11 DISCONTINUE
SUB: 44421B09J00N000		 HOSE, FUEL NO.1 1 -
12 DISCONTINUE
SUB: 44424B09J00N000		 HOSE, FUEL NO.3 1 -
13 DISCONTINUE
SUB: 44425B09J00N000		 HOSE, VACUUM 1 -
14 09111-06102-000
SUB: 09111B06102N000		 BOLT (6X14.8) 1 Rp3.500
15 09352-70120-760
SUB: 09352B70113N760		 HOSE (7X11X2000) 1 Rp26.500 L:2000->760
16 09401-06101-000
SUB: 09401B06101N000		 CLIP 2 Rp2.000
17 09401-09403-000
SUB: 09401B09403N000		 CLIP 3 Rp3.500
18 09401-11413-000
SUB: 09401B11413N000		 CLIP 1 Rp2.500
19 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
