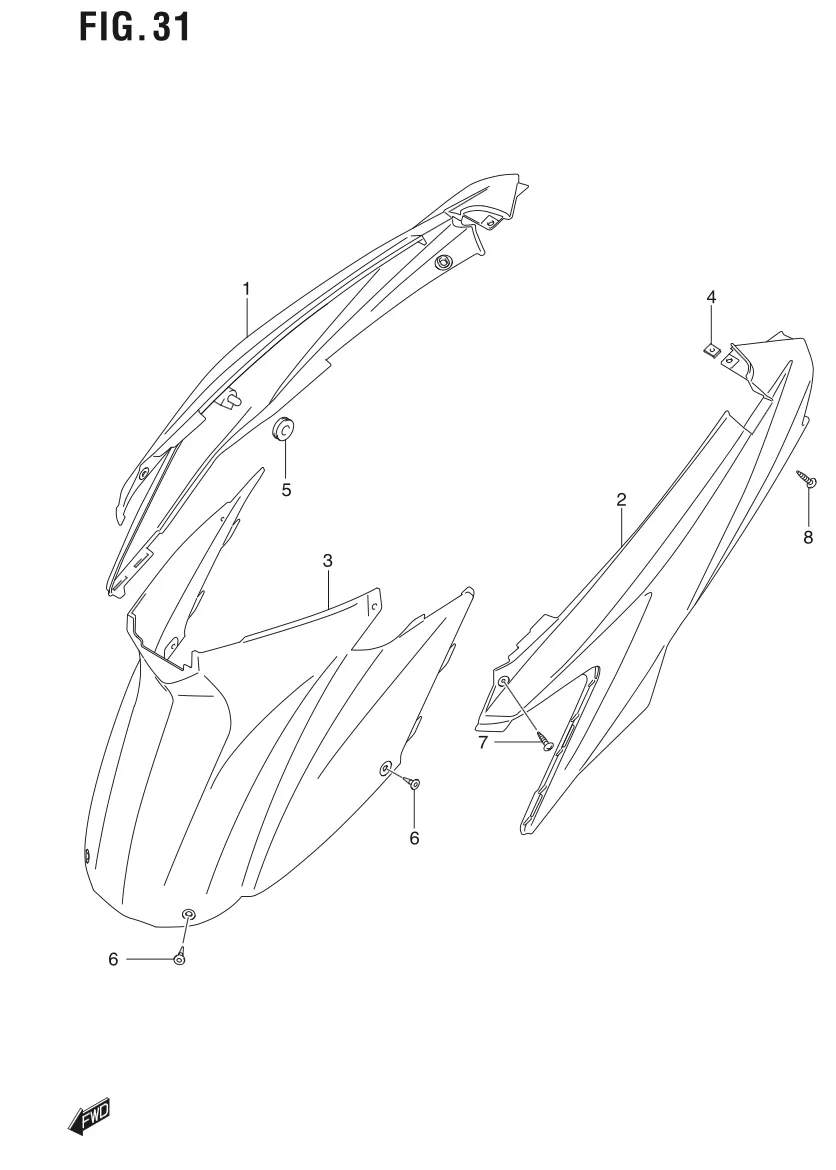

FIG. 31 FRAME COVER

FIG. 31 FRAME COVER
No No. Part Description Qty Price Per Pcs Remarks
1 47111B09J00N000 COVER, FRAME RH 1 -
2 47211B09J00N000 COVER, FRAME LH 1 -
3 47131B09J00N000 COVER, FRAME FRONT 1 -
4 09148-04L01-000
SUB: 09148B04L01N000		 NUT 2 Rp9.000
5 48169-12JA0-000
SUB: 09320B08018N000		 CUSHION 2 Rp15.000
6 09409-06314-5PK
SUB: 09409B06314N5PK		 CLIP (BLACK) 4 Rp3.500
7 03541-0416A-000
SUB: 03541B0416AN000		 SCREW 2 Rp3.500
8 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
