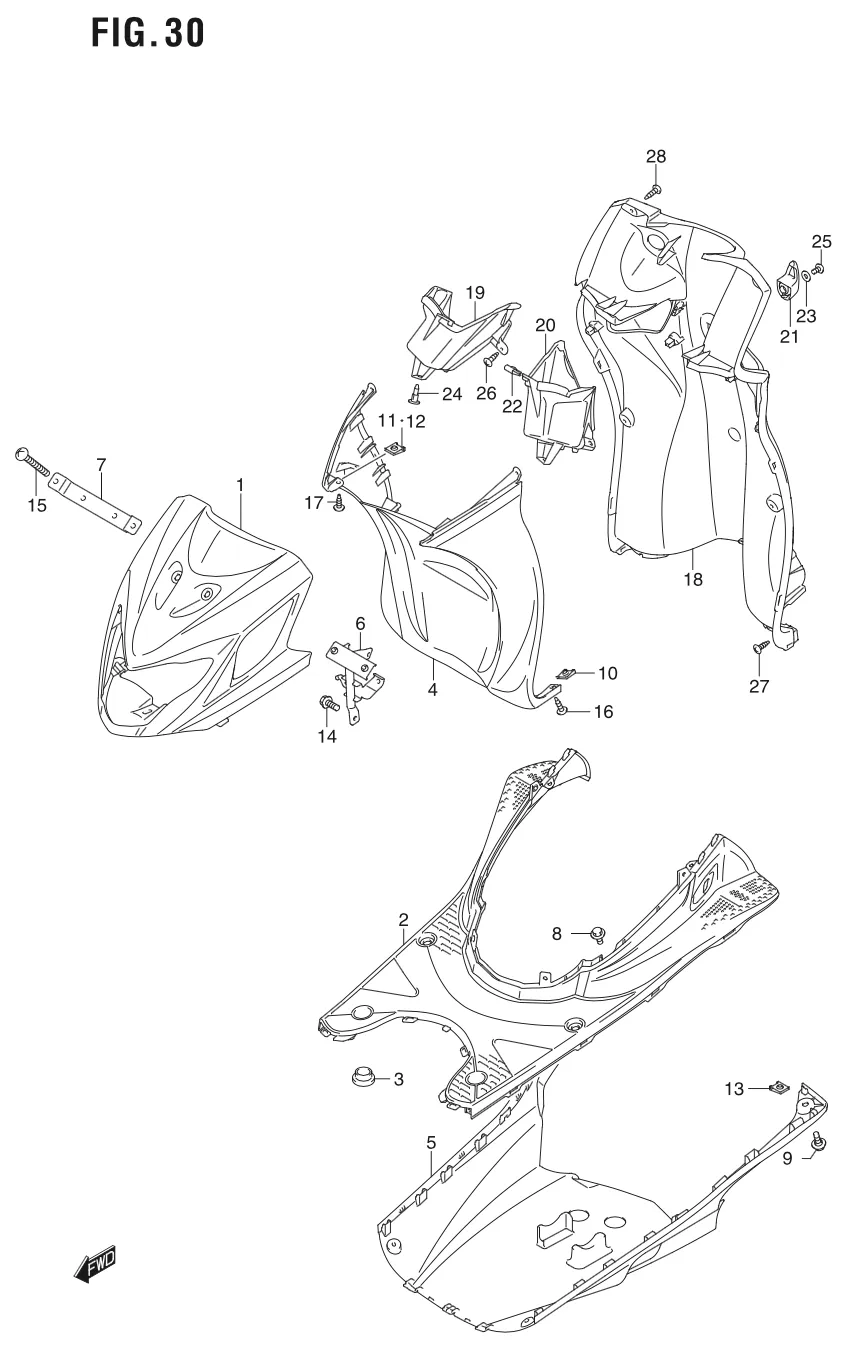

FIG. 30 LEG SHIELD

FIG. 30 LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1 48111B09J00N000 SHIELD, LEG FRONT 1 -
2 48121B09J00N000 SHIELD, LEG REAR 1 -
3 48127-09J00-000
SUB: 48127B09J00N000		 CUSHION 1 Rp4.000
4 48137B09J00N000 SHIELD, LEG LOWER FRONT 1 -
5 48138B09J00N000 SHIELD, LEG LOWER REAR 1 -
6 48150-09J10-000
SUB: 48150B09J00N000		 BRACE, LEG SHIELD 1 Rp26.000
7 48190-09J00-000
SUB: 48190B09J00N000		 PLATE, FRONT LICENSE 1 Rp21.000
8 09111-06102-000
SUB: 09111B06102N000		 BOLT (6X14.8) 4 Rp3.500
9 09111-06102-000
SUB: 09111B06102N000		 BOLT (6X14.8) 2 Rp3.500
10 09148-04L01-000
SUB: 09148B04L01N000		 NUT 2 Rp9.000
11 09148-04L01-000
SUB: 09148B04L01N000		 NUT 2 Rp9.000
12 09148-04L01-000
SUB: 09148B04L01N000		 NUT 2 Rp9.000
13 09148-06017-000
SUB: 09148B06017N000		 NUT 2 Rp15.500
14 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -
15 02142-0635A-000
SUB: 02142B0635AN000		 SCREW 2 Rp6.500
16 03541-0416B-000
SUB: 03541B0416BN000		 SCREW 2 Rp4.500
17 03541-0416B-000
SUB: 03541B0416BN000		 SCREW 2 Rp4.500
18 92111B09J00N000 COVER, LEG SHIELD 1 -
19 92161B09J00N000 RACK, INNER RH 1 -
20 92162B09J00N000 RACK, INNER LH 1 -
21 92171-32G00-291
SUB: 92171B32G00N000		 HOOK, LEG SHIELD 1 Rp15.500
22 09148-04L01-000
SUB: 09148B04L01N000		 NUT 2 Rp9.000
23 09160-06153-000
SUB: 09160B06153N000		 WASHER (6.5X16X1.2) 1 Rp5.500
24 09409-06314-5PK
SUB: 09409B06314N5PK		 CLIP (BLACK) 2 Rp3.500
25 02142-0612A-000
SUB: 02142B0612BN000		 SCREW 1 Rp4.000
26 03541-0416A-000
SUB: 03541B0416AN000		 SCREW 6 Rp3.500
27 03541-0416A-000
SUB: 03541B0416AN000		 SCREW 2 Rp3.500
28 03541-0416B-000
SUB: 03541B0416BN000		 SCREW 6 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
