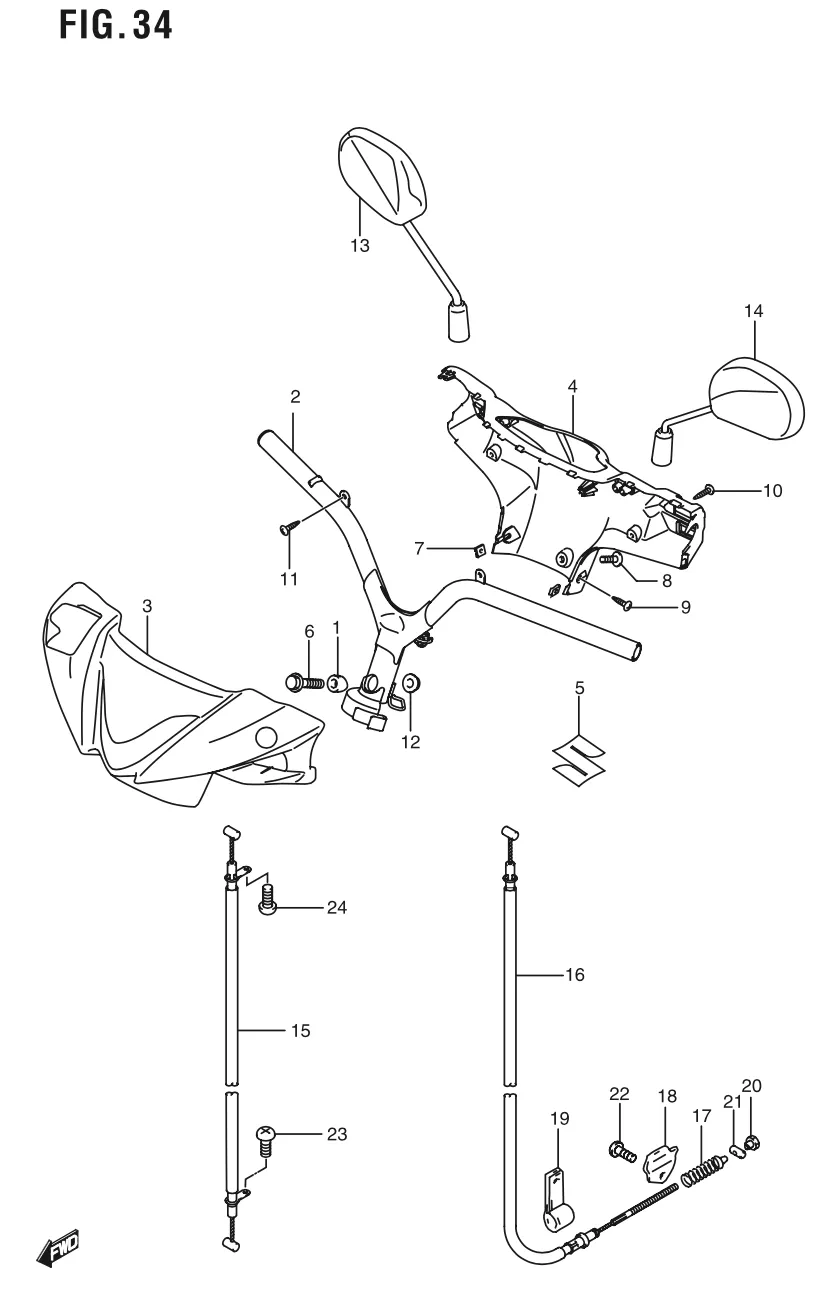

FIG. 34 HANDLE BAR

FIG. 34 HANDLE BAR
No No. Part Description Qty Price Per Pcs Remarks
1 51358-09G00-000
SUB: 51358B09G00N000		 STOPPER, HANDLEBAR 1 Rp8.000
2 56110-09J00-000
SUB: 56110B09J00N000		 HANDLEBAR 1 Rp153.000
3 56311B09J00N000 COVER, HANDLE FRONT 1 -
4 56321B09J00N000 COVER, HANDLE REAR 1 -
5 68281B13HA0N000 EMBLEM, "S" 1 -
6 09103-10126-000
SUB: 09103B10126N000		 BOLT (10X48) 1 Rp28.500
7 09148-04019-000
SUB: 09148B04019N000		 NUT 2 Rp6.500
8 02142-0512B-000
SUB: 02142B0512BN000		 SCREW 1 Rp5.500
9 03541-0416B-000
SUB: 03541B0416BN000		 SCREW 2 Rp4.500
10 03541-0416B-000
SUB: 03541B0416BN000		 SCREW 2 Rp4.500
11 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
12 08319-3110A-000
SUB: 08319B3110AN000		 NUT 1 Rp4.500
13 56500-09J12-000
SUB: 56500B09J10N000		 MIRROR ASSY, REAR VIEW RH 1 Rp82.000
14 56600-09J12-000
SUB: 56600B09J10N000		 MIRROR ASSY, REAR VIEW LH 1 Rp82.000
15 58300-09J11-000
SUB: 58300B09J10N000		 CABLE ASSY, THROTTLE 1 Rp127.000
16 58510-09J10-000
SUB: 58510B09J10N000		 CABLE, REAR BRAKE 1 Rp79.500
17 58562-09J00-000
SUB: 58562B09J00N000		 SPRING, REAR BRAKE CABLE 1 Rp3.000
18 58575-09J00-000
SUB: 58575B09J00N000		 PLATE, REAR BRAKE CABLE 1 Rp3.500
19 DISCONTINUE
SUB: 58577B46G30N000		 CLAMP, RR BK CABLE CRKC FR 1 -
20 09150-06010-000
SUB: 09150B06010N000		 NUT 1 Rp4.500
21 09209-11002-000
SUB: 09209B11002N000		 PIN (11X18) 1 Rp7.500
22 01547-0610A-000
SUB: 01547B0610AN000		 BOLT 1 Rp3.000
23 DISCONTINUE
SUB: 02112B0510AN000		 SCREW 1 -
24 02112-0512A-000
SUB: 02112B0512AN000		 SCREW 1 Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
