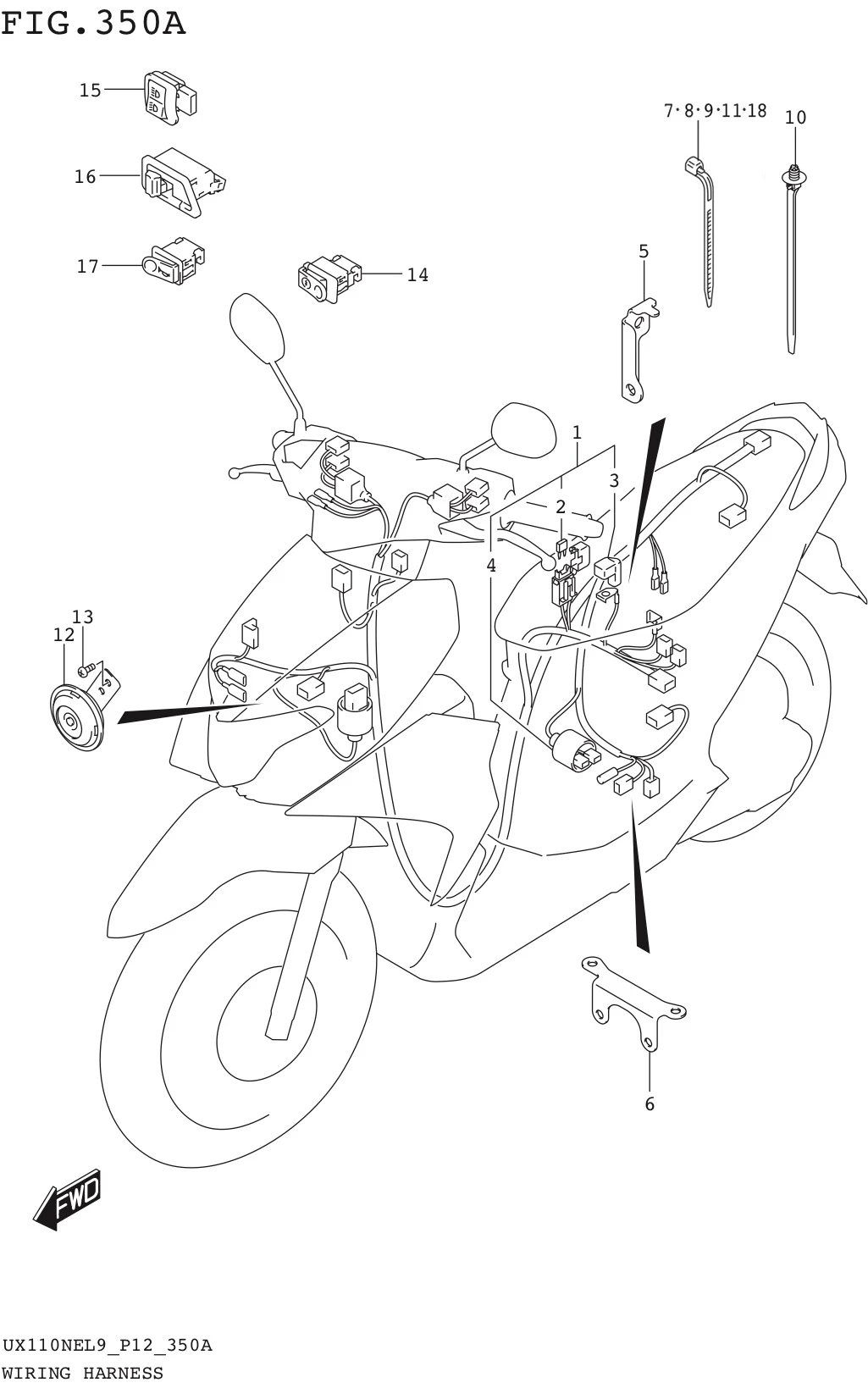

Electrical - Suzuki Spare Part

Ubah pencarian

Atau cari dengan

Preview Engine Transmission Electrical Suspension Body

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	36610-49K01-000 SUB: 36610-49K00-000	HARNESS, WIRING	1	Rp938.000
2	09481-15501-000	.FUSE (15A)	2	Rp12.000
3	33624-09J00-000	.CAP, BATTERY PLUS TERMINAL	1	Rp11.500
4	36618-09J10-000	.BOOT, WIRING HARNESS	1	Rp7.500
5	36672-49K00-000	BRACKET, HARNESS	1	Rp5.000
6	36672-49K10-000	BRACKET, LEAD WIRE	1	Rp8.000
7	36990-25G00-000	CLAMP	1	Rp13.000
8	36990-25G20-000	CLAMP	2	Rp9.500
9	36990-25G00-000	CLAMP (L:125)	2	Rp13.000
10	09407-17403-000	CLAMP (L:154)	2	Rp3.500
11	DISCONTINUE SUB: 09407B25401N000	CLAMP (L:190)	1	-
12	38500-25G20-000 SUB: 38500B25G20N000	HORN ASSY	1	Rp55.000
13	02142-0610A-000	SCREW	1	Rp3.500
14	37310-49K01-000 SUB: 37310-49K00-000	SWITCH ASSY, STARTER	1	Rp23.500
15-1	37420-09G21-000 SUB: 37420B09G21N000	SWITCH ASSY, DIMMER	1	Rp20.500	MINDA
15-2	37420-10E10-000 SUB: 37420B10E10N000	SWITCH ASSY, DIMMER	1	Rp19.500	TOYO DENSO
16	37510-40J01-000 SUB: 37510-40J00-000	SWITCH ASSY, TURNSIGNAL	1	Rp23.000
17	37520-49K01-000 SUB: 37520-49K00-000	SWITCH ASSY, HORN	1	Rp24.000
18	09407-14407-000	CLAMP (L:145)	1	Rp18.500
