  5. FIG. 330A SPEEDOMETER

NEX II

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 301A STARTING MOTORFIG. 303A MAGNETOFIG. 310A BATTERYFIG. 312A ELECTRICALFIG. 330A SPEEDOMETERFIG. 333A HEADLAMPFIG. 339A REAR COMBINATION LAMPFIG. 350A WIRING HARNESSFIG. 352A LOCK SET

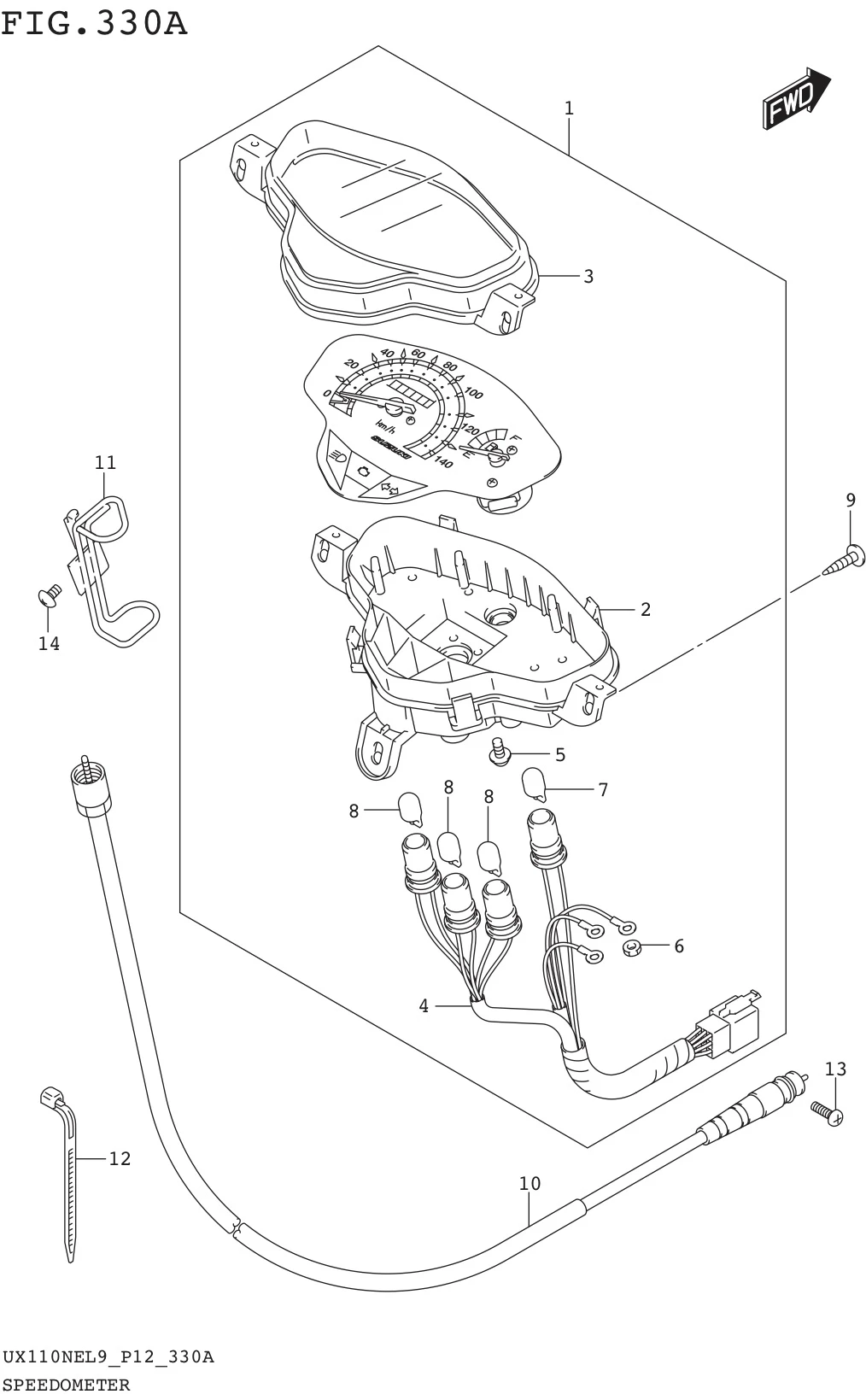

FIG. 330A SPEEDOMETER

FIG. 330A SPEEDOMETER
No No. Part Description Qty Price Per Pcs Remarks
1 34100-49K00-000 SPEEDOMETER ASSY 1 Rp210.000
2 34111-09J10-000
SUB: 34111B09J10N000		 .CASE 1 Rp25.000
3 34150-09J00-000
SUB: 34150B09J00N000		 .LENS 1 Rp25.000
4 34173-09J10-000
SUB: 34173B09J10N000		 .SOCKET 1 Rp32.500
5 34186-09J00-000
SUB: 34186B09J00N000		 .SCREW 2 Rp3.000
6 34382-09J00-000
SUB: 34382B09J00N000		 .NUT 3 Rp3.000
7 09471-12134-000 .BULB (12V1.7W) 1 Rp33.500
8 09471-12077-000 .BULB (12V1.7W,T10,WB121) 3 Rp6.000
9 03541-0516A-000 SCREW 3 Rp3.500
10 34910-45H70-000 CABLE ASSY, SPEEDOMETER 1 Rp43.000
11 34930-09J10-000 GUIDE, SPEEDOMETER CABLE 1 Rp10.500
12 36990-25G00-000
SUB: 36990B25G00N000		 CLAMP 1 Rp13.000
13 02112-0516A-000 SCREW 1 Rp5.500
14 02142-0612A-000 SCREW 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
