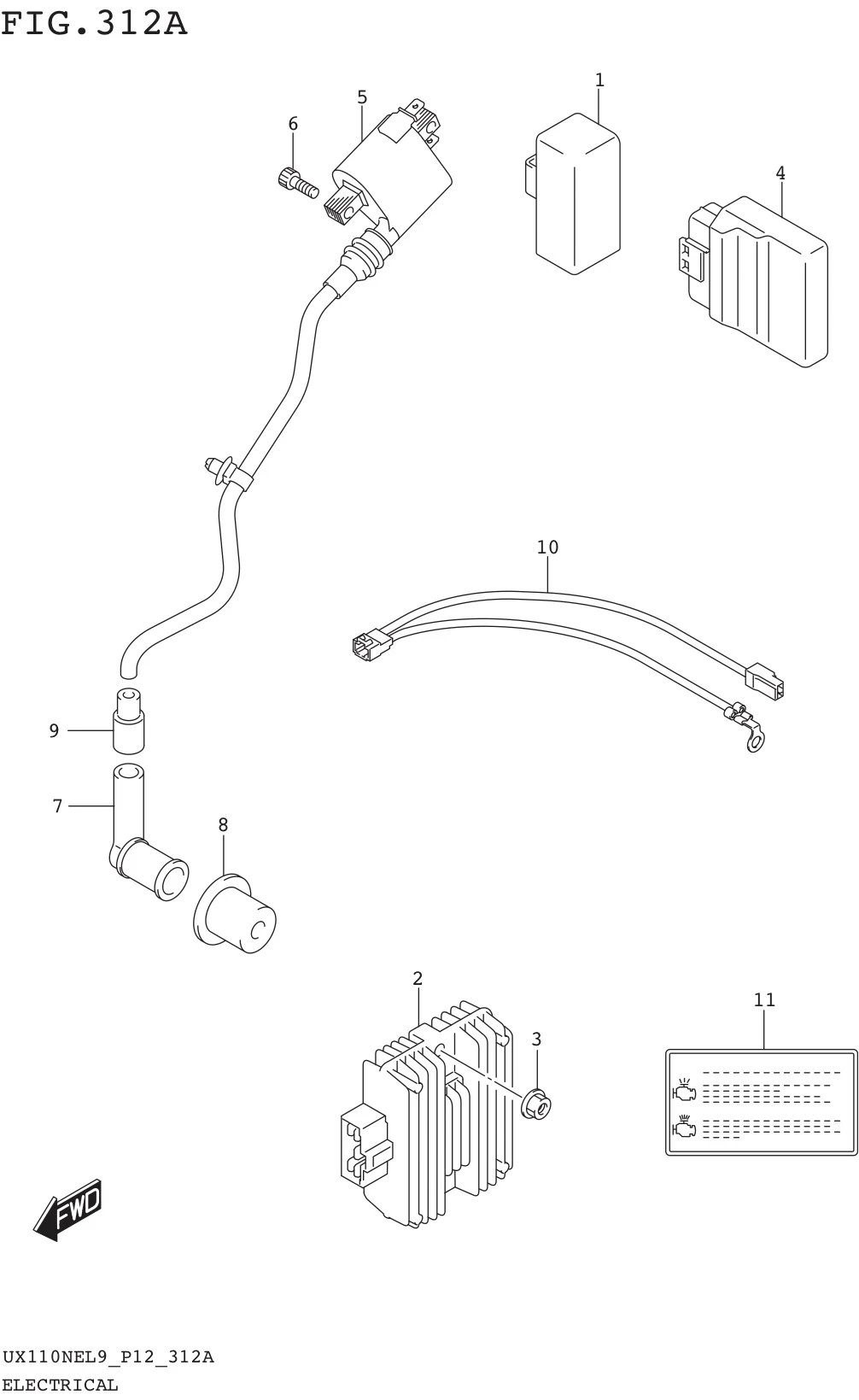

FIG. 312A ELECTRICAL

FIG. 312A ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 31800-16H00-000 RELAY ASSY, STARTING MOTOR 1 Rp64.500
2 32800-34J01-000 RECTIFIER ASSY 1 Rp147.000
3 08316-1006A-000 NUT 2 Rp2.000
4 32920-49K00-000 CONTROL UNIT, FI 1 Rp851.500
5 33410-49K00-000 COIL ASSY, IGNITION 1 Rp79.000
6 07130-0620A-000 BOLT 2 Rp16.500
7 33510-09J00-000 CAP, SPARK PLUG 1 Rp20.000
8 33541-09J00-000 SEAL, SPARK PLUG 1 Rp11.000
9 33542-09J00-000 SEAL, HIGH TENSION CORD 1 Rp5.000
10 33810-09J00-000 WIRE, STARTER MOTOR 1 Rp19.500
11 32929-09J30-000 LABEL, MIL LAMP 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
