NEX II

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 301A STARTING MOTORFIG. 303A MAGNETOFIG. 310A BATTERYFIG. 312A ELECTRICALFIG. 330A SPEEDOMETERFIG. 333A HEADLAMPFIG. 339A REAR COMBINATION LAMPFIG. 350A WIRING HARNESSFIG. 352A LOCK SET

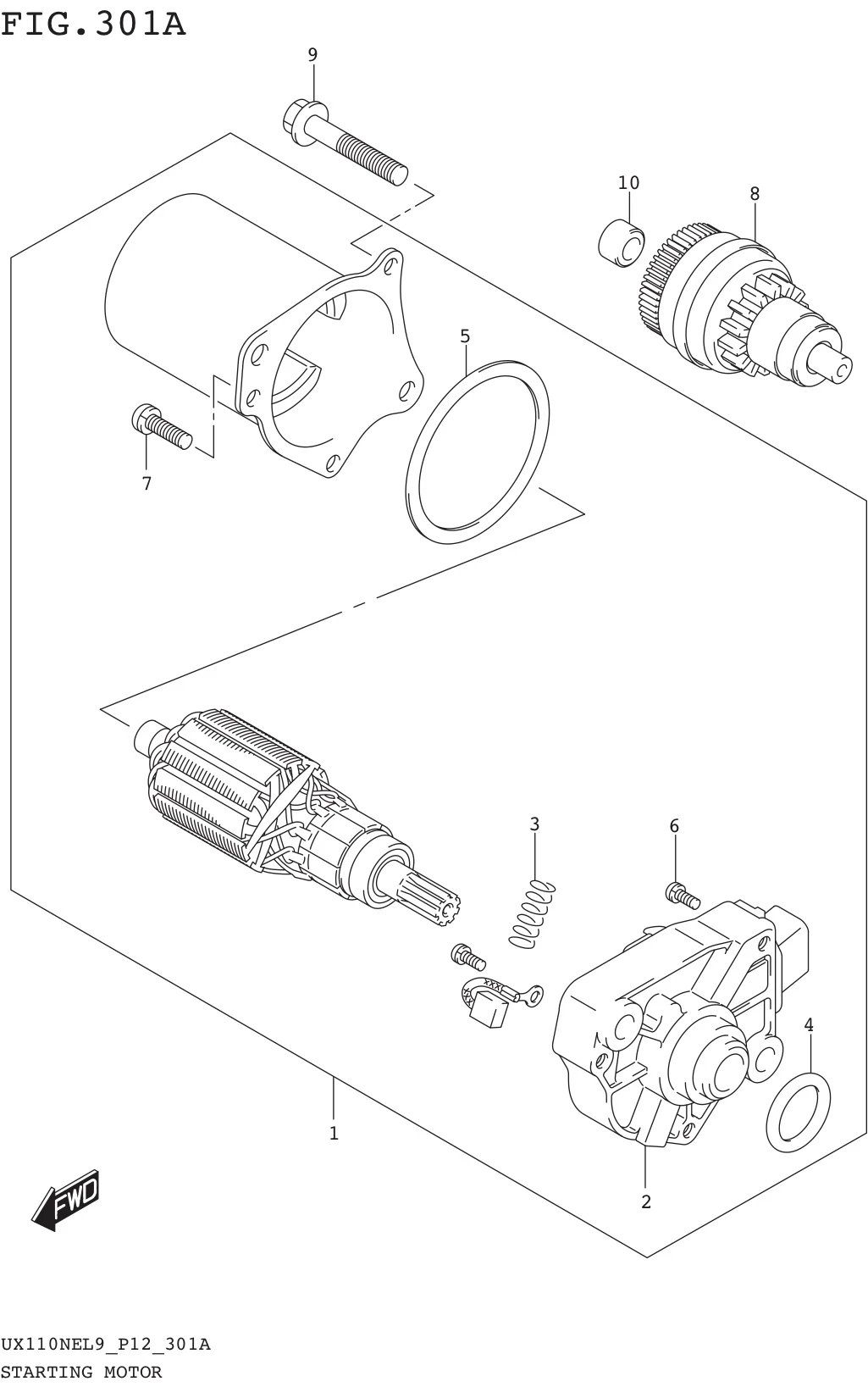

FIG. 301A STARTING MOTOR

FIG. 301A STARTING MOTOR
No No. Part Description Qty Price Per Pcs Remarks
1 31100-09J01-000 MOTOR ASSY, STARTING 1 Rp271.500
2 31130-32G00-000 .HOLDER ASSY, STARTING 1 Rp70.500
3 31135-19D00-000 .SPRING 1 Rp4.500
4 31156-32G00-000 .O RING 1 Rp9.000
5 31157-32G00-000 .GASKET 1 Rp6.500
6 02112-3406A-000 .SCREW 1 Rp11.500
7 02112-3516A-000 .SCREW 3 Rp39.500
8 31370-32G01-000
SUB: 31370-32G00-000		 PINION ASSY, STARTING MOTOR 1 Rp253.000
9 01547-0630A-000 BOLT 2 Rp6.500
10 11325-09J00-000 BUSH, STARTER IDLE SHAFT 1 Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
