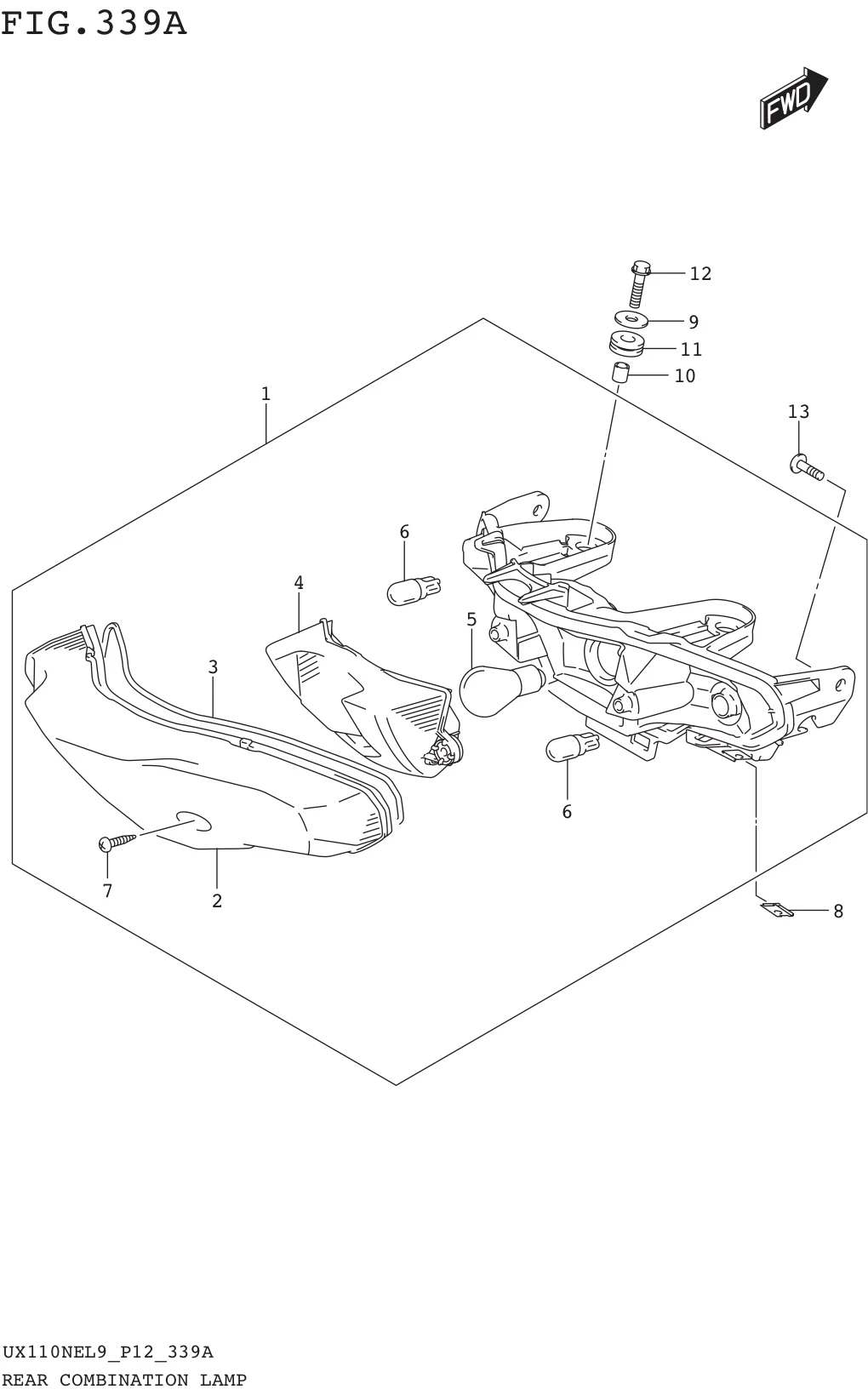

FIG. 339A REAR COMBINATION LAMP

FIG. 339A REAR COMBINATION LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35710-49K00-000 LAMP ASSY, REAR COMBINATION 1 Rp251.000
2 35712-49K00-000 .LENS 1 Rp83.500
3 35713-49K00-000 .GASKET LENS 1 Rp18.500
4 35719-49K00-000 .INNER LENS 1 Rp62.500
5 09471-12127-000
SUB: 09471-12127L000		 .BULB (12V18/5W) 1 Rp12.500
6 09471-12114AS01 .BULB (12V10W) 2 Rp14.000
7 03211-0412A-000 .SCREW 7 Rp11.500
8 09148-04019-000
SUB: 09148B04019N000		 NUT 2 Rp6.500
9 09160-06028-000 WASHER (6.5X18X1) 2 Rp3.500
10 09180-06350-000
SUB: 09180B06350N000		 SPACER (6.5X9X9.5) 2 Rp5.000
11 09320-09016-000 CUSHION 2 Rp4.000
12 01547-0620B-000
SUB: 01547B0620AN000		 BOLT 2 Rp6.500
13 03541-0416A-000 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
