New Ignis

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.35 ENGINE ELECTRICALFIG.36 STARTING MOTORFIG.37 GENERATORFIG.38 BATTERYFIG.39 SPEEDOMETERFIG.40 HEAD LAMP(W/HALOGEN)FIG.41 HEAD LAMP(W/LED)FIG.42 FRONTFOG LAMP (W/FRONT FOG LAMP)FIG.43 REAR LAMPFIG.44 ROOM LAMPFIG.45 WIRING HARNESSFIG.46 ELECTRICAL CONTROL BODYFIG.47 ELECTRICAL CONTROL INSTRUMENTAL PANELFIG.48 LOCK SET (GL;5AGS:GLX)FIG.49 LOCK SET (5MT:GLX)FIG.50 FRONT WINDOW WIPERFIG.51 WINDOW WASHERFIG.52 REAR WINDOW WIPERFIG.53 AUDIO

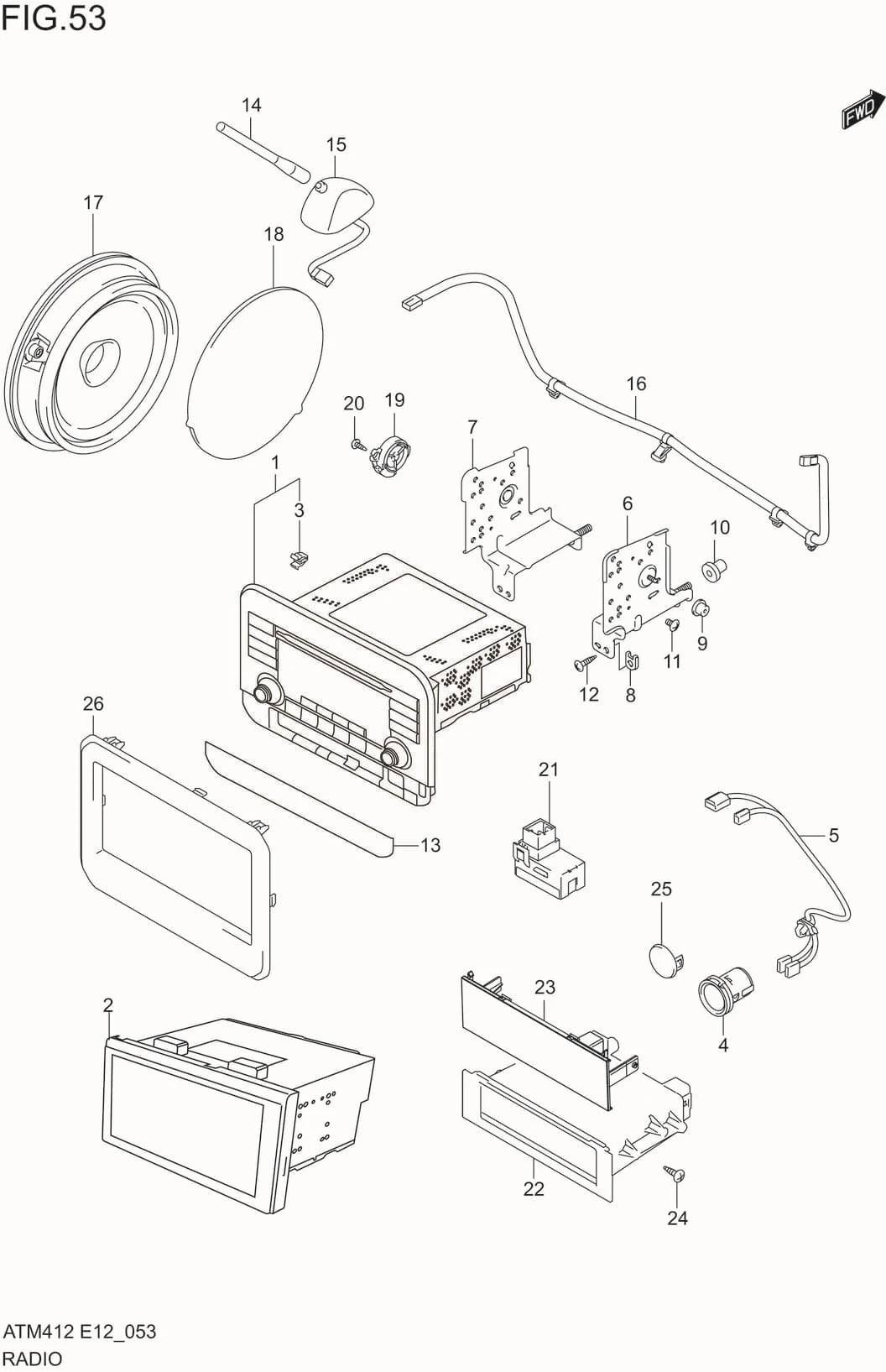

FIG.53 AUDIO

FIG.53 AUDIO
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 39101M66R62-BKZ		 TUNER ASSY 1 -
1-1 39101M66R42-BKZ
SUB: 39101M66R41-BKZ		 TUNER ASSY 1 Rp7.004.500
2 990H0-990AE-028 HEAD UNIT TOUCH SCREEN 6.8 SET 1 Rp3.065.000
3 09409-08349-000 .CLIP 4 Rp4.500
4 39105M66R00-5PK SOCKET, USB & AUX 1 Rp136.500
5 39106M66R00-000 CABLE, USB & AUX 1 Rp292.000
6 39321M66R00-000 BRACKET, TUNER RH 1 Rp28.500
7 39322M66R00-000 BRACKET, TUNER LH 1 Rp28.500
8 09148M05L04-000 NUT 2 Rp5.000
9 34955M54G10-000 BUSH,TUNER BRACKET 2 Rp6.500
10 34955M79M00-000 BUSH,TUNER BRACKET 2 Rp18.500
11 02142-0508A-000
SUB: 02142B0508AN000		 SCREW 6 Rp3.500
12 03541-0516A-000 SCREW 4 Rp3.500
13 39163M66R00-ZCA PLATE,TUNER FACE 1 Rp176.500
14 39251M74LA0-000
SUB: 39251M74L00-000		 ROD, ANTENNA 1 Rp97.500
15 39253M66RA0-000
SUB: 39253M66R00-000		 BASE, ANTENNA 1 Rp696.500
16-1 39270M66R00-000 FEEDER, ANT I/P 1 Rp219.500
16-2 39102M74LA1-000 SPEAKER ASSY 2 Rp504.500
17 39102M74LA1-000 SPEAKER ASSY 4 Rp504.500
18 39112M74L00-000 SPEAKER,SEAL 2 Rp37.500
19 39102M65M00-000 SPEAKER ASSY, TWEETER 2 Rp227.500
20 03541-0410A-000 SCREW 4 Rp11.000
21 39813M66R00-000 MIC ASSY,HANDS FREE 1 Rp433.500
22 39182M66R00-000 POCKET,TUNER 1 Rp56.500
23 39161M83K01-000 COVER,RADIO HOLE 1 Rp18.000
24 03241M0512A-000 SCREW 1 Rp4.000
25 37275-75J00-000
SUB: 37275B75J00N000		 CAP,USB HOLE 1 Rp11.000
26 73821-62R00-5PK GARNISH, CENTER LOWER(BLACK) 1 Rp128.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
