  5. FIG.45 WIRING HARNESS

New Ignis

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.35 ENGINE ELECTRICALFIG.36 STARTING MOTORFIG.37 GENERATORFIG.38 BATTERYFIG.39 SPEEDOMETERFIG.40 HEAD LAMP(W/HALOGEN)FIG.41 HEAD LAMP(W/LED)FIG.42 FRONTFOG LAMP (W/FRONT FOG LAMP)FIG.43 REAR LAMPFIG.44 ROOM LAMPFIG.45 WIRING HARNESSFIG.46 ELECTRICAL CONTROL BODYFIG.47 ELECTRICAL CONTROL INSTRUMENTAL PANELFIG.48 LOCK SET (GL;5AGS:GLX)FIG.49 LOCK SET (5MT:GLX)FIG.50 FRONT WINDOW WIPERFIG.51 WINDOW WASHERFIG.52 REAR WINDOW WIPERFIG.53 AUDIO

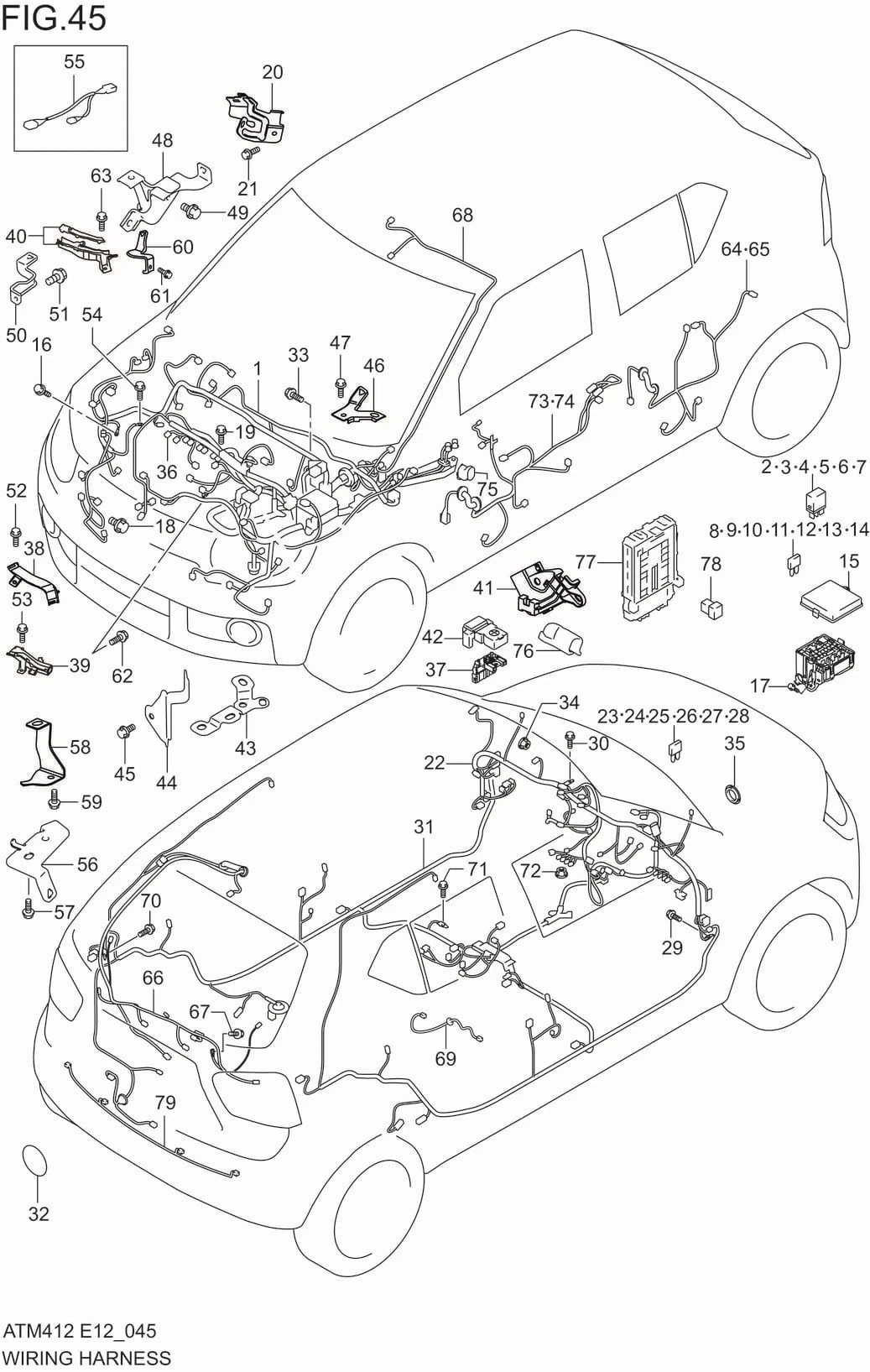

FIG.45 WIRING HARNESS

FIG.45 WIRING HARNESS
No No. Part Description Qty Price Per Pcs Remarks
1-1 36610M66R80-000 HARNESS ASSY, MAIN 1 Rp5.868.000
1-2 36610M66R90-000 HARNESS ASSY, MAIN 1 Rp6.005.000
1-3 36610M66RA0-000 HARNESS ASSY, MAIN 1 Rp5.868.000
1-4 36610M66RL0-000 HARNESS ASSY, MAIN 1 Rp6.160.500
1-5 36610M82S70-000 HARNESS ASSY, MAIN 2 Rp4.810.000
1-6 36610M82S80-000 HARNESS ASSY, MAIN 3 Rp4.800.000
1-7 36610M82SA0-000 HARNESS ASSY, MAIN 4 Rp4.800.000
1-8 36610M82S90-000 HARNESS ASSY, MAIN 5 Rp4.810.000
2 38860M76M00-000 .RELAY ASSY 1 Rp58.500
3 38860M76M00-000 .RELAY ASSY 3 Rp58.500
4 38860M76M00-000 .RELAY ASSY 1 Rp58.500
5 38860M76M00-000 .RELAY ASSY 1 Rp58.500
6 38860M76M00-000 .RELAY ASSY 1 Rp58.500
7 38860M76M00-000 .RELAY ASSY 3 Rp58.500
8 09481-05501-000 .FUSE (05A) 0 Rp17.000
9 09481-10504-000 .FUSE (10A) 0 Rp12.500
10 09481-15504-000 .FUSE (15A) 0 Rp13.000
11 09481-20504-000 .FUSE (20A) 0 Rp14.500
12 09481-25504-000 .FUSE (25A) 0 Rp17.500
13 09481-30504-000 .FUSE (30A) 0 Rp15.000
14 09481M40403-000 .FUSE (40A) 0 Rp22.500
15-1 36717M66R00-000 COVER, RELAY BOX 1 Rp63.000
15-2 36717M82S00-000 COVER, RELAY BOX 1 Rp39.000
16 09115-06005-000 BOLT (6X16),GND 4 Rp14.000
17 02162-0616A-000 BOLT,RELAY BOX 2 Rp3.000
18 02162-0616A-000 BOLT,HARN PROTECTOR 1 Rp3.000
19 01550M0612A-000 BOLT,GND WIRE 1 Rp5.000
20 36614M66R00-000 BRACKET,MAIN HARN 1 Rp20.000
21 02162-0612A-000 BOLT,MAIN HARN BRKT 1 Rp11.000
22-1 36620M66R40-000 HARNESS ASSY, INSTRUMENT PANEL 1 Rp3.355.500
22-2 36620M66RA2-000 HARNESS ASSY, INSTRUMENT PANEL 1 Rp3.279.000
22-3 36620M82S40-000 HARNESS ASSY, INSTRUMENT PANEL 1 Rp2.470.500
22-4 36620M82S50-000 HARNESS ASSY, INSTRUMENT PANEL 1 Rp2.470.500
23 09481-05501-000 .FUSE (05A) 6 Rp17.000
24 09481-10504-000 .FUSE (10A) 5 Rp12.500
25 09481-15504-000 .FUSE (15A) 5 Rp13.000
26 09481-20504-000 .FUSE (20A) 1 Rp14.500
27 09481-25504-000 .FUSE (25A) 1 Rp17.500
28 09481M30402-000 .FUSE (30A) 1 Rp20.500
29 09115-06005-000 BOLT (6X16) 2 Rp14.000
30 02162-0612A-000 BOLT,I/P HARN GND(INSTPN) 1 Rp11.000
31-1 36630M66RA0-000 HARNESS ASSY, FLOOR 1 Rp2.230.000
31-2 36630M82S70-000 HARNESS ASSY, FLOOR 1 Rp1.919.500
31-3 36630M66RS0-000 HARNESS ASSY, FLOOR 1 Rp2.261.500
31-4 36630M82S80-000 HARNESS ASSY, FLOOR 1 Rp2.684.000
31-5 36630M66RE0-000 HARNESS ASSY, FLOOR 1 Rp2.220.000
31-6 36630M82S90-000 HARNESS ASSY, FLOOR 1 Rp2.087.500
31-7 36630M66RC0-000 HARNESS ASSY, FLOOR 1 Rp2.255.000
31-8 36630M82SA0-000 HARNESS ASSY, FLOOR 1 Rp2.437.000
32 DISCONTINUE
SUB: 67627B70000N000		 SEAL,HARNESS HOLE 0 -
33 09115-06005-000 BOLT (6X16) 2 Rp14.000
34 09159-08127-000 NUT,J/B 2 Rp11.000
35 09250-35005-000 CAP,HARN HOLE FLOOR 1 Rp27.000
36-1 36650M66R00-000 HARNESS ASSY, ENGINE 1 Rp4.681.000
36-2 36650M66R21-000
SUB: 36650M66R20-000		 HARNESS ASSY, ENGINE 1 Rp4.681.000
37 36739M66R00-000 .FUSE, BATTERY 1 Rp338.500
38 36677M68P20-000 .PROTECTOR,ENG HARN 1 Rp97.000
39 36677M68P40-000 .PROTECTOR,ENG HARN 1 Rp84.000
40 36677M66R50-000 .PROTECTOR,ENG HARN 1 Rp133.500
41 36677M66R20-000 .PROTECTOR,ENG HARN ECM 1 Rp76.500
42 36694-68K10-000 .COVER, BATTERY TERMINAL 1 Rp98.000
43-1 36651M68PC0-000 BRACKET,ENG HARN 1 Rp10.500
43-2 36651M82SC0-000 BRACKET,ENG HARN 1 Rp8.500
44 36651M68P00-000 BRACKET,ENG HARN 1 Rp9.500
45 01550M0612A-000 BOLT,ENG HARN BRKT 1 Rp5.000
46 36651M68P10-000 BRACKET,ENG HARN 1 Rp39.000
47 01550M0612A-000 BOLT,ENG HARN BRKT 1 Rp5.000
48 36653M62R00-000 BRACKET,ENG HARN PROTECTOR 1 Rp40.000
49 01550M0612A-000 BOLT,ENG HARN BRKT 1 Rp5.000
50 36653M68P80-000 BRACKET,ENG HARN 1 Rp8.500
51 01550M0612A-000 BOLT,ENG HARN BRKT 1 Rp5.000
52 01550-0616A-000 BOLT,ENG HARN MT PROTECTOR 1 Rp3.500
53 01550-0616A-000 BOLT,ENG HARN PROTECTOR 1 Rp3.500
54 01550M0612A-000 BOLT,NO.5 GND 1 Rp5.000
55 36691M66R00-000 WIRE, A/B 1 Rp159.500
56 36651M62R10-000 BRACKET,ENG HARN 1 Rp12.500
57 01550M0612A-000 BOLT,ENG HARN BRKT 1 Rp5.000
58 36653M81P00-000 BRACKET,CABLE 1 Rp10.500
59 01550M0612A-000 BOLT,CABLE BRKT 1 Rp5.000
60 36653M81P10-000 BRACKET,CABLE SIDE 1 Rp12.000
61 01550M0612A-000 BOLT,CABLE SIDE BRKT 1 Rp5.000
62 01550-0616A-000 BOLT,ENG HARN PROTECTOR 1 Rp3.500
63 01550-0616A-000 BOLT,AGS HARN PROTECTOR 1 Rp3.500
64 36751M66R20-000 WIRE, REAR DOOR RH SIDE 1 Rp194.500
65 36751M66RC0-000 WIRE, REAR DOOR LH SIDE 1 Rp194.500
66-1 36680M66R20-000 HARNESS ASSY, BACK DOOR 1 Rp360.500
66-2 36680M66R30-000 HARNESS ASSY, BACK DOOR 1 Rp360.500
67 09115-06005-000 BOLT (6X16),BACK DOOR GND 1 Rp14.000
68-1 36820M66R30-000 WIRE, ROOF 1 Rp150.000
68-2 36820M66R40-000 WIRE, ROOF 1 Rp148.000
69 36840M66R00-000 WIRE, FUEL 1 Rp134.000
70 09115-06005-000 BOLT,FUEL GND 1 Rp14.000
71 02162-0612A-000 BOLT,GND 1 Rp11.000
72 08310-0006A-000
SUB: 08310B0006AN000		 NUT,GND 1 Rp2.500
73-1 36756M66R10-000 WIRE, DRIVER DOOR 1 Rp343.500
73-2 36756M66R50-000 WIRE, DRIVER DOOR 1 Rp376.000
73-3 36756M82S30-000 WIRE, DRIVER DOOR 1 Rp491.500
73-4 36756M82S40-000 WIRE, DRIVER DOOR 1 Rp386.000
74-1 36757M66R10-000 WIRE, SUB DOOR 1 Rp194.500
74-2 36757M66R50-000 WIRE, SUB DOOR 1 Rp245.500
75 36759M66R00-000 PROTECTOR,DOOR HARN 2 Rp16.000
76 36997M68P10-000 COVER,TERMINAL 1 Rp65.000
77-1 36710M66RA1-000 BOX ASSY,JUNCTION 1 Rp1.637.000
77-2 36710M68PA2-000 BOX ASSY,JUNCTION 1 Rp1.566.500
78 38860M76M00-000 RELAY ASSY,RR DEF 1 Rp58.500
79-1 36843M66R00-000 WIRE,RR PARK SNSR 1 Rp786.500
79-2 36843M82S00-000 WIRE,RR PARK SNSR 1 Rp336.000
