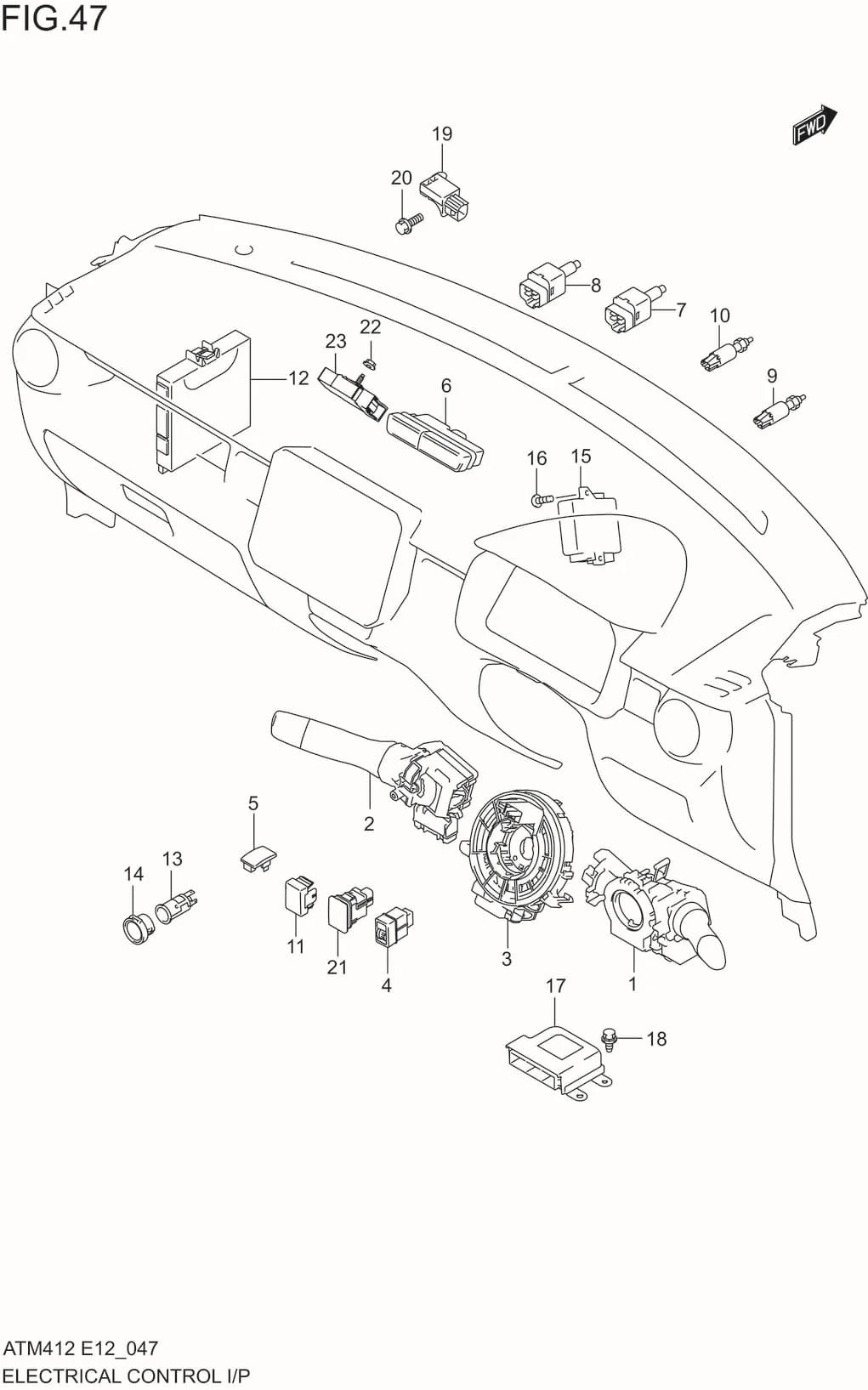

FIG.47 ELECTRICAL CONTROL INSTRUMENTAL PANEL

FIG.47 ELECTRICAL CONTROL INSTRUMENTAL PANEL
No No. Part Description Qty Price Per Pcs Remarks
1-2 37210M68P31-000 SWITCH ASSY, LIGHTING & TURN 1 Rp576.000
1-1 37210M68P01-000 SWITCH ASSY, LIGHTING & TURN 1 Rp476.000
2 37310M68P50-000 SWITCH ASSY, WIPER & WASHER 1 Rp650.000
3-1 37480M68P00-000 CABLE ASSY, CONTACT COIL 1 Rp439.500
3-2 37480M68P20-000 CABLE ASSY, CONTACT COIL 1 Rp625.500
3-3 37410M68P00-000 SET,CONTACT COIL & SAS 1 Rp1.122.000
3-4 37410M68P20-000 SET,CONTACT COIL & SAS 1 Rp1.360.000
4 35180M66R00-000 SWITCH ASSY, HEAD LAMP LEVELING 1 Rp114.000
5-1 37285M66R00-000 CAP, OPTION SW HOLE 3 Rp5.500
5-2 37285M66R00-000 CAP, OPTION SW HOLE 2 Rp5.500
6 37430M68P20-000 SWITCH ASSY, HAZARD & A/B IND 1 Rp235.500
7 37740M76G00-000 SET, STOP LAMP SW 1 Rp105.500
8 37740M83K00-000 SET, STOP LAMP SW 1 Rp109.000
9 37970M74L02-000 SWITCH ASSY, CLUTCH 1 Rp165.500
10 37970M71M02-000
SUB: 37970M71M00-000		 SWITCH ASSY, CLUTCH START 1 Rp86.500
11 37285M66R00-000 CAP,OPTION SW HOLE 4 Rp5.500
12-1 36775M66R22-000 CONTROLLER ASSY, BODY ELEC 1 Rp3.064.000
12-2 36775M66RB1-000 CONTROLLER ASSY, BODY ELEC 1 Rp5.278.500
12-3 36775M82S20-000 CONTROLLER ASSY, BODY ELEC 1 Rp3.013.000
13 39420M83P00-000 BODY, SOCKET 1 Rp102.000
14 39440M66R00-5PK CAP SOCKET (BLACK) 2 Rp10.000
15-1 38720M66R01-000 CONTROLLER ASSY,EPS 1 Rp3.053.000
15-2 38720M82S00-000 CONTROLLER ASSY,EPS 1 Rp2.625.000
16 02142-0516A-000
SUB: 02142B0516AN000		 SCREW,EPS CONT 2 Rp3.500
17 38910M66R21-000
SUB: 38910M66R20-000		 CONTROLLER ASSY,A/B 1 Rp1.311.000
18 09115-06004-000 BOLT 3 Rp19.500
19 38930M66R00-000 SENSOR ASSY,FORWARD 1 Rp337.000
20 02162-0620A-000 BOLT 1 Rp5.500
21 37775M66R00-000 SWITCH ASSY,PARK SNSR 1 Rp120.000
22 08316-1006A-000 NUT,GATEWAY CONT 2 Rp2.000
23 33580M68P00-000 CONTROLLER ASSY,GATEWAY 1 Rp2.319.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
