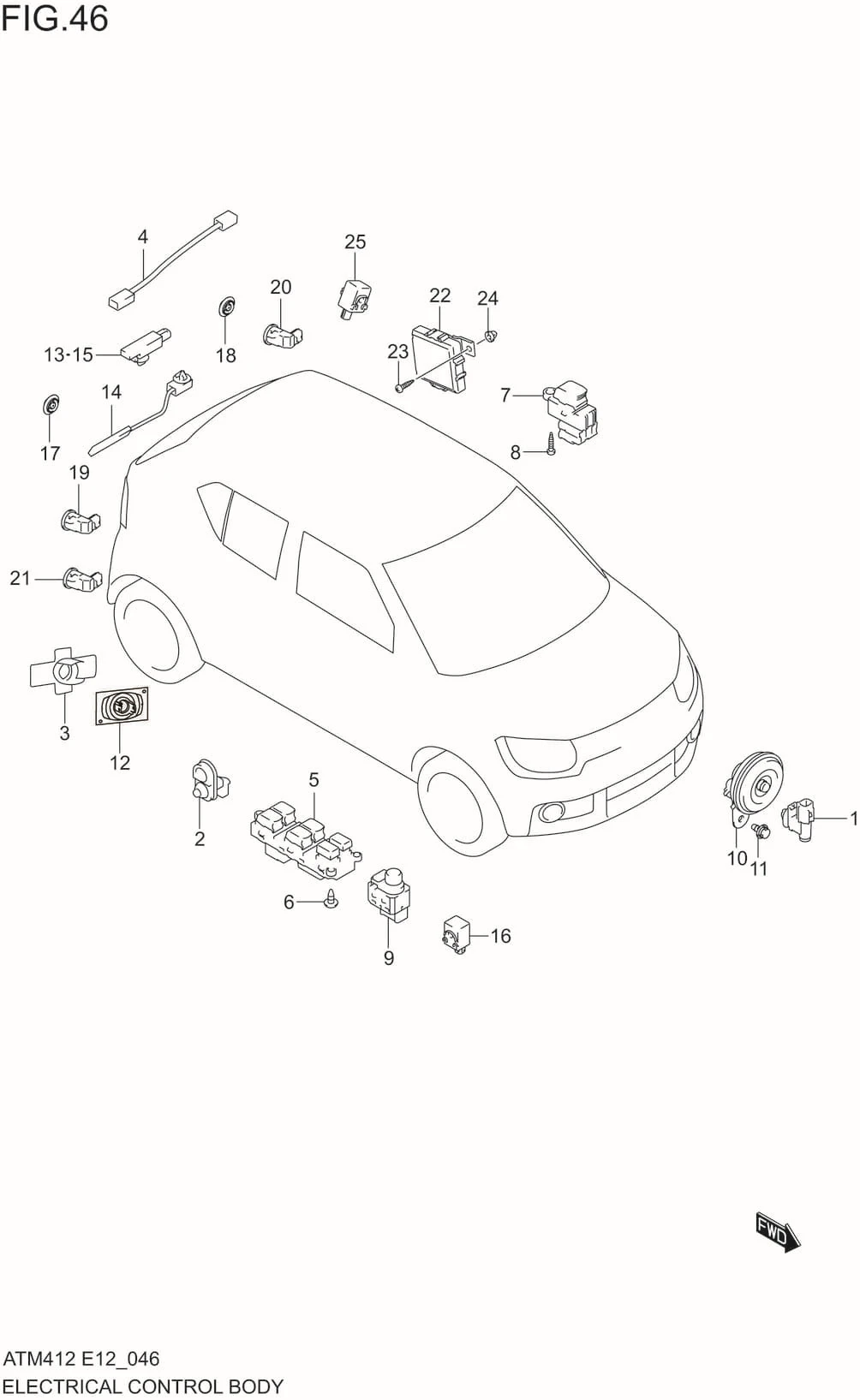

FIG.46 ELECTRICAL CONTROL BODY

FIG.46 ELECTRICAL CONTROL BODY
No No. Part Description Qty Price Per Pcs Remarks
1 95643M67P00-000 SENSOR, OUTSIDE AIR TEMP 1 Rp189.000
2 37670M60M10-000 SWITCH ASSY, DOOR 4 Rp35.000
3 37736M69R00-000 BRACKET,PARK SNSR 2 Rp34.500
4 37177M66R10-000 SWITCH ASSY, BACK DOOR & KLS 1 Rp184.000
5 37990M68P32-000
SUB: 37990M68P31-000		 SWITCH ASSY, POWER WINDOW MA 1 Rp1.008.000
6 03541-0410A-000 SCREW 3 Rp11.000
7 37995M79M02-000
SUB: 37995M79M00-000		 SWITCH ASSY, POWER WINDOW SUB 3 Rp109.500
8 03541-0410A-000 SCREW 3 Rp11.000
9-1 37950M79M01-000 SWITCH ASSY, MIRROR 1 Rp167.000
9-2 37950M79M11-000 SWITCH ASSY, MIRROR 1 Rp205.500
9-3 37950M56R00-000 SWITCH ASSY, MIRROR 1 Rp113.500
10-1 38500M66R00-000 HORN ASSY, LOW PITCHED 1 Rp175.000
10-2 38500M82S00-000 HORN ASSY, LOW PITCHED 1 Rp128.000
11 09115-08001-000 BOLT (8X18) 1 Rp21.500
12 37736M82S00-000 BRACKET,PARK SNSR CORNER 2 Rp35.000
13 37175M68P10-000 ANTENNA ASSY, KLS BACK DOOR 1 Rp260.000
14 37175M68P20-000 ANTENNA ASSY, KLS LUGGAGE 1 Rp278.500
15 37175M68P10-000 ANTENNA ASSY,KLS INSIDE 1 Rp260.000
16 38590-72M00-000 BUZZER ASSY, KLS 1 Rp441.500
17 09250-16015-000
SUB: 09250B16015N000		 CAP,BACK DOOR PANEL 1 Rp3.500
18 09250-16015-000
SUB: 09250B16015N000		 CAP,BACK DOOR PANEL 1 Rp3.500
19 37735M66R01-000 SENSOR ASSY,PARK 1 Rp499.500
20 37735M66R51-000 SENSOR ASSY,PARK 1 Rp499.500
21-8 37735M69R01-ZAM SENSOR ASSY,PARK 2 Rp353.500
21-12 37735M69R01-Z2S SENSOR ASSY,PARK 2 Rp353.500
21-11 37735M69R01-ZYE SENSOR ASSY,PARK 2 Rp322.000
21-10 37735M69R01-ZNZ SENSOR ASSY,PARK 2 Rp327.000
21-9 37735M69R01-ZHJ SENSOR ASSY,PARK 2 Rp268.000
21-7 37735M69R01-ZYR SENSOR ASSY, PARK 2 Rp327.000
21-6 37735M79M01-Z2S
SUB: 37735M79M00-Z2S		 SENSOR ASSY, PARK 2 Rp629.000
21-5 37735M79M01-ZWS
SUB: 37735M79M00-ZWS		 SENSOR ASSY, PARK 2 Rp448.500
21-4 37735M79M01-ZWR
SUB: 37735M79M00-ZWR		 SENSOR ASSY, PARK 2 Rp448.500
21-3 37735M79M01-ZNZ
SUB: 37735M79M00-ZNZ		 SENSOR ASSY, PARK 2 Rp649.000
21-2 37735M79M01-ZHJ
SUB: 37735M79M00-ZHJ		 SENSOR ASSY, PARK 2 Rp641.500
21-1 37735M79M01-ZAM
SUB: 37735M79M00-ZAM		 SENSOR ASSY, PARK 2 Rp637.500
22-1 37730M66R00-000 CONTROLLER ASSY,PARK SNSR 1 Rp1.067.000
22-2 37730M82S00-000 CONTROLLER ASSY,PARK SNSR 1 Rp566.500
23 03141M0612A-000 SCREW,PARK SNSR CONT 2 Rp4.500
24 71851M70F00-000 NUT,PARK SNSR CONT 4 Rp4.000
25 37734M79M00-000 BUZZER,PARK SNSR 1 Rp241.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
