KARIMUN WAGON R

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 28 ENGINE ELECTRICALFIG. 29 STARTING MOTORFIG. 30 GENERATORFIG. 31 BATTERYFIG. 32 SPEEDOMETER (GA)FIG. 33 SPEEDOMETER (GL, GX)FIG. 34 HEADLAMPFIG. 35 REAR LAMPFIG. 36 ROOM LAMPFIG. 37 WIRING HARNESSFIG. 38 ENGINE HARNESS BRACKETFIG. 39 ELECTRICAL CONTROLFIG. 40 LOCK SET (GA,GL)FIG. 41 LOCK SET (GX)FIG. 42 FRONT WINDOW WIPERFIG. 43 WINDOW WASHERFIG. 44 AUDIO (GA)FIG. 45 AUDIO (GL)FIG. 46 AUDIO (GX)

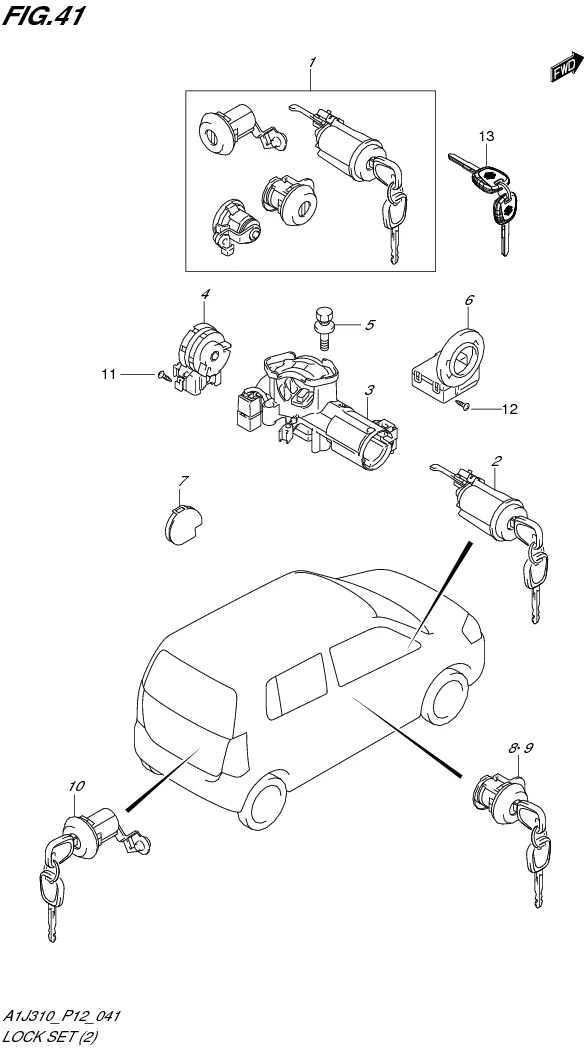

FIG. 41 LOCK SET (GX)

FIG. 41 LOCK SET (GX)
No No. Part Description Qty Price Per Pcs Remarks
1 37109-67831-000
SUB: 37109B67830N000		 LOCK SET 1 Rp2.323.000
2 37109-67840-000
SUB: 37109B67840N000		 LOCK ASSY, STEERING 1 Rp1.903.000
3 37101-67LA0-000
SUB: 37101B67LA0N000		 BODY, STEERING LOCK 1 Rp5.017.000
4 37111-67L00-000
SUB: 37111B67L00N000		 SWITCH 1 Rp288.000
5 37152-84G00-000
SUB: 37152B77M00N000		 BOLT, STEERING LOCK 2 Rp35.500
6 33970M68K20-000
SUB: 33970M68K10-000		 CONTROLLER, IMMOBILIZER 1 Rp960.000
7 37182-54G30-000
SUB: 37182B54G30N000		 SWITCH ASSY, TRANSMITTER 1 Rp1.906.500
8 82270-67830-000
SUB: 82270B67830N000		 CYLINDER, FR DOOR LOCK RH 1 Rp889.000
9 82280-67830-000
SUB: 82280B67830N000		 CYLINDER, FR DOOR LOCK LH 1 Rp1.109.000
10 82500-67880-000
SUB: 82500B67880N000		 CYLINDER, BACK DOOR LOCK 1 Rp840.500
11 37112-67L00-000
SUB: 37112B67L00N000		 SCREW IGNITION SWITCH 2 Rp27.000
12 37152-75J10-000
SUB: 37152B75J10N000		 SCREW CONTROL IMMOBILIZER 1 Rp27.000
13 37145-67LB1-000
SUB: 37145B67LB0N000		 KEY ASSY 1 Rp1.631.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
