  5. FIG. 37 WIRING HARNESS

KARIMUN WAGON R

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 28 ENGINE ELECTRICALFIG. 29 STARTING MOTORFIG. 30 GENERATORFIG. 31 BATTERYFIG. 32 SPEEDOMETER (GA)FIG. 33 SPEEDOMETER (GL, GX)FIG. 34 HEADLAMPFIG. 35 REAR LAMPFIG. 36 ROOM LAMPFIG. 37 WIRING HARNESSFIG. 38 ENGINE HARNESS BRACKETFIG. 39 ELECTRICAL CONTROLFIG. 40 LOCK SET (GA,GL)FIG. 41 LOCK SET (GX)FIG. 42 FRONT WINDOW WIPERFIG. 43 WINDOW WASHERFIG. 44 AUDIO (GA)FIG. 45 AUDIO (GL)FIG. 46 AUDIO (GX)

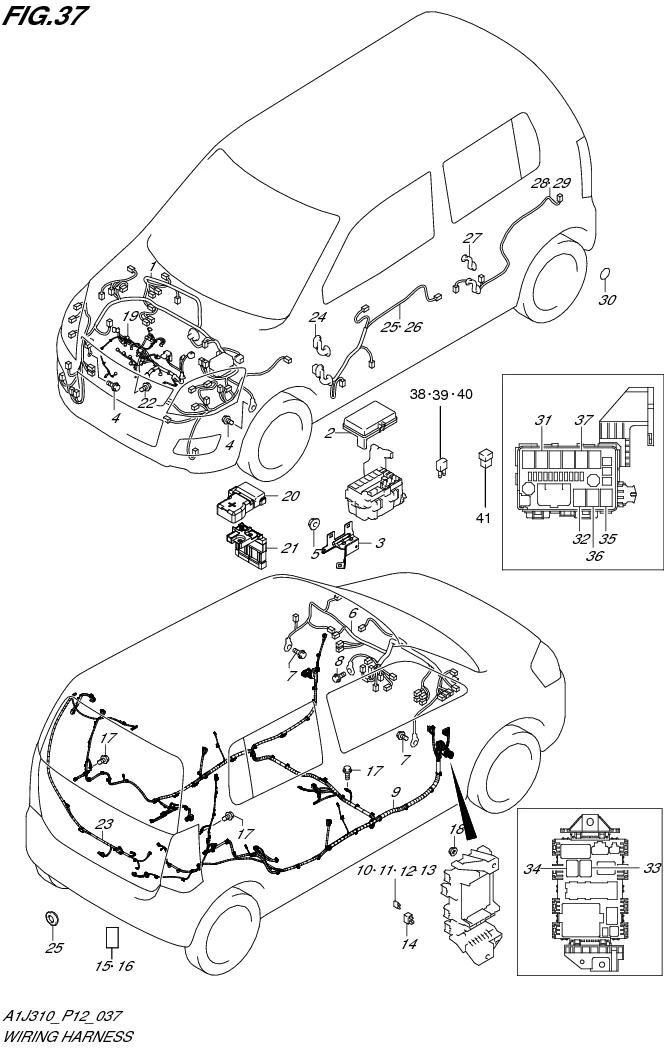

FIG. 37 WIRING HARNESS

FIG. 37 WIRING HARNESS
No No. Part Description Qty Price Per Pcs Remarks
1-2 36601-67L10-000
SUB: 36601B67L10N000		 HARNESS ASSY, MAIN 1 Rp1.331.000 GL,GX
1-1 36601-67L00-000
SUB: 36601B67L00N000		 HARNESS ASSY, MAIN 1 Rp1.339.500 GA
2 36717-67L10-000
SUB: 36717B67L10N000		 COVER, RELAY BOX 1 Rp80.500
3 36712-67LA0-000
SUB: 36712B67LA0N000		 BRACKET, RELAY BOX 1 Rp17.000
4 09115-06005-000 BOLT (6X16) 2 Rp14.000
5 09159-06076-000 NUT 3 Rp19.500
6-1 36602-67L00-000
SUB: 36602B67L00N000		 HARNESS ASSY, INSTRUMENT PANEL 1 Rp704.500 GA
6-2 36602-67L10-000
SUB: 36602B67L10N000		 HARNESS ASSY, INSTRUMENT PANEL 1 Rp889.000 GL
6-3 36602-67L20-000
SUB: 36602B67L20N000		 HARNESS ASSY, INSTRUMENT PANEL 1 Rp926.000 GX
7 09115-06005-000 BOLT (6X16) 2 Rp14.000
8 02162-0612A-000 SCREW 1 Rp11.000
9-1 36603-67L00-000
SUB: 36603B67L00N000		 HARNESS ASSY, FLOOR 1 Rp1.447.000 GA
9-2 36603-67L10-000
SUB: 36603B67L10N000		 HARNESS ASSY, FLOOR 1 Rp1.673.500 GL,GX
10 09481-10504-000 •FUSE (10A) 11 Rp12.500
11 09481-15504-000 •FUSE (15A) 4 Rp13.000
12 09481-20504-000 •FUSE (20A) 2 Rp14.500
13 09481-30504-000 •FUSE (30A) 1 Rp15.000
14 09481-30403-000 •FUSE (30A) 1 Rp41.000
15 36930M82000-000
SUB: 36930M82010-000		 COVER, FUEL HARNESS 1 Rp6.500
16 36930M82000-000
SUB: 36930M82010-000		 COVER, FLOOR HARNESS 2 Rp6.500
17 09115-06005-000 BOLT (6X16) 3 Rp14.000
18 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
19 36650-67L50-000
SUB: 36650B67L50N000		 HARNESS ASSY, ENGINE 1 Rp1.516.000
20 36694-84A00-000
SUB: 36694B84A00N000		 •COVER, BATTERY TERMINAL 1 Rp225.000
21 36739-62J00-000 •FUSE, BATTERY 1 Rp298.500
22 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 1 Rp3.500
23-1 36680-67L60-000
SUB: 36680B67L60N000		 HARNESS ASSY, BACK DOOR 1 Rp94.000 GA,GL
23-2 36680-67LB0-000
SUB: 36680B67L80N000		 HARNESS ASSY, BACK DOOR 1 Rp118.000 GX
24 36995-67L20-000
SUB: 36995B67L20N000		 GROMMET, FR DOOR 2 Rp26.500 GA
25 36756-67L70-000
SUB: 36756B67L70N000		 WIRE, DRIVER DOOR 1 Rp196.000 GL,GX
26 36757-67L70-000
SUB: 36757B67L70N000		 WIRE, PASSENGER DOOR 1 Rp159.500 GL,GX
27 36995-67L30-000
SUB: 36995B67L30N000		 GROMMET, REAR DOOR HARN 2 Rp44.500 GA
28-1 36751-67L70-000
SUB: 36751B67L70N000		 WIRE, REAR DOOR RH 1 Rp72.000 GL
28-2 36751-67LK0-000
SUB: 36751B67L80N000		 WIRE, REAR DOOR RH 1 Rp82.500 GX
29-1 36751-67L70-000
SUB: 36751B67L70N000		 WIRE, REAR DOOR LH 1 Rp72.000 GL
29-2 36751-67LH0-000
SUB: 36751B67LH0N000		 WIRE, REAR DOOR LH 1 Rp75.500 GX
30 77191-79F00-000
SUB: 77191B79F00N000		 FILM, BACK DOOR SIDE CUSHION 2 Rp7.500 GA
31 38860-77M00-000
SUB: 38860B77M00N000		 RELAY ASSY, STARTER 1 Rp45.000
32 38860-77M00-000
SUB: 38860B77M00N000		 RELAY ASSY, RADIATOR 1 Rp45.000
33 38860-77M00-000
SUB: 38860B77M00N000		 RELAY ASSY, HETER 1 Rp45.000
34 38860-77M00-000
SUB: 38860B77M00N000		 RELAY ASSY, HORN 1 Rp45.000
35 38860-77M00-000
SUB: 38860B77M00N000		 RELAY ASSY, FUEL INJECTION 1 Rp45.000
36 38860-77M00-000
SUB: 38860B77M00N000		 RELAY ASSY, FUEL PUMP 1 Rp45.000
37 38860-76F01-000
SUB: 38860B76F01N000		 RELAY ASSY, A/C 1 Rp47.000
38 09481-10504-000 FUSE,10A 1 Rp12.500
39 09481-15504-000 FUSE,15A 3 Rp13.000
40 09481-30504-000 FUSE,30A 3 Rp15.000
41 09481-40403-000 FUSE,40A 1 Rp51.500
