KARIMUN WAGON R

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 28 ENGINE ELECTRICALFIG. 29 STARTING MOTORFIG. 30 GENERATORFIG. 31 BATTERYFIG. 32 SPEEDOMETER (GA)FIG. 33 SPEEDOMETER (GL, GX)FIG. 34 HEADLAMPFIG. 35 REAR LAMPFIG. 36 ROOM LAMPFIG. 37 WIRING HARNESSFIG. 38 ENGINE HARNESS BRACKETFIG. 39 ELECTRICAL CONTROLFIG. 40 LOCK SET (GA,GL)FIG. 41 LOCK SET (GX)FIG. 42 FRONT WINDOW WIPERFIG. 43 WINDOW WASHERFIG. 44 AUDIO (GA)FIG. 45 AUDIO (GL)FIG. 46 AUDIO (GX)

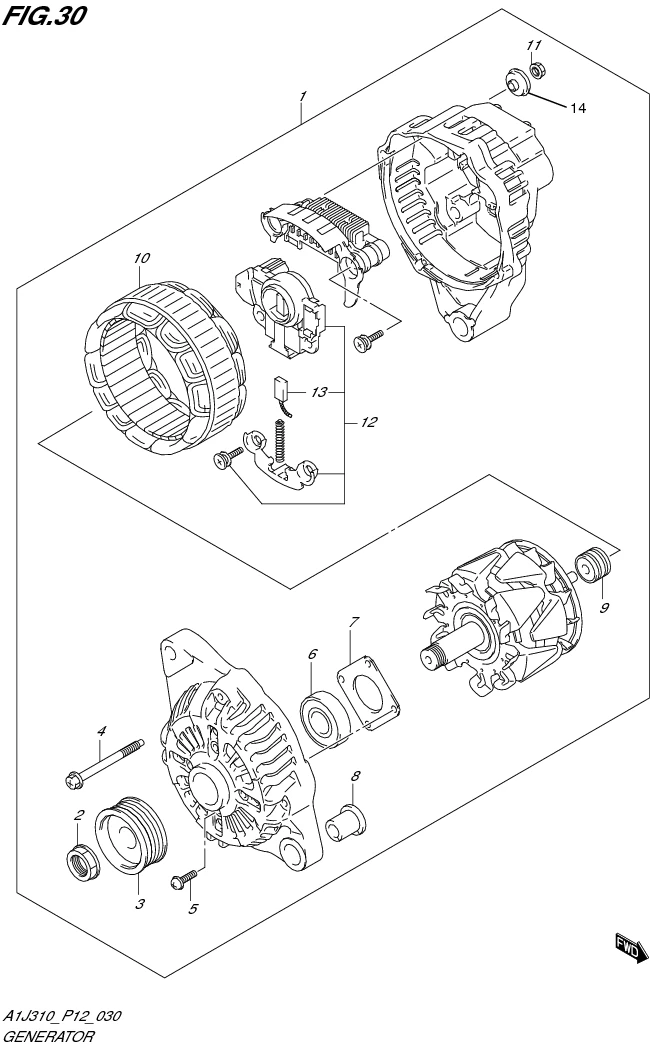

FIG. 30 GENERATOR

FIG. 30 GENERATOR
No No. Part Description Qty Price Per Pcs Remarks
1 31400-67L11-000
SUB: 31400B67L10N000		 GENERATOR ASSY 1 Rp2.322.000
2 31775-50F20-000 •NUT 1 Rp74.500
3 31171-65D00-000 •PULLEY 1 Rp1.145.500
4 31651-86520-000 •SCREW SET 1 Rp78.000
5 31586-86520-000 •SCREW 1 Rp67.500
6 31582-50F30-000
SUB: 31582-50F20-000		 •BEARING 1 Rp476.500
7 DISCONTINUE
SUB: 31585-65J10-000		 •RETAINER 1 -
8 DISCONTINUE
SUB: 31616-83E00-000		 •BUSH 1 -
9 DISCONTINUE
SUB: 31612-60A10-000		 •BEARING, REAR 1 -
10 31410-54L10-000
SUB: 31410B54L10N000		 •STATOR ASSY 1 Rp958.500
11 08316-67D00-000
SUB: 08316B67D00N000		 •NUT 1 Rp8.500
12 DISCONTINUE
SUB: 32500-80J10-000		 •REGULATOR ASSY 1 -
13 31631-60F30-000 ••BRUSH SET 2 Rp121.000
14 31514-67D00-000 •TERMINAL 1 Rp174.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
