KARIMUN WAGON R

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 28 ENGINE ELECTRICALFIG. 29 STARTING MOTORFIG. 30 GENERATORFIG. 31 BATTERYFIG. 32 SPEEDOMETER (GA)FIG. 33 SPEEDOMETER (GL, GX)FIG. 34 HEADLAMPFIG. 35 REAR LAMPFIG. 36 ROOM LAMPFIG. 37 WIRING HARNESSFIG. 38 ENGINE HARNESS BRACKETFIG. 39 ELECTRICAL CONTROLFIG. 40 LOCK SET (GA,GL)FIG. 41 LOCK SET (GX)FIG. 42 FRONT WINDOW WIPERFIG. 43 WINDOW WASHERFIG. 44 AUDIO (GA)FIG. 45 AUDIO (GL)FIG. 46 AUDIO (GX)

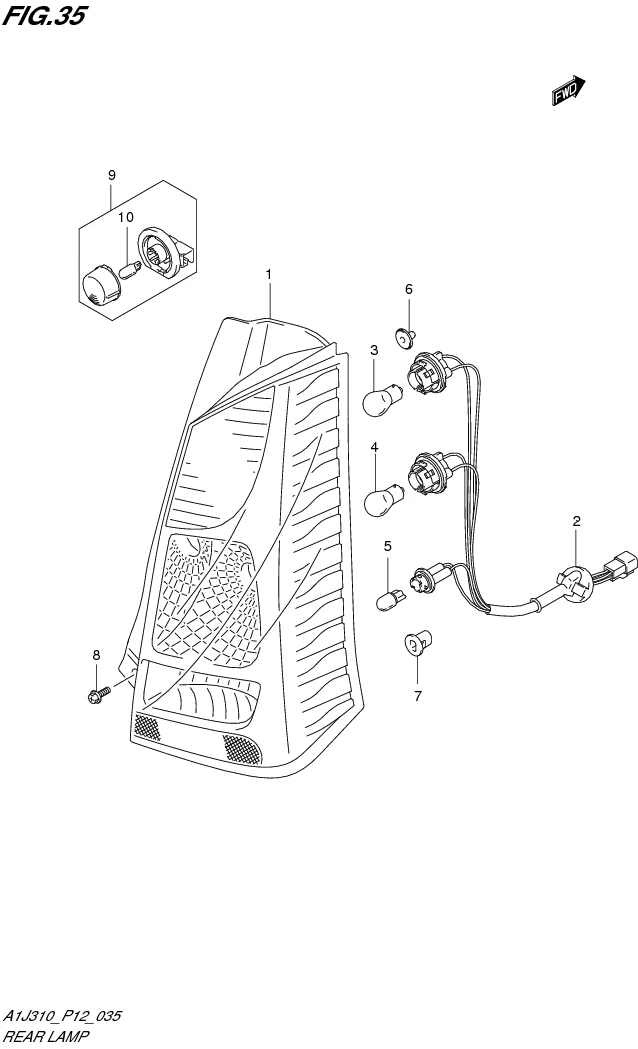

FIG. 35 REAR LAMP

FIG. 35 REAR LAMP
No No. Part Description Qty Price Per Pcs Remarks
1-1 35650-67L11-000
SUB: 35650B67L10N000		 LAMP UNIT,RR COMB,RH 1 Rp533.000
1-2 35670-67L11-000
SUB: 35670B67L10N000		 LAMP UNIT,RR COMB,LH 1 Rp533.000
2 35658-67L10-000
SUB: 35658B67L10N000		 SOCKET & CORD ASSY 1 Rp106.500
3 09471-12045-000
SUB: 09471B12045N000		 BULB,12V21W (BA15S) 1 Rp13.500
4 09471-12046-000
SUB: 09471B12046N000		 BULB,12V21W/5W 1 Rp21.500
5 09471-12146-000
SUB: 09471B12146N000		 BULB,12V16W(W16W) 1 Rp39.500
6 35153-63G00-000
SUB: 35153B67L20N000		 GROMMET, REAR LAMP UPPER 2 Rp30.000
7 35153-67L10-000
SUB: 35153B67L10N000		 GROMMET, REAR LAMP LOWER 2 Rp7.000
8 02162-0616A-000 SCREW 4 Rp3.000
9-1 35910-67L12-000
SUB: 35910M67L00-000		 LAMP ASSY, LICENSE 1 Rp62.000 RH
9-2 35910-67L22-000
SUB: 35910M83K00-000		 LAMP ASSY, LICENSE 1 Rp62.000 LH
10 09471-12216-000
SUB: 09471B12216N000		 •BULB (12V5W) 1 Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
