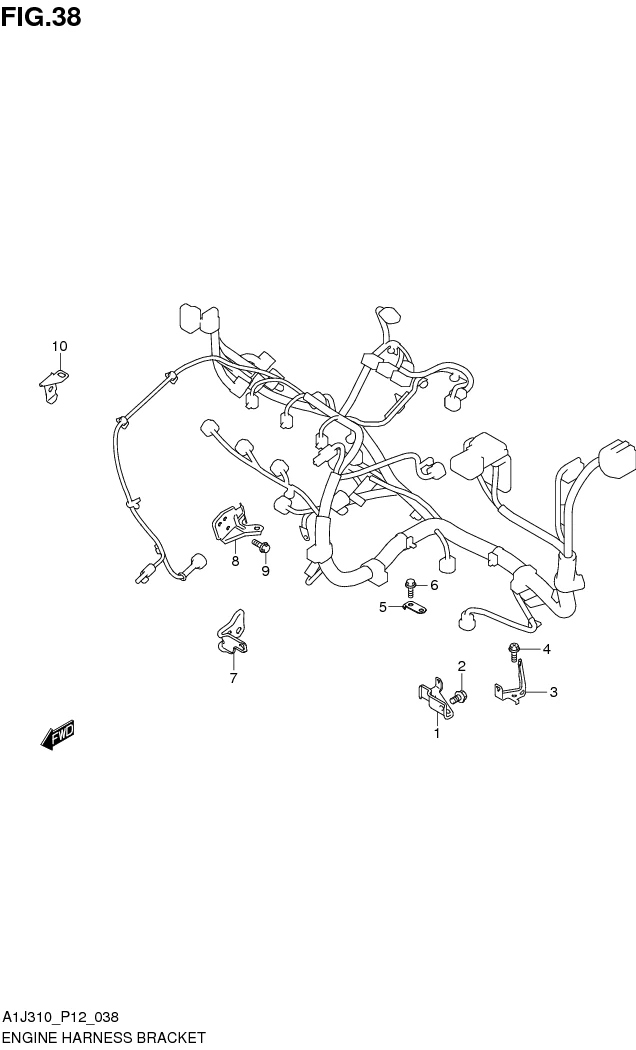

FIG. 38 ENGINE HARNESS BRACKET

FIG. 38 ENGINE HARNESS BRACKET
No No. Part Description Qty Price Per Pcs Remarks
1 36651-51K00-000
SUB: 36651B51K00N000		 BRACKET, ENG HARN T/M 1 Rp15.000
2 01550-0812A-000
SUB: 01550B0812AN000		 BOLT 1 Rp3.500
3 36651-67L10-000
SUB: 36651B67L10N000		 BRACKET, ENG HARN BODY 1 Rp16.000
4 02162-0612A-000 SCREW 1 Rp11.000
5 36651-51G00-000
SUB: 36651B51G00N000		 BRACKET, ENG HARN MT 1 Rp5.500
6 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
7 36653-68L00-000
SUB: 36653B68L00N000		 BRACKET, ENG HARN THERMO 1 Rp9.000
8 36653-68K00-000
SUB: 36653B68K00N000		 BRACKET, ENG HARN EGR 1 Rp12.000
9 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
10 36654-65L00-000
SUB: 36654M65L00-000		 BRACKET, ENG HARN HOOK 1 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
