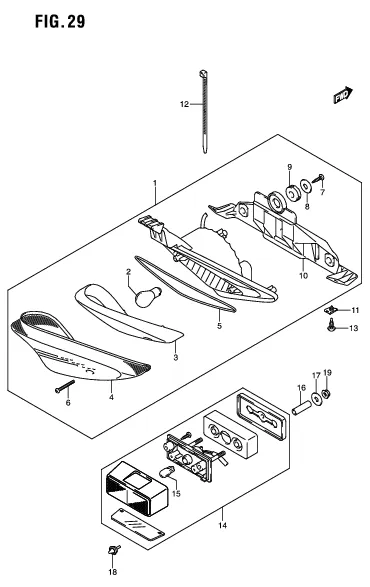

FIG. 29 REAR COMBINATION LAMP

FIG. 29 REAR COMBINATION LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35710-48H01-000
SUB: 35710-48H00-000		 LAMP ASSY, REAR COMBINASION 1 Rp753.500
2 09471-12083-000 .BULB (12V,21/5W) 1 Rp62.000
3 35732-48H00-000 .LENS 1 Rp86.500
4 35712-48H01-000
SUB: 35712-48H00-000		 .LENS 1 Rp179.000
5 35713-48H00-000 .GASKET 1 Rp22.500
6 03211-0435A-000 .SCREW 2 Rp10.500
7 03241-0514A-000 .SCREW 3 Rp10.500
8 08212-05181-000 .WASHER 3 Rp15.000
9 35765-48H00-000 .CUSHION 3 Rp20.500
10 35726-48H00-000 .BRACKET 1 Rp62.000
11 35157-48H00-000 NUT, REAR LAMP 4 Rp19.500
12 36990-48H20-000 CLAMP, REAR COMBINASION LAMP 1 Rp27.000
13 03541-0516A-000 SCREW 4 Rp3.500
14 35910-48H01-000
SUB: 35910-48H00-000		 LAMP ASSY, LICENSE 1 Rp321.500
15 09471-12216-000 .BULB (12V,5W) 1 Rp15.000
16 35996-48H00-000 SPACER, LICENSE LAMP 2 Rp22.500
17 09160-06027-000
SUB: 09160-06077-000		 WASHER (6.5X20X1.2) 2 Rp6.500
18 09321-06032-000 CUSHION 1 Rp25.000
19 08316-1006A-000 NUT 2 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
