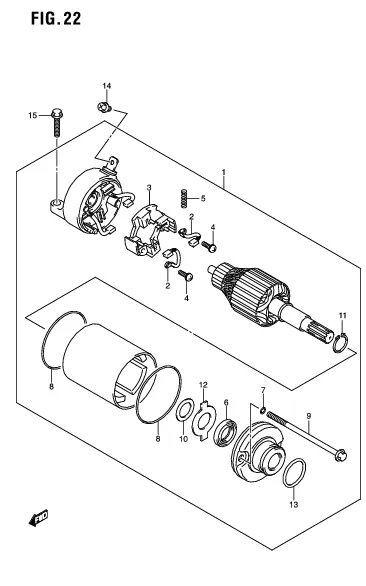

FIG. 22 STARTING MOTOR

FIG. 22 STARTING MOTOR
No No. Part Description Qty Price Per Pcs Remarks
1 31100-48H00-000 MOTOR ASSY, STARTING 1 Rp1.280.500
2 31132-25H00-000 .BRUSH 2 Rp58.000
3 31133-25H00-000 .BRUSH HOLDER 1 Rp268.000
4 31134-25H00-000 .SCREW, WASHER 2 Rp15.000
5 31135-25H00-000 .SPRING 4 Rp18.000
6 31153-05530-000 .OIL SEAL 1 Rp29.500
7 31156-25H00-000 .O RING 2 Rp21.000
8 31264-05530-000 .O RING 2 Rp15.500
9 31281-25H00-000 .BOLT, THROUGH 2 Rp42.000
10 DISCONTINUE
SUB: 31361-055A0-000		 .SHIM 1 -
11 31361-05530-000 .SNAP RING 1 Rp21.500
12 31361-25H00-000 .PLATE LOCK 1 Rp18.000
13 09280-24003-000 .O RING (D:3,ID:24.5) 1 Rp4.500
14 DISCONTINUE
SUB: 09137-05004-000		 SCREW (5X8) 1 -
15 01547-0625A-000 BOLT 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
