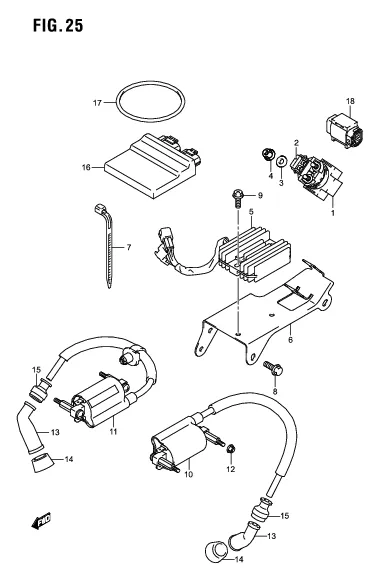

FIG. 25 ELECTRICAL

FIG. 25 ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 31800-48H01-000
SUB: 31800-48H00-000		 RELAY ASSY, STARTING MOTOR 1 Rp278.500
2 09481-30101-000 .FUSE (30A) 2 Rp14.000
3 09160-07019-000 WASHER 2 Rp18.000
4 08361-3506A-000 NUT 2 Rp4.000
5 32800-48H00-000 RECTIFIER ASSY 1 Rp1.079.000
6 32830-48H10-000 BRACKET, RECTIFIER FITTING 1 Rp92.500
7 36990-32G10-000 CLAMP, RECTIFIER LEAD 1 Rp17.500
8 01550-0612A-000 BOLT 3 Rp3.500
9 02162-0625A-000 BOLT 2 Rp3.500
10 33410-48H01-000
SUB: 33410-48H00-000		 COIL ASSY, IGNITION 1 Rp213.000
11 33420-48H01-000
SUB: 33420-48H00-000		 COIL ASSY, IGNITION NO.2 1 Rp213.000
12 08316-1005A-000
SUB: 08316-1005B-000		 NUT 4 Rp2.500
13 33510-48H00-000 CAP, SPARK PLUG 2 Rp49.500
14 33541-48H01-000
SUB: 33541-48H00-000		 SEAL, SPARK PLUG 2 Rp25.500
15 33542-48H01-000
SUB: 33542-48H00-000		 SEAL, HIGH TENSION CORD 2 Rp31.500
16 32920-48H31-000
SUB: 32920-48H30-000		 CONTROL UNIT, FI 1 Rp8.736.500
17 47435-20K00-000
SUB: 32925-48H00-000		 BAND, FI CONTROL UNIT 1 Rp72.500
18 33960-06G10-000 SENSOR ASSY, FUEL CUT 1 Rp108.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
