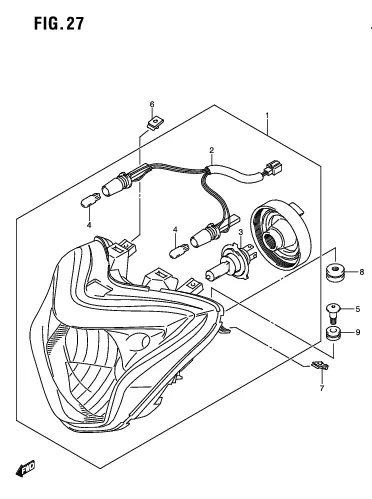

FIG. 27 HEAD LAMP

FIG. 27 HEAD LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35100-48H21-000
SUB: 35100-48H20-000		 HEADLAMP ASSY 1 Rp2.034.500
2 36118-48H01-000
SUB: 36118-48H00-000		 .CORD ASSY 1 Rp67.000
3 09471-12101-000 .BULB (12V,35/35W) 1 Rp537.500
4 09471-12216-000 .BULB (12V,5W) 2 Rp15.000
5 35151-48H00-000 SCREW, HEADLAMP 2 Rp20.500
6 35155-48H00-000 NUT, HEADLAMP 2 Rp21.500
7 35157-48H00-000 NUT, HEADLAMP 2 Rp19.500
8 35382-48H00-000 CUSHION, HEADLAMP 2 Rp24.000
9 09320-09016-000 CUSHION 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
