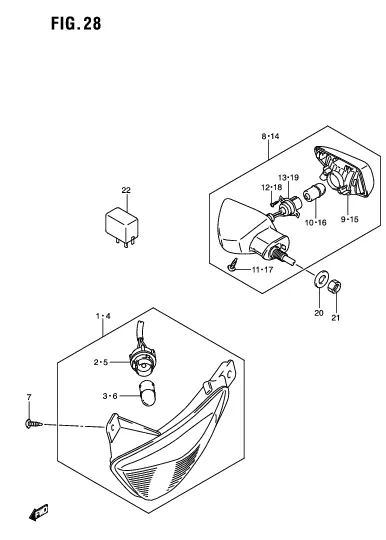

FIG. 28 TURNSIGNAL LAMP

FIG. 28 TURNSIGNAL LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35601-48H01-000
SUB: 35601-48H00-000		 LAMP ASSY, FRONT TURNSIGNAL RH 1 Rp355.500
2 35618-48H00-000 .CORD 1 Rp69.500
3 09471-12226-000 .BULB (12V,10W) 1 Rp47.000
4 35602-48H01-000
SUB: 35602-48H00-000		 LAMP ASSY, FRONT TURNSIGNAL LH 1 Rp355.500
5 35638-48H00-000 .CORD 1 Rp69.500
6 09471-12226-000 .BULB (12V,10W) 1 Rp47.000
7 03541-0516A-000 SCREW 6 Rp3.500
8 35603-48H00-000 LAMP ASSY, REAR TURNSIGNAL RH 1 Rp382.000
9 35650-48H01-000
SUB: 35650-48H00-000		 .LAMP UNIT RH 1 Rp212.500
10 09471-12226-000 .BULB (12V,10W) 1 Rp47.000
11 03241-0412B-000 .SCREW 1 Rp15.500
12 35623-48H00-000 .SCREW 2 Rp15.000
13 35658-48H00-000 .CORD RH 1 Rp63.000
14 35604-48H00-000 LAMP ASSY, REAR TURNSIGNAL LH 1 Rp382.000
15 35670-48H01-000
SUB: 35670-48H00-000		 .LAMP UNIT LH 1 Rp212.500
16 09471-12226-000 .BULB (12V,10W) 1 Rp47.000
17 03241-0412B-000 .SCREW 1 Rp15.500
18 35623-48H00-000 .SCREW 2 Rp15.000
19 35678-48H00-000 .CORD LH 1 Rp54.500
20 35679-48H00-000 WASHER, REAR TURNSIGNAL LAMP 2 Rp22.500
21 08310-0010A-000 NUT 2 Rp3.500
22 38610-26H02-000 RELAY ASSY, TURNSIGNAL LAMP 1 Rp82.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
