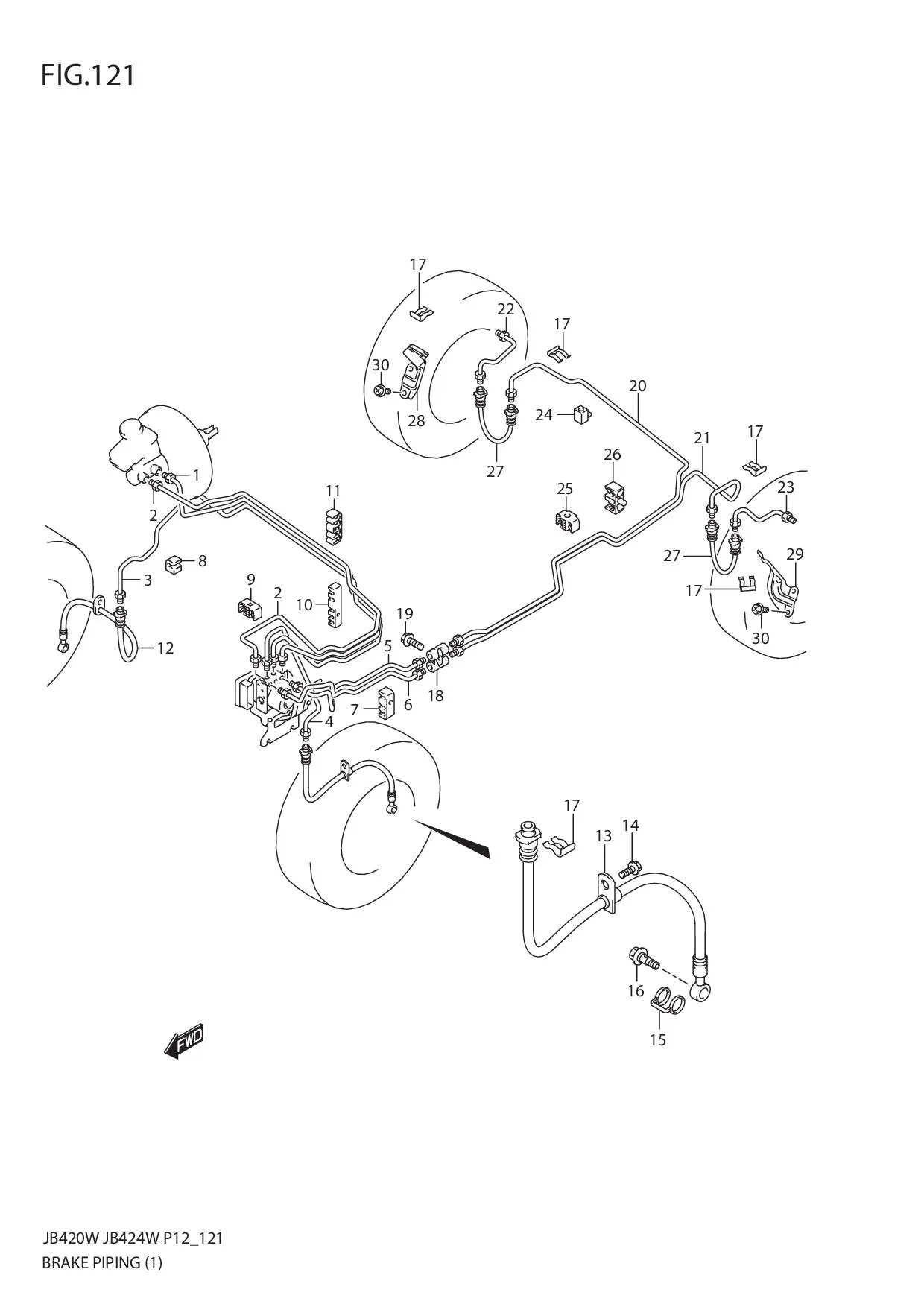

FIG.121 BRAKE PIPING (JB420W)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 51410B65J00N000	PIPE, MA PRIMARY TO UNIT	1	-
2	DISCONTINUE SUB: 51420B65J01N000	PIPE, MA SECONDARY TO UNIT	1	-
3	DISCONTINUE SUB: 51430B65J01N000	PIPE, UNIT TO FR BK HOSE RH	1	-
4-1	DISCONTINUE SUB: 51440B65J02N000	PIPE, UNIT TO FR BK HOSE LH	1	-
4-2	DISCONTINUE SUB: 51440B65J02N000	PIPE, UNIT TO FR BK HOSE LH	1	-	FROM JSAJTD54V7 101017
5	DISCONTINUE SUB: 51450B65J00N000	PIPE, UNIT TO JOINT RH	1	-
6	DISCONTINUE SUB: 51460B65J00N000	PIPE, UNIT TO JOINT LH	1	-
7	51751-77M00-000 SUB: 51751-65J40-000	CLAMP, BK PIPE FR SIDE	1	Rp6.500
8	51751-65J50-000	CLAMP, BK PIPE FR SIDE	2	Rp34.000
9	51751-75F00-000	CLAMP, BRAKE PIPE DOUBLE	1	Rp29.000
10	51751-65J60-000	CLAMP, BK PIPE FR SIDE	1	Rp46.500
11	51751-82CB0-000	CLAMP, BRAKE PIPE QUADRUPLE	2	Rp33.500
12	51540-65J00-000	HOSE, FR BRAKE FLEXIBLE RH	1	Rp402.500
13	51550-65J00-000	HOSE, FR BRAKE FLEXIBLE LH	1	Rp402.000
14	01551-0820A-000	BOLT	2	Rp17.500
15	51543-65J01-000	GASKET, FLEXIBLE HOSE	2	Rp111.500
16	09360-10026-000	UNION, BOLT	2	Rp25.000
17	09383M13004-000 SUB: 09383-13003-000	E RING	6	Rp7.000
18	DISCONTINUE SUB: 51630B81K00N000	JOINT, BRAKE 4 WAY	1	-
19	DISCONTINUE SUB: 02162-0630A-000	BOLT	1	-
20	DISCONTINUE SUB: 51470-65J01-000	PIPE, JOINT TO RR BK HOSE RH	1	-
21	DISCONTINUE SUB: 51480-65J01-000	PIPE, JOINT TO RR BK HOSE LH	1	-
22	DISCONTINUE SUB: 51510B65J00N000	PIPE, RR BK HOSE TO WHL CYL RH	1	-
23	DISCONTINUE SUB: 51520B65J00N000	PIPE, RR BK HOSE TO WHL CYL LH	1	-
24	DISCONTINUE SUB: 51751-65J00-000	CLAMP, BK PIPE RR FLOOR	2	-
25	51751-77M10-000 SUB: 51751-76G00-000	CLAMP, BRAKE PIPE DOUBLE	2	Rp5.500
26	51761-62J20-000	CLAMP, BK PIPE TANK SIDE	4	Rp32.000
27	51570-65J00-000	HOSE, RR BRAKE FLEXIBLE	2	Rp201.000
28	DISCONTINUE SUB: 51713-65J00-000	BRACKET, RR BK HOSE RH	1	-
29	DISCONTINUE SUB: 51714-65J00-000	BRACKET, RR BK HOSE LH	1	-
30	02162-0612A-000	SCREW	4	Rp11.000
