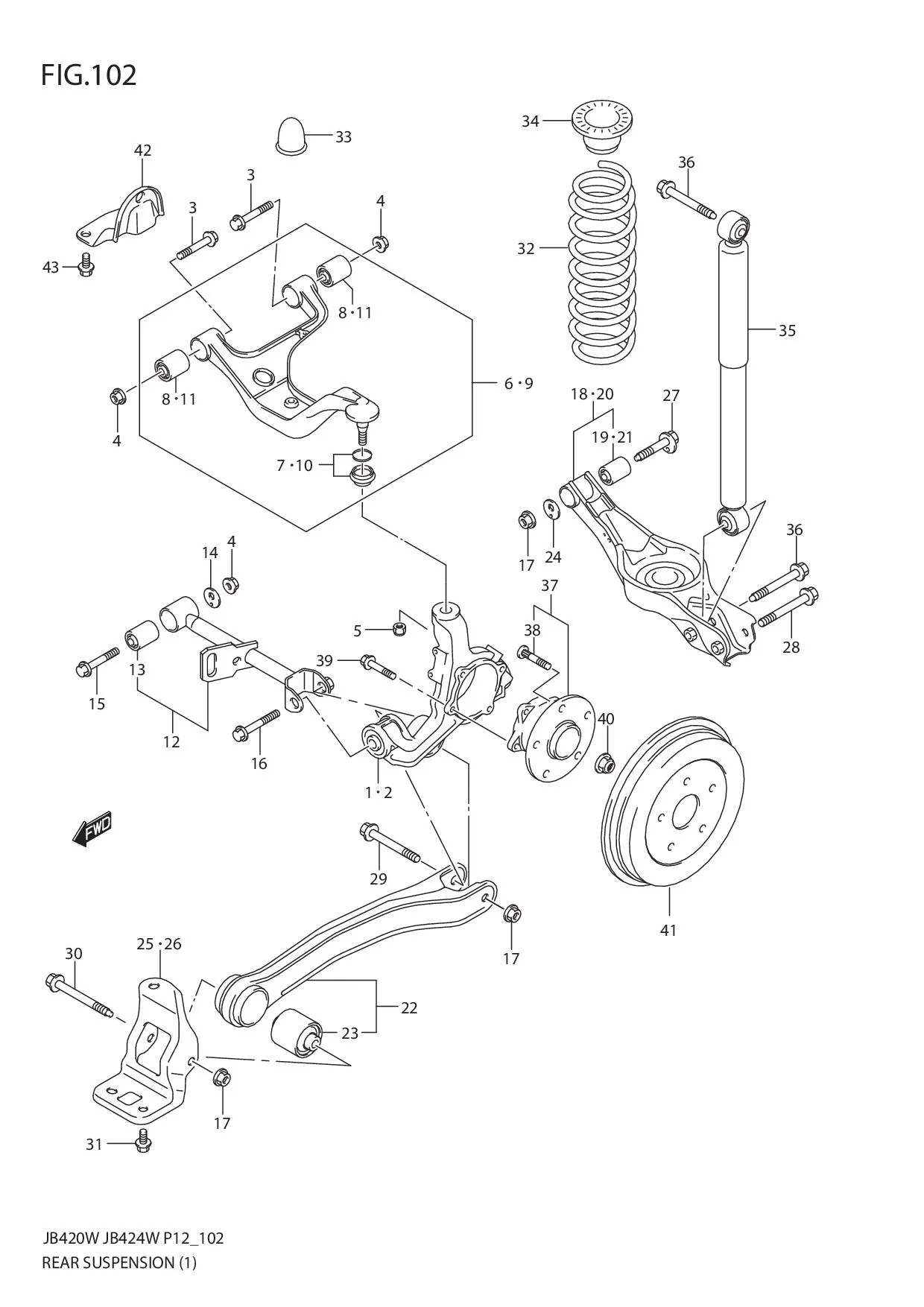

FIG.102 REAR SUSPENSION (JB420W)

No	No. Part	Description	Qty	Price Per Pcs
1	46110-65J00-000	KNUCKLE ASSY, REAR SPNSN RH	1	Rp3.592.000
2	46150-65J00-000	KNUCKLE ASSY, REAR SPNSN LH	1	Rp3.592.000
3	09135-14015-000	BOLT (14X92)	4	Rp94.500
4	09159-14028-000	NUT, RR SPNSN ARM MOUNT	6	Rp40.000
5	09159-14029-000	NUT, RR SPNSN UPPER ARM JOINT	2	Rp27.000
6	46201-65J01-000	ARM ASSY, RR SPNSN UPPER RH	1	Rp4.113.500
7	45700-60810-000 SUB: 45706-60A00-000	•SEAL SET, FR SUSPENSION ARM	1	Rp204.000
8	46231-65J00-000	•BUSH, RR SPNSN UPPER ARM	2	Rp195.500
9	46202-65J01-000	ARM ASSY, RR SPNSN UPPER LH	1	Rp4.113.500
10	45700-60810-000 SUB: 45706-60A00-000	•SEAL SET, FR SUSPENSION ARM	1	Rp204.000
11	46231-65J00-000	•BUSH, RR SPNSN UPPER ARM	2	Rp195.500
12	46300-65J01-000	ROD ASSY, RR SPNSN CONTROL	2	Rp988.500
13	46331-65J01-000	•BUSH, RR SPNSN CONT ROD	2	Rp153.500
14	46333-65J00-000	WASHER, RR SPNSN CONT ROD	2	Rp51.000
15	46431-65J00-000	BOLT, RR SPNSN CONT ROD INNER	2	Rp138.500
16	09103-14028-000	BOLT (14X87)	2	Rp78.000
17	09159-14028-000	NUT, RR SPNSN ROD MOUNT	4	Rp40.000
18	46205-65J01-000	ARM ASSY, RR SPNSN LOWER RH	1	Rp1.329.500
19	46122-65J00-000	•BUSH, RR SPNSN LATERAL LINK	1	Rp174.500
20	46207-65J01-000	ARM ASSY, RR SPNSN LOWER LH	1	Rp1.329.500
21	46122-65J00-000	•BUSH, RR SPNSN LATERAL LINK	1	Rp174.500
22	46305-65J00-000	ROD ASSY, RR SPNSN TRAILING	2	Rp969.000
23	46371-65J00-000	•BUSH, RR SPNSN TRAILING ROD	2	Rp414.500
24	46333-65J00-000	WASHER, RR SPNSN LOWER ROD	2	Rp51.000
25	DISCONTINUE SUB: 46381-65J00-000	BRACKET, RR TRLG MOUNT RH	1	-
26	DISCONTINUE SUB: 46391-65J00-000	BRACKET, RR TRLG MOUNT LH	1	-
27	46431-65J00-000	BOLT, RR SPNSN LOWER ROD INNER	2	Rp138.500
28	09103-14028-000	BOLT (14X87)	2	Rp78.000
29	09103-14028-000	BOLT (14X87)	2	Rp78.000
30	09103-14030-000	BOLT (14X108)	2	Rp84.500
31	DISCONTINUE SUB: 09103-12105-000	BOLT (12X20)	6	-
32	41311-65J11-000 SUB: 41311-65JB0-000	SPRING, REAR COIL	2	Rp1.599.500
33	42150-65J00-000	STOPPER, RR BUMP	2	Rp315.500
34	41341-65J00-000	SEAT, COIL SPRING RUBBER	2	Rp133.500
35	41700-65JA0-000 SUB: 41700B65JA0N000	ABSORBER ASSY, RR SHOCK	2	Rp669.500
36	09103-12090-000	BOLT (12X57)	4	Rp39.500
37	43402-57L51-000 SUB: 43401-65J02-000	HUB ASSY, WHEEL	2	Rp3.181.500
38	09119-12012-000	•BOLT (12X38)	10	Rp14.500
39	DISCONTINUE SUB: 09103-10404-000	BOLT, WHEEL HUB HOUSING	8	-
40	43459-65J00-000	NUT, REAR AXLE	2	Rp75.500
41	43511-65J00-000	DRUM, REAR BRAKE	2	Rp2.232.500
42	DISCONTINUE SUB: 75541-65J00-000	STOPPER, REAR BUMP	2	-
43	DISCONTINUE SUB: 01551-1225A-000	BOLT	6	-
