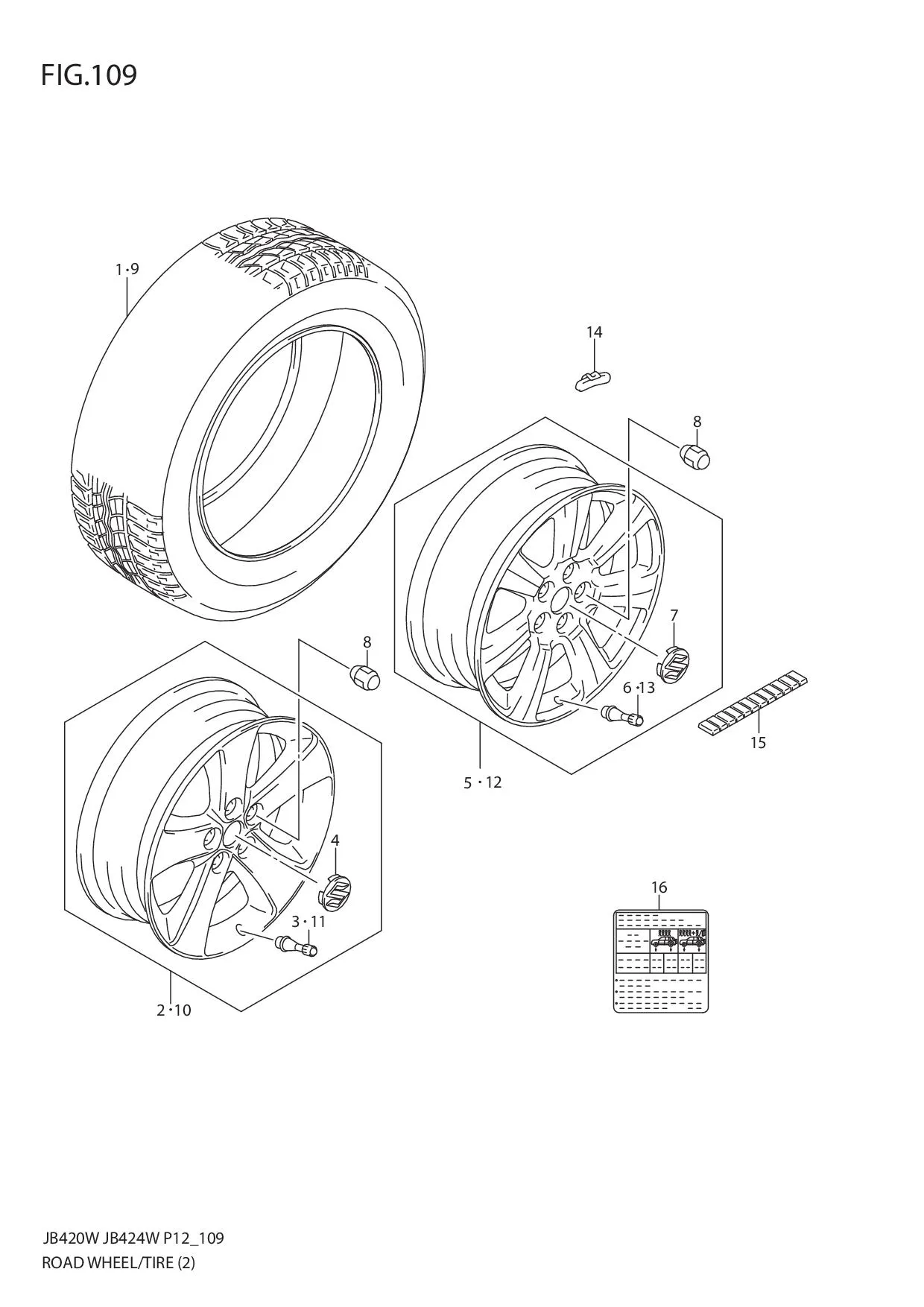

FIG.109 ROAD WHEEL/TIRE (JB424W)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 43110-79K00-000	TIRE (225/60R18)	4	-	JB424W
2-1	DISCONTINUE SUB: 43210B65JA0N27S	WHEEL SET, AL (17X6 1/2J) (SILVER)	4	-	JB420W MODEL CODE:78K0
2-2	DISCONTINUE SUB: 43210B65JA0N27S	WHEEL SET, AL (17X6 1/2J) (SILVER)	4	-	JB420W MODEL CODE:78K1
3	43130-78030-000	•VALVE, TIRE (TR413)	4	Rp62.000
4	43252-83S00-0PG SUB: 43252-63J10-0PG	•CAP, WHEEL CENTER (CHROME)	4	Rp174.500
5	DISCONTINUE SUB: 43201-79800-27S	WHEEL SET, AL (18X7J)(SILVER)	4	-	JB424W
6	43130-78030-000	•VALVE, TIRE (TR413)	4	Rp62.000
7	43252-83S00-0PG SUB: 43252-63J10-0PG	•CAP, WHEEL CENTER (CHROME)	4	Rp174.500
8	09159-12057-000	NUT	20	Rp51.000
9-2	DISCONTINUE SUB: 43110-79K00-000	TIRE, SPARE (225/60R18)	1	-	JB424W
10-1	#N/A	WHEEL SET, SPARE AL (17X6 1/2J)(SILVER)	1	-	JB420W MODEL CODE:78K0
10-2	#N/A	WHEEL SET, SPARE AL (17X6 1/2J)(SILVER)	1	-	JB420W MODEL CODE:78K1
11	43130-78030-000	•VALVE, TIRE (TR413)	1	Rp62.000
12	#N/A	WHEEL SET, SPARE AL (18X7J) (SILVER)	1	-	JB424W
13	43130-78030-000	•VALVE, TIRE (TR413)	1	Rp62.000
14-9	43229-50J10-000	WEIGHT, WHEEL BALANCE (45G)	0	Rp66.500
14-8	DISCONTINUE SUB: 43228-50J10-000	WEIGHT, WHEEL BALANCE (40G)	0	-
14-7	DISCONTINUE SUB: 43227-50J10-000	WEIGHT, WHEEL BALANCE (35G)	0	-
14-4	DISCONTINUE SUB: 43224-50J10-000	WEIGHT, WHEEL BALANCE (20G)	0	-
14-6	DISCONTINUE SUB: 43226-50J10-000	WEIGHT, WHEEL BALANCE (30G)	0	-
14-5	DISCONTINUE SUB: 43225-50J10-000	WEIGHT, WHEEL BALANCE (25G)	0	-
14-3	43223-50J10-000	WEIGHT, WHEEL BALANCE (15G)	0	Rp47.000
14-2	43222-50J10-000	WEIGHT, WHEEL BALANCE (10G)	0	Rp44.000
14-1	DISCONTINUE SUB: 43221-50J10-000	WEIGHT, WHEEL BALANCE (5G)	0	-
15-1	43221-59J00-000	WEIGHT, WHEEL BALANCE (5G)	0	Rp32.000
15-2	43221-59J10-000	WEIGHT, WHEEL BALANCE (10G)	0	Rp40.000
15-3	43221-59J20-000	WEIGHT, WHEEL BALANCE (15G)	0	Rp42.000
15-4	43221-59J30-000	WEIGHT, WHEEL BALANCE (20G)	0	Rp44.000
15-5	43221-59J40-000	WEIGHT, WHEEL BALANCE (25G)	0	Rp47.000
15-6	43221-59J50-000	WEIGHT, WHEEL BALANCE (30G)	0	Rp49.500
15-7	43221-59J60-000	WEIGHT, WHEEL BALANCE (35G)	0	Rp52.500
15-8	43221-59J70-000	WEIGHT, WHEEL BALANCE (40G)	0	Rp54.500
15-9	43221-59J80-000	WEIGHT, WHEEL BALANCE (45G)	0	Rp57.000
15-10	43221-59J90-000	WEIGHT, WHEEL BALANCE (50G)	0	Rp60.000	W/AL WHEEL
16-1	DISCONTINUE SUB: 79161B77K80N000	PLACARD, TIRE INFORMATION	1	-	JB420W
16-2	DISCONTINUE SUB: 79161B79K80N000	PLACARD, TIRE INFORMATION	1	-	JB424W
