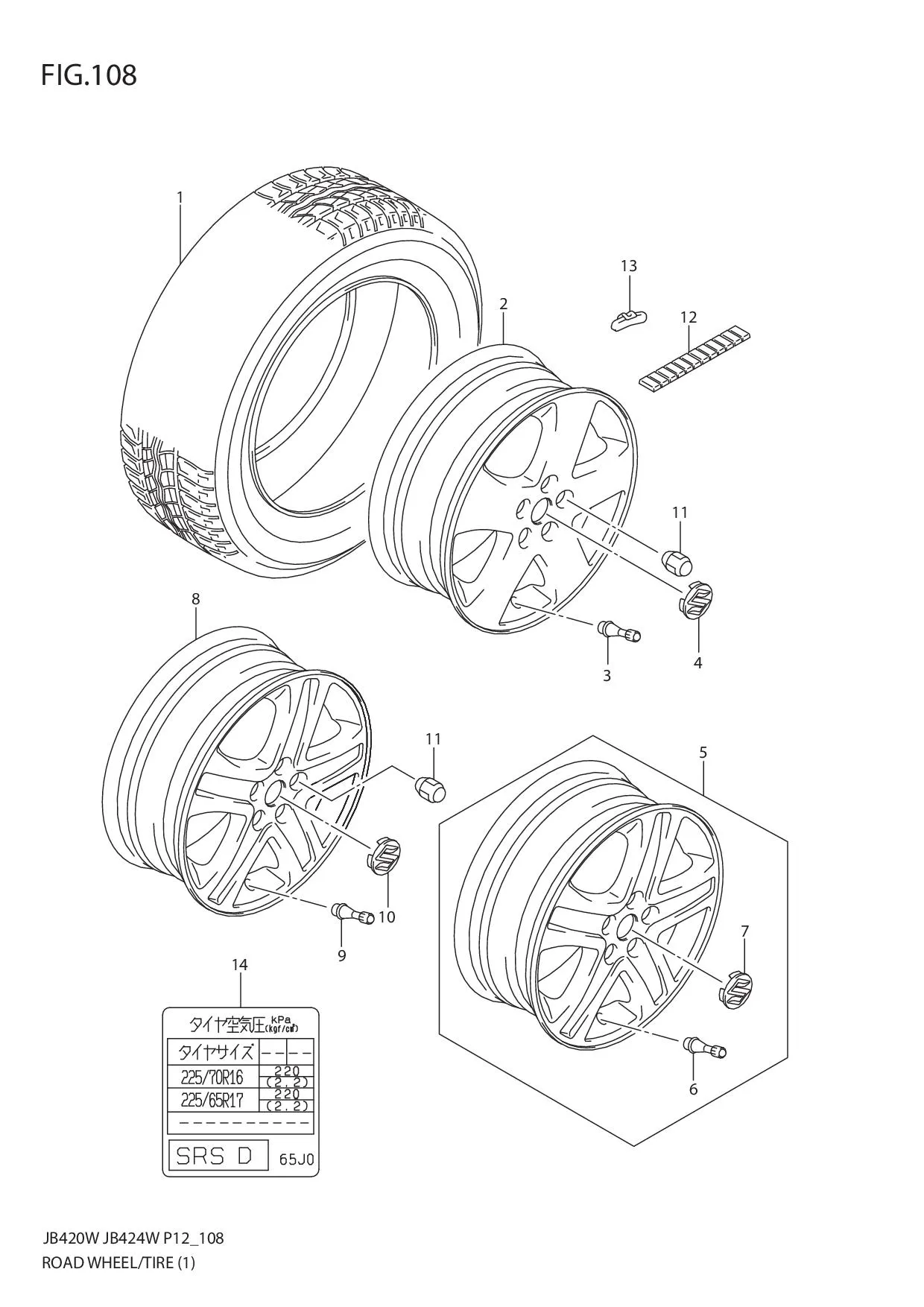

FIG.108 ROAD WHEEL/TIRE (JB420W)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	#N/A	TIRE (225/65R17)	5	-	DX
1-1	#N/A	TIRE (225/70R16)	5	-	STD
2	DISCONTINUE SUB: 43210B65JA0N27S	WHEEL, AL (16X6 1/2J) (SILVER)	5	-	STD
3	43130-78030-000	VALVE, TIRE (TR413)	5	Rp62.000	STD
4	43252-83S00-0PG SUB: 43252-63J10-0PG	CAP, WHEEL CENTER (CHROME)	4	Rp174.500	STD
5-1	DISCONTINUE SUB: 43200-66820-27S	WHEEL SET, AL (17X6 1/2J) (SILVER)	5	-	MODEL CODE:66J0 DX:TO 2008-2
5-2	#N/A	WHEEL SET, AL (17X6 1/2J) (SILVER)	5	-	MODEL CODE:66J1 DX
6	43130-78030-000	•VALVE, TIRE (TR413)	5	Rp62.000	MODEL CODE:66J0 DX:TO 2008-2 MODEL CODE:66J1 DX
7	43252-83S00-0PG SUB: 43252-63J10-0PG	•CAP, WHEEL CENTER (CHROME)	4	Rp174.500	MODEL CODE:66J0 DX:TO 2008-2 MODEL CODE:66J1 DX
8	#N/A	WHEEL, AL (17X6 1/2J) (SILVER)	5	-	MODEL CODE:EX552 DX:FROM 2008-3
9	43130-78030-000	VALVE, TIRE (TR413)	5	Rp62.000	MODEL CODE:EX552 DX:FROM 2008-3
10	43252-83S00-0PG SUB: 43252-63J10-0PG	CAP, WHEEL CENTER (CHROME)	4	Rp174.500	MODEL CODE:EX552 DX:FROM 2008-3
11	09159-12057-000	NUT	20	Rp51.000
12-9	43221-59J80-000	WEIGHT, WHEEL BALANCE (45G)	0	Rp57.000
12-8	43221-59J70-000	WEIGHT, WHEEL BALANCE (40G)	0	Rp54.500
12-7	43221-59J60-000	WEIGHT, WHEEL BALANCE (35G)	0	Rp52.500
12-4	43221-59J30-000	WEIGHT, WHEEL BALANCE (20G)	0	Rp44.000
12-6	43221-59J50-000	WEIGHT, WHEEL BALANCE (30G)	0	Rp49.500
12-5	43221-59J40-000	WEIGHT, WHEEL BALANCE (25G)	0	Rp47.000
12-3	43221-59J20-000	WEIGHT, WHEEL BALANCE (15G)	0	Rp42.000
12-2	43221-59J10-000	WEIGHT, WHEEL BALANCE (10G)	0	Rp40.000
12-1	43221-59J00-000	WEIGHT, WHEEL BALANCE (5G)	0	Rp32.000
13-1	DISCONTINUE SUB: 43221-50J10-000	WEIGHT, WHEEL BALANCE (5G)	0	-
13-2	43222-50J10-000	WEIGHT, WHEEL BALANCE (10G)	0	Rp44.000
13-3	43223-50J10-000	WEIGHT, WHEEL BALANCE (15G)	0	Rp47.000
13-4	DISCONTINUE SUB: 43224-50J10-000	WEIGHT, WHEEL BALANCE (20G)	0	-
13-5	DISCONTINUE SUB: 43225-50J10-000	WEIGHT, WHEEL BALANCE (25G)	0	-
13-6	DISCONTINUE SUB: 43226-50J10-000	WEIGHT, WHEEL BALANCE (30G)	0	-
13-7	DISCONTINUE SUB: 43227-50J10-000	WEIGHT, WHEEL BALANCE (35G)	0	-
13-8	DISCONTINUE SUB: 43228-50J10-000	WEIGHT, WHEEL BALANCE (40G)	0	-
13-9	43229-50J10-000	WEIGHT, WHEEL BALANCE (45G)	0	Rp66.500
13-10	43221-59J90-000	WEIGHT, WHEEL BALANCE (50G)	0	Rp60.000
14	DISCONTINUE SUB: 79161-65J10-000	PLACARD, TIRE INFORMATION	1	-
