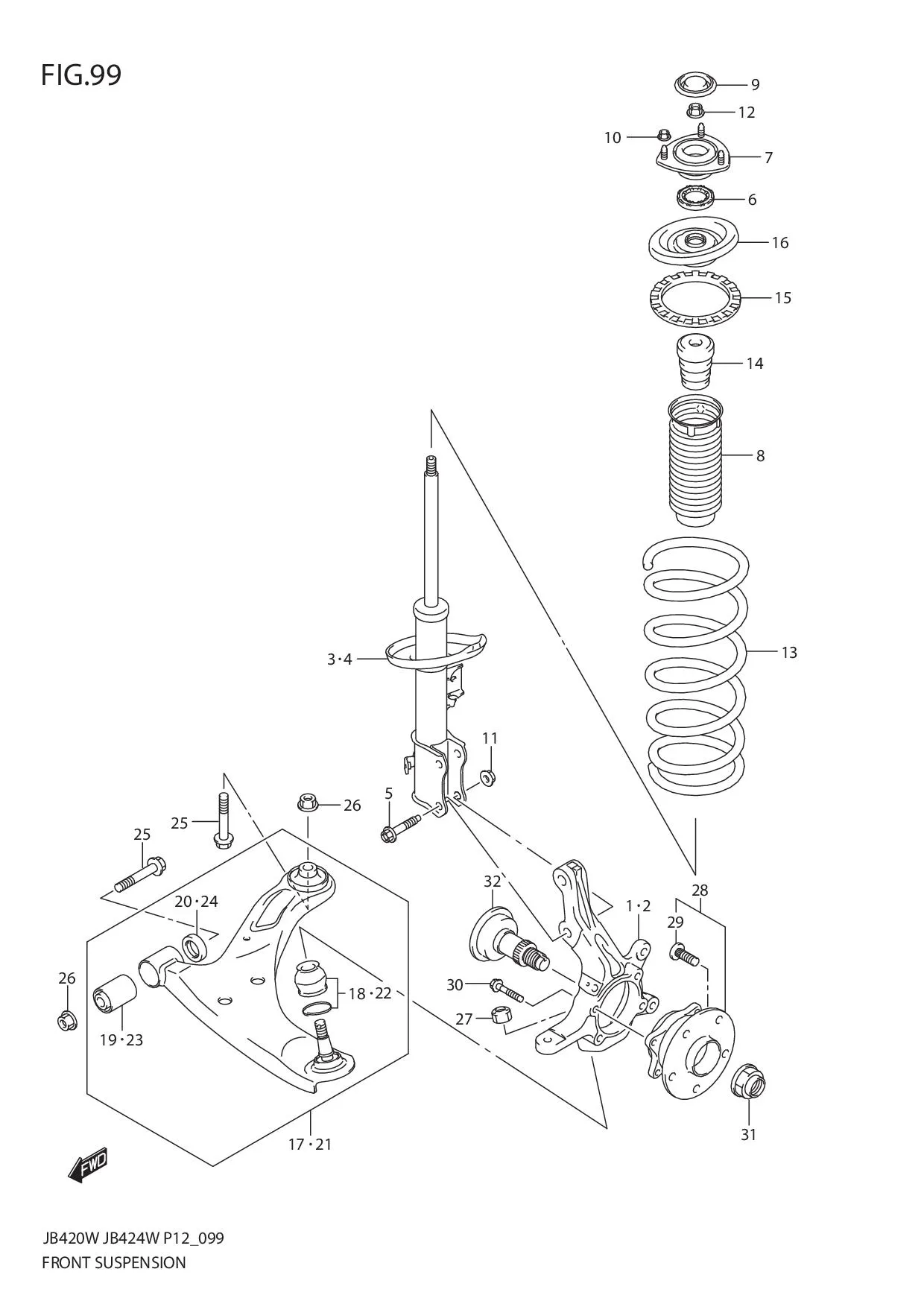

FIG.99 FRONT SUSPENSION

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	45111-65J00-000	KNUCKLE, STEERING RH	1	Rp2.505.500
2	45151-65J00-000	KNUCKLE, STEERING LH	1	Rp2.505.500
3-2	41601-78K11-000	STRUT ASSY, FR SUSPENSION RH	1	Rp2.895.000	TYPE 4
3-1	41601-65JA0-000 SUB: 41601B65JA0N000	STRUT ASSY, FR SUSPENSION RH	1	Rp1.532.000	TYPE 3
4-1	41602-65JA0-000 SUB: 41602B65JA0N000	STRUT ASSY, FR SUSPENSION LH	1	Rp1.532.000	TYPE 3
4-2	41602-78K11-000	STRUT ASSY, FR SUSPENSION LH	1	Rp2.895.000	TYPE 4
5	09103-14025-000	BOLT (14X60)	4	Rp79.000
6-1	41741-78K00-000 SUB: 41741-65J00-000	BEARING, FRONT STRUT	2	Rp189.500	TYPE 3
6-2	41741-78K00-000	BEARING, FRONT STRUT	2	Rp189.500	TYPE 4
7-2	41810-78K00-000	SUPPORT, FRONT STRUT	2	Rp918.000	TYPE 4
7-1	41810-78K00-000 SUB: 41810-65J00-000	SUPPORT, FRONT STRUT	2	Rp918.000	TYPE 3
8	41931-65J00-000	COVER, STRUT DUST	2	Rp221.000
9	41932-65J00-000	CAP, STRUT SUPPORT	2	Rp23.000
10	09159-10117-000	NUT	6	Rp21.000
11	09159-14028-000	NUT	4	Rp40.000
12	09159-14030-000	NUT	2	Rp35.000
13-1	41111-65J50-000 SUB: 41111-65JA0-000	SPRING, FRONT COIL	2	Rp1.583.000	TYPE 3
13-2	DISCONTINUE SUB: 41111B78K50N000	SPRING, FRONT COIL	2	-	TYPE 4
14	42111-65J00-000	STOPPER, BUMP	2	Rp154.500
15	41211-65J00-000	SEAT, COIL SPRING RUBBER UPPER	2	Rp178.500
16	41230-65J00-000	SEAT, COIL SPRING UPPER	2	Rp287.500
17	45201-78K00-000	ARM ASSY, FRONT SUSPENSION RH	1	Rp2.714.000
18	43345-65811-000 SUB: 43345-65810-000	•SEAL SET, DUST	1	Rp353.500
19	45261-65J00-000	•BUSHING, SPNSN ARM FRONT	1	Rp491.500
20	DISCONTINUE SUB: 45531-65J00-000	•STOPPER, RUBBER	1	-
21	45202-78K00-000	ARM ASSY, FRONT SUSPENSION LH	1	Rp2.714.000
22	43345-65811-000 SUB: 43345-65810-000	•SEAL SET, DUST	1	Rp353.500
23	45261-65J00-000	•BUSHING, SPNSN ARM FRONT	1	Rp491.500
24	DISCONTINUE SUB: 45531-65J00-000	•STOPPER, RUBBER	1	-
25	09135-14015-000	BOLT (14X92)	4	Rp94.500
26	09159-14028-000	NUT	4	Rp40.000
27	09159-14029-000	NUT	2	Rp27.000
28	43402-57L51-000 SUB: 43401-65J02-000	HUB ASSY, WHEEL	2	Rp3.181.500
29	09119-12012-000	•BOLT (12X38)	10	Rp14.500
30	DISCONTINUE SUB: 09103-10404-000	BOLT (10X50)	8	-
31	43459-65J00-000	NUT, FRONT AXLE	2	Rp75.500
32	DISCONTINUE SUB: 43441-65J00-000	SPINDLE, FR WHEEL	2	-
