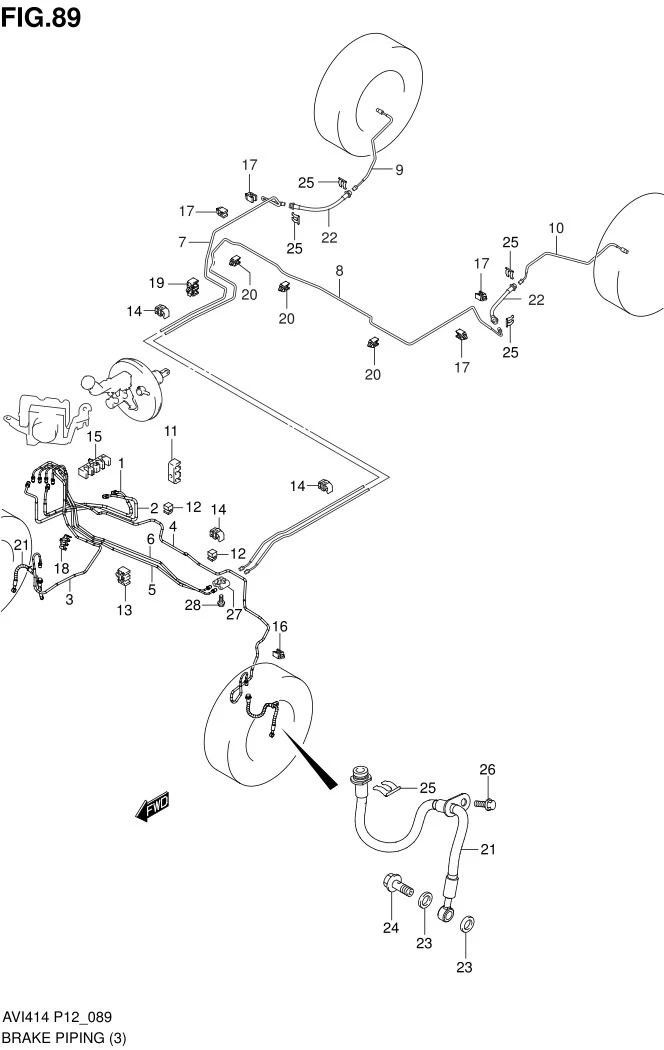

FIG.89 BRAKE PIPING (TYPE 1:W/ABS)

No	No. Part	Description	Qty	Price Per Pcs
1	51410-77M00-000 SUB: 51410B77M00N000	PIPE, MA PRI TO HU	1	Rp39.000
2	51420-77M00-000 SUB: 51420B77M00N000	PIPE, MA SEC TO HU	1	Rp35.000
3	51430-77M00-000 SUB: 51430B77M00N000	PIPE, HU TO FR BRAKE HOSE RH	1	Rp52.000
4	51440-77M00-000 SUB: 51440B77M00N000	PIPE, HU TO FR BRAKE HOSE LH	1	Rp105.000
5	51450-77M00-000 SUB: 51450B77M00N000	PIPE, HU TO JOINT RH	1	Rp50.000
6	51460-77M00-000 SUB: 51460B77M00N000	PIPE, HU TO JOINT LH	1	Rp46.000
7	51470-77M00-000 SUB: 51470B77M00N000	PIPE, JOINT TO RR BK HOSE RH	1	Rp87.000
8	51480-77M00-000 SUB: 51480B77M00N000	PIPE, JOINT TO RR BK HOSE LH	1	Rp128.000
9	51510-77M00-000 SUB: 51510B77M00N000	PIPE, RR BK HOSE TO RR W/C RH	1	Rp40.500
10	51520-77M00-000 SUB: 51520B77M00N000	PIPE, RR BK HOSE TO RR W/C LH	1	Rp38.500
11	51751-77M00-000 SUB: 51751B77M00N000	CLAMP, BRAKE PIPE 3	1	Rp6.500
12	51752-77M00-000 SUB: 51752B77M00N000	CLAMP, BRAKE PIPE DASH 1	2	Rp5.500
13	51751-77M10-000 SUB: 51751-76G00-000	CLAMP, BRAKE PIPE SIDE MEMBER	1	Rp5.500
14	51751-77M10-000 SUB: 51751B77M10N000	CLAMP, BRAKE PIPE MAIN FL	3	Rp5.500
15	51761-77M10-000 SUB: 51761-62J40-000	CLAMP, BRAKE PIPE 4	1	Rp6.500
16	51761-77M00-000 SUB: 51761B77M00N000	CLAMP, BRAKE PIPE SIDE MEMBER	1	Rp5.500
17	51761-77M40-000 SUB: 51761-79J00-000	CLAMP, BRAKE PIPE RR SIDE	4	Rp6.500
18	51761-77M20-000 SUB: 51761B77M20N000	CLAMP, BRAKE PIPE SIDE MEMBER	1	Rp6.500
19	51761-77M30-000 SUB: 51761B77M30N000	CLAMP, BRAKE PIPE REAR FL	1	Rp6.500
20	51761-77M40-000 SUB: 51761B77M40N000	CLAMP, BRAKE PIPE REAR FL	3	Rp6.500
21	51550-58M00-000 SUB: 51550B58M00N000	HOSE, FR BRAKE FLEXIBLE	2	Rp282.000
22	51570-81K00-000 SUB: 51570B81K00N000	HOSE, RR BRAKE FLEXIBLE	2	Rp56.000
23	09161-10009-000	WASHER	4	Rp12.500
24	51561M55K00-000 SUB: 09360-10046-000	BOLT, UNION	2	Rp8.500
25	09383M13004-000 SUB: 09383-13003-000	E RING	6	Rp7.000
26	01551-0816C-000	BOLT	2	Rp13.500
27	DISCONTINUE SUB: 51630B81K00N000	JOINT, BRAKE 4 WAY	1	-
28	02162-0625A-000	SCREW	1	Rp3.500
