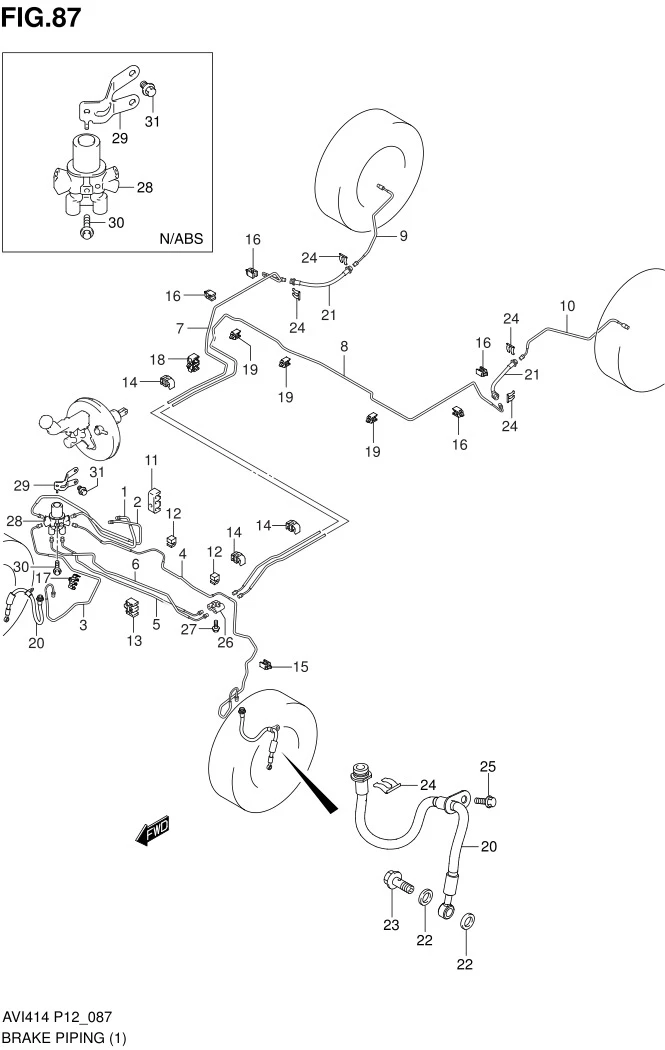

FIG.87 BRAKE PIPING (TYPE 1:N/ABS)

FIG.87 BRAKE PIPING (TYPE 1:N/ABS)
No No. Part Description Qty Price Per Pcs Remarks
1 51410-77M10-000
SUB: 51410B77M10N000		 PIPE, MA PRI TO PV 1 Rp39.000
2 51420-77M10-000
SUB: 51420B77M10N000		 PIPE, MA SEC TO PV 1 Rp29.500
3 51430-77M10-000
SUB: 51430B77M10N000		 PIPE, PV TO FR BK HOSE RH 1 Rp47.500
4 51440-77M10-000
SUB: 51440B77M10N000		 PIPE, PV TO FR BK HOSE LH 1 Rp76.000
5 51450-77M10-000
SUB: 51450B77M10N000		 PIPE, PV TO JOINT RH 1 Rp42.000
6 51460-77M10-000
SUB: 51460B77M10N000		 PIPE, PV TO JOINT LH 1 Rp44.000
7 51470-77M00-000
SUB: 51470B77M00N000		 PIPE, JOINT TO RR BK HOSE RH 1 Rp87.000
8 51480-77M00-000
SUB: 51480B77M00N000		 PIPE, JOINT TO RR BK HOSE LH 1 Rp128.000
9 51510-77M00-000
SUB: 51510B77M00N000		 PIPE, RR BK HOSE TO RR W/C RH 1 Rp40.500
10 51520-77M00-000
SUB: 51520B77M00N000		 PIPE, RR BK HOSE TO RR W/C LH 1 Rp38.500
11-2 51751-77M00-000
SUB: 51751B77M00N000		 CLAMP, BRAKE PIPE 3 1 Rp6.500 FROM MHYKZE81SDJ120861
11-1 51751-77M00-000
SUB: 51751-65J40-000		 CLAMP, BRAKE PIPE 3 1 Rp6.500 TO MHYKZE81SDJ120860
12-1 51752-77M00-000
SUB: 51752-70B00-000		 CLAMP, BRAKE PIPE DASH 1 2 Rp5.500 TO MHYKZE81SDJ120860
12-2 51752-77M00-000
SUB: 51752B77M00N000		 CLAMP, BRAKE PIPE DASH 1 2 Rp5.500 FROM MHYKZE81SDJ120861
13 51751-77M10-000
SUB: 51751-76G00-000		 CLAMP, BRAKE PIPE SIDE MEMBER 1 Rp5.500
14-1 51751-77M10-000
SUB: 51751-76G00-000		 CLAMP, BRAKE PIPE MAIN FL 3 Rp5.500 TO MHYKZE81SDJ120860
14-2 51751-77M10-000
SUB: 51751B77M10N000		 CLAMP, BRAKE PIPE MAIN FL 3 Rp5.500 FROM MHYKZE81SDJ120861
15-1 51761-77M00-000
SUB: 51761-62J70-000		 CLAMP, BRAKE PIPE SIDE MEMBER 1 Rp5.500 TO MHYKZE81SDJ120860
15-2 51761-77M00-000
SUB: 51761B77M00N000		 CLAMP, BRAKE PIPE SIDE MEMBER 1 Rp5.500 FROM MHYKZE81SDJ120861
16 51761-77M40-000
SUB: 51761-79J00-000		 CLAMP, BRAKE PIPE RR SIDE 4 Rp6.500
17-2 51761-77M20-000
SUB: 51761B77M20N000		 CLAMP, BRAKE PIPE SIDE MEMBER 1 Rp6.500 FROM MHYKZE81SDJ120861
17-1 51761-77M20-000
SUB: 51761-68L00-000		 CLAMP, BRAKE PIPE SIDE MEMBER 1 Rp6.500 TO MHYKZE81SDJ120860
18-1 51761-77M30-000
SUB: 51761M76G00-000		 CLAMP, BRAKE PIPE REAR FL 1 Rp6.500 TO MHYKZE81SDJ120860
18-2 51761-77M30-000
SUB: 51761B77M30N000		 CLAMP, BRAKE PIPE REAR FL 1 Rp6.500 FROM MHYKZE81SDJ120861
19-1 51761-77M40-000
SUB: 51761-79J00-000		 CLAMP, BRAKE PIPE REAR FL 3 Rp6.500 TO MHYKZE81SDJ120860
19-2 51761-77M40-000
SUB: 51761B77M40N000		 CLAMP, BRAKE PIPE REAR FL 3 Rp6.500 FROM MHYKZE81SDJ120861
20 51550-58M00-000
SUB: 51550B58M00N000		 HOSE, FR BRAKE FLEXIBLE 2 Rp282.000
21 51570-81K00-000
SUB: 51570B81K00N000		 HOSE, RR BRAKE FLEXIBLE 2 Rp56.000
22 09161-10009-000 WASHER 4 Rp12.500
23 51561M55K00-000
SUB: 09360-10046-000		 BOLT, UNION 2 Rp8.500
24 09383M13004-000
SUB: 09383-13003-000		 E RING 6 Rp7.000
25 01551-0816C-000 BOLT 2 Rp13.500
26 DISCONTINUE
SUB: 51630B81K00N000		 JOINT, BRAKE 4 WAY 1 -
27 02162-0625A-000 SCREW 1 Rp3.500
28 51910M60M01-000 VALVE ASSY, PROPORTIONING 1 Rp731.500
29 51952-77M00-000
SUB: 51952B77M00N000		 BRACKET PV 1 Rp13.500
30 01550-0635A-000
SUB: 01550B0635AN000		 BOLT 1 Rp3.000
31 01551-0812A-000 BOLT 2 Rp18.500
