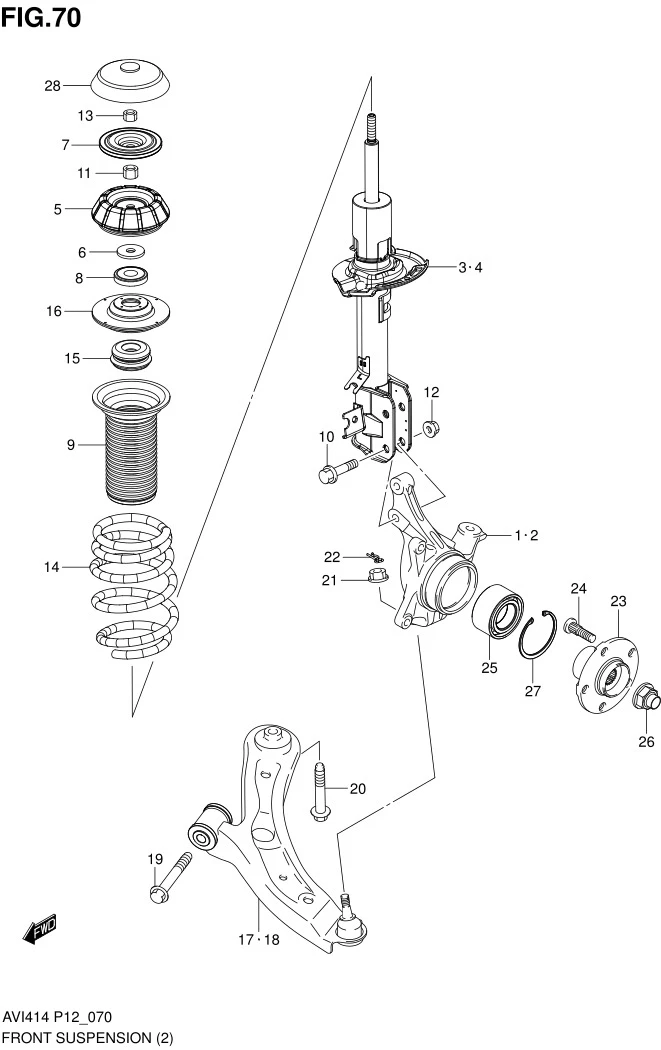

FIG.70 FRONT SUSPENSION (TYPE 2,TYPE 3)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	45111-77M00-000 SUB: 45111B77M00N000	KNUCKLE, STEERING RH	1	Rp867.500	W/ABS
1-1	45111-77MA0-000 SUB: 45111B77MA0N000	KNUCKLE, STEERING RH	1	Rp684.000	N/ABS
2-1	45151-77MA0-000 SUB: 45151B77MA0N000	KNUCKLE, STEERING LH	1	Rp684.000	N/ABS
2-2	45151-77M00-000 SUB: 45151B77M00N000	KNUCKLE, STEERING LH	1	Rp867.500	W/ABS
3	41601-77M11-000 SUB: 41601B77M00N000	STRUT ASSY, FR SUSPENSION RH	1	Rp1.311.000
4	41602-77M11-000 SUB: 41602B77M00N000	STRUT ASSY, FR SUSPENSION LH	1	Rp1.311.000
5	41710M74L00-000	SUPPORT, FRONT STRUT	2	Rp219.000
6	41711M57K00-000	PLATE, STRUT BEARING	2	Rp10.500
7	41720M83K10-000 SUB: 41720B77M00N000	STOPPER, FRONT STRUT REBOUND	2	Rp62.500
8	41742M57K10-000 SUB: 41742M57K00-000	BEARING, FRONT STRUT	2	Rp81.000
9	41931M68L10-000 SUB: 41931M68L00-000	COVER, STRUT DUST	2	Rp104.000
10	09103-12118-000	BOLT (12X50)	4	Rp33.000
11	41721M83K00-000	NUT, STRUT SUPPORT LOWER	2	Rp10.000
12	08316-1012A-000 SUB: 09159-12064-000	NUT	4	Rp6.500
13	08310-0012A-000	NUT	2	Rp17.500
14	41111M60M01-000 SUB: 41111-77M00-000	SPRING, FRONT COIL	2	Rp487.500
15	42111M74L00-000	STOPPER, FRONT BUMP	2	Rp103.000
16	41230M74L00-000 SUB: 41230-77M00-000	SEAT, FRONT SPRING UPPER	2	Rp103.000
17	45201M60M01-000	ARM ASSY, FRONT SUSPENSION RH	1	Rp1.571.500
18	45202M60M01-000	ARM ASSY, FRONT SUSPENSION LH	1	Rp1.571.500
19	09135-14011-000	BOLT (14X90)	2	Rp65.500
20	09135-14018-000	BOLT (14X77)	2	Rp70.500
21	09159-12069-000	NUT	2	Rp23.000
22	09385-12002-000 SUB: 09385B12002N000	CLIP	2	Rp4.500
23	43421-77M00-000 SUB: 43421B77M00N000	HUB, FRONT WHEEL	2	Rp522.000
24	09119-12012-000	BOLT (12X38)	10	Rp14.500
25-1	43440-77MA0-000 SUB: 43440B77MA0N000	BEARING, FRONT WHEEL	2	Rp460.000	N/ABS
25-2	43440-77M00-000 SUB: 43440B77M00N000	BEARING, FRONT WHEEL	2	Rp522.500	W/ABS
26	43459-65J00-000	NUT, FRONT AXLE	2	Rp75.500
27	09381-84004-000	CIRCLIP	2	Rp53.500
28	41724-58M00-000	CAP, STRUT ROD	2	Rp33.000
