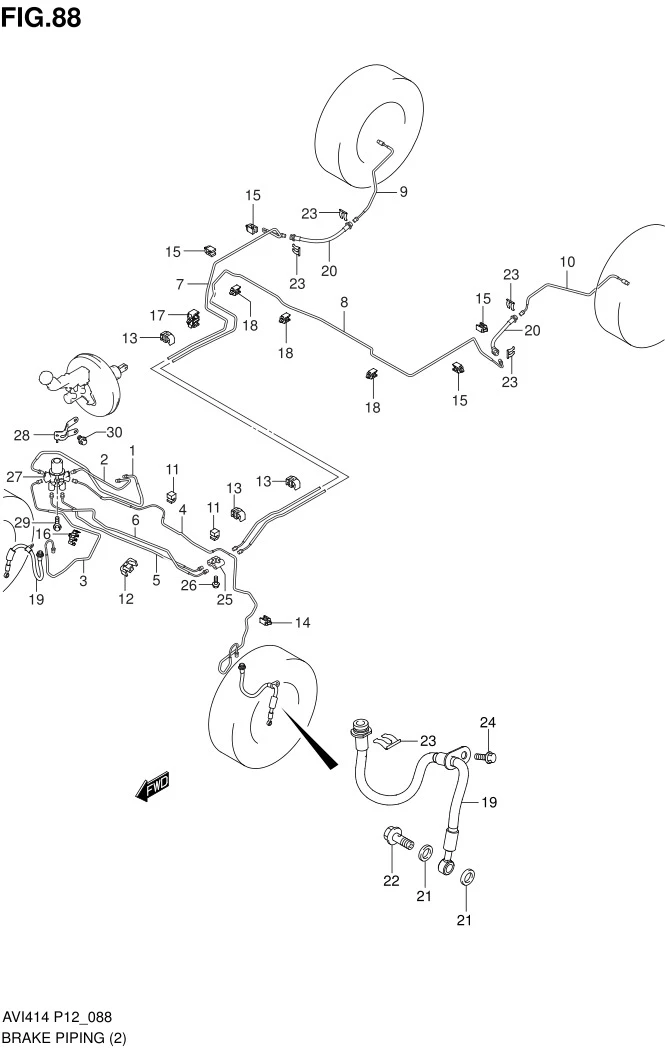

FIG.88 BRAKE PIPING (TYPE 2,TYPE 3:N/ABS)

No	No. Part	Description	Qty	Price Per Pcs
1	51410-77M10-000 SUB: 51410B77M10N000	PIPE, MA PRI TO PV	1	Rp39.000
2	51420-77MA0-000 SUB: 51420B77MA0N000	PIPE, MA SEC TO PV	1	Rp25.500
3	51430-77M10-000 SUB: 51430B77M10N000	PIPE, PV TO FR BK HOSE RH	1	Rp47.500
4	51440-77MA0-000 SUB: 51440B77MA0N000	PIPE, PV TO FR BK HOSE LH	1	Rp117.500
5	51450-77M10-000 SUB: 51450B77M10N000	PIPE, PV TO JOINT RH	1	Rp42.000
6	51460-77M10-000 SUB: 51460B77M10N000	PIPE, PV TO JOINT LH	1	Rp44.000
7	51470-77M00-000 SUB: 51470B77M00N000	PIPE, JOINT TO RR BK HOSE RH	1	Rp87.000
8	51480-77M00-000 SUB: 51480B77M00N000	PIPE, JOINT TO RR BK HOSE LH	1	Rp128.000
9	51510-77M00-000 SUB: 51510B77M00N000	PIPE, RR BK HOSE TO RR W/C RH	1	Rp40.500
10	51520-77M00-000 SUB: 51520B77M00N000	PIPE, RR BK HOSE TO RR W/C LH	1	Rp38.500
11	51752-77M00-000 SUB: 51752B77M00N000	CLAMP, BRAKE PIPE DASH 1	2	Rp5.500
12	51751-77M10-000 SUB: 51751B77M10N000	CLAMP, BRAKE PIPE SIDE MEMBER	1	Rp5.500
13	51751-77M10-000 SUB: 51751B77M10N000	CLAMP, BRAKE PIPE MAIN FL	3	Rp5.500
14	51761-77M00-000 SUB: 51761B77M00N000	CLAMP, BRAKE PIPE SIDE MEMBER	1	Rp5.500
15	51761-77M40-000 SUB: 51761B77M40N000	CLAMP, BRAKE PIPE RR SIDE	4	Rp6.500
16	51761-77M20-000 SUB: 51761B77M20N000	CLAMP, BRAKE PIPE SIDE MEMBER	1	Rp6.500
17	51761-77M30-000 SUB: 51761B77M30N000	CLAMP, BRAKE PIPE REAR FL	1	Rp6.500
18	51761-77M40-000 SUB: 51761B77M40N000	CLAMP, BRAKE PIPE REAR FL	3	Rp6.500
19	51550-58M00-000 SUB: 51550B58M00N000	HOSE, FR BRAKE FLEXIBLE	2	Rp282.000
20	51570-81K00-000 SUB: 51570B81K00N000	HOSE, RR BRAKE FLEXIBLE	2	Rp56.000
21	09161-10009-000	WASHER	4	Rp12.500
22	51561M55K00-000 SUB: 09360-10046-000	BOLT, UNION	2	Rp8.500
23	09383M13004-000 SUB: 09383-13003-000	E RING	6	Rp7.000
24	01551-0816C-000	BOLT	2	Rp13.500
25	DISCONTINUE SUB: 51630B81K00N000	JOINT, BRAKE 4 WAY	1	-
26	02162-0625A-000	SCREW	1	Rp3.500
27	51910M60M01-000	VALVE ASSY, PROPORTIONING	1	Rp731.500
28	51952-77M00-000 SUB: 51952B77M00N000	BRACKET PV	1	Rp13.500
29	01550-0635A-000 SUB: 01550B0635AN000	BOLT	1	Rp3.000
30	01551-0812A-000	BOLT	2	Rp18.500
