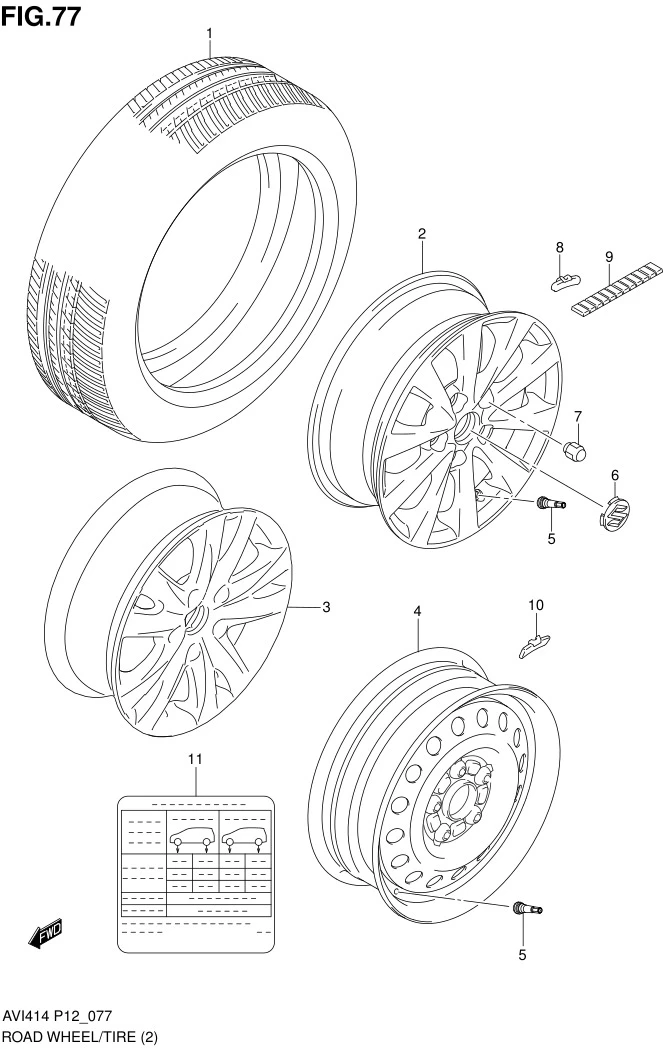

FIG.77 ROAD WHEEL/TIRE (GL,GX)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 43110-77M10-000	TIRE (185/65R15 88S)	5	-	TYPE 3
1-1	DISCONTINUE SUB: 43110B77M00N000	TIRE (185/65R15 88S)	5	-	TYPE 1, TYPE 2
2	43210-77M50-27N SUB: 43210B77M50N27N	WHEEL, ALUMI (15X5 1/2J)(SILVER)	4	Rp1.119.000	DLX,SDX MARK:EXCEL
3	43210-77M60-27N	WHEEL, ALUMI (15X5 1/2J)(SILVER)	4	Rp1.685.500	TYPE 3
4	43210-77M00-09L SUB: 43210B77M00N09L	WHEEL (15X5 1/2J) (BLACK)	1	Rp925.500	MARK:D7N
5	43130-60E10-000	VALVE (TR414) (BS)	5	Rp57.000	MADE IN JAPAN
6	43252-83S00-0PG SUB: 43252-63J10-0PG	CAP, WHEEL CENTER (CHROME)	4	Rp174.500
7	09159-12079-000 SUB: 09159B12050N000	NUT, WHEEL	20	Rp23.500
8-3	43221-59J30-000	WEIGHT, WHEEL BALANCE (20G)	0	Rp44.000	W/ALUMI WHEEL
8-9	43221-59J90-000	WEIGHT, WHEEL BALANCE (50G)	0	Rp60.000	W/ALUMI WHEEL
8-8	43221-59J80-000	WEIGHT, WHEEL BALANCE (45G)	0	Rp57.000	W/ALUMI WHEEL
8-7	43221-59J70-000	WEIGHT, WHEEL BALANCE (40G)	0	Rp54.500	W/ALUMI WHEEL
8-6	43221-59J60-000	WEIGHT, WHEEL BALANCE (35G)	0	Rp52.500	W/ALUMI WHEEL
8-5	43221-59J50-000	WEIGHT, WHEEL BALANCE (30G)	0	Rp49.500	W/ALUMI WHEEL
8-4	43221-59J40-000	WEIGHT, WHEEL BALANCE (25G)	0	Rp47.000	W/ALUMI WHEEL
8-3	43221-59J20-000	WEIGHT, WHEEL BALANCE (15G)	0	Rp42.000	W/ALUMI WHEEL
8-2	43221-59J10-000	WEIGHT, WHEEL BALANCE (10G)	0	Rp40.000	W/ALUMI WHEEL
8-1	43221-59J00-000	WEIGHT, WHEEL BALANCE (5G)	0	Rp32.000	W/ALUMI WHEEL
9-1	43221-73H10-000	WEIGHT, WHEEL BALANCE (5G)	0	Rp33.000	W/ALUMI WHEEL
9-9	DISCONTINUE SUB: 43231-54G10-000	WEIGHT, WHEEL BALANCE (45G)	0	-	W/ALUMI WHEEL
9-8	DISCONTINUE SUB: 43228-73H10-000	WEIGHT, WHEEL BALANCE (40G)	0	-	W/ALUMI WHEEL
9-7	DISCONTINUE SUB: 43227-73H10-000	WEIGHT, WHEEL BALANCE (35G)	0	-	W/ALUMI WHEEL
9-6	DISCONTINUE SUB: 43226-73H10-000	WEIGHT, WHEEL BALANCE (30G)	0	-	W/ALUMI WHEEL
9-5	DISCONTINUE SUB: 43225-73H10-000	WEIGHT, WHEEL BALANCE (25G)	0	-	W/ALUMI WHEEL
9-4	DISCONTINUE SUB: 43224-73H10-000	WEIGHT, WHEEL BALANCE (20G)	0	-	W/ALUMI WHEEL
9-3	DISCONTINUE SUB: 43223-73H10-000	WEIGHT, WHEEL BALANCE (15G)	0	-	W/ALUMI WHEEL
9-2	DISCONTINUE SUB: 43222-73H10-000	WEIGHT, WHEEL BALANCE (10G)	0	-	W/ALUMI WHEEL
10-1	DISCONTINUE SUB: 43221-73H00-000	WEIGHT, WHEEL BALANCE (5G)	0	-	W/STEEL WHEEL
10-2	DISCONTINUE SUB: 43222-73H00-000	WEIGHT, WHEEL BALANCE (10G)	0	-	W/STEEL WHEEL
10-3	DISCONTINUE SUB: 43223-73H00-000	WEIGHT, WHEEL BALANCE (15G)	0	-	W/STEEL WHEEL
10-4	DISCONTINUE SUB: 43224-73H00-000	WEIGHT, WHEEL BALANCE (20G)	0	-	W/STEEL WHEEL
10-5	DISCONTINUE SUB: 43225-73H00-000	WEIGHT, WHEEL BALANCE (25G)	0	-	W/STEEL WHEEL
10-6	DISCONTINUE SUB: 43226-73H00-000	WEIGHT, WHEEL BALANCE (30G)	0	-	W/STEEL WHEEL
10-7	DISCONTINUE SUB: 43227-73H00-000	WEIGHT, WHEEL BALANCE (35G)	0	-	W/STEEL WHEEL
10-8	DISCONTINUE SUB: 43228-73H00-000	WEIGHT, WHEEL BALANCE (40G)	0	-	W/STEEL WHEEL
10-9	DISCONTINUE SUB: 43231-73H00-000	WEIGHT, WHEEL BALANCE (45G)	0	-	W/STEEL WHEEL
11	DISCONTINUE SUB: 79161B77M00N000	PLACARD, TIRE INFORMATION	1	-
