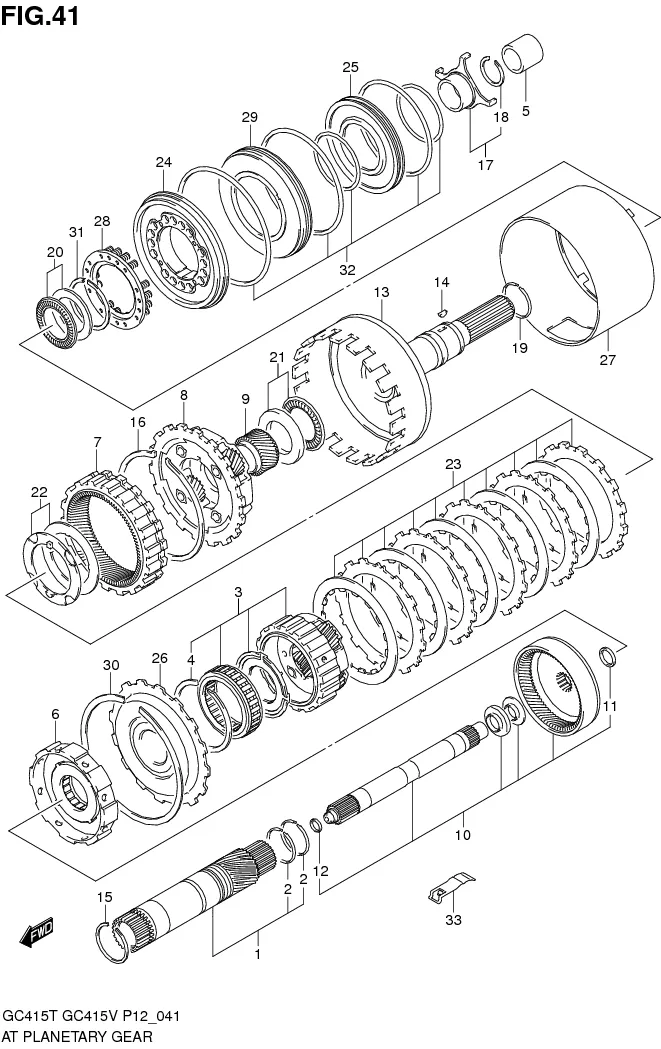

FIG.41 AT PLANETARY GEAR (AT)

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 24901-57B01-000	GEAR ASSY, PLANETARY SUN	1	-
2	29796-57B00-000	.RING, SEAL SUN GEAR	2	Rp251.500
3	DISCONTINUE SUB: 24902-52D10-000	GEAR ASSY, FRONT PLANETARY	1	-
4	24993-57B00-000	.RING, RETAINING ONE WAY CL	1	Rp127.500
5	24922-57BG0-000	SPACER, SENSOR ROTOR	1	Rp231.500
6	DISCONTINUE SUB: 24931-68D70-000	HUB ASSY, B2 BRAKE	1	-
7	DISCONTINUE SUB: 24943-57B00-000	GEAR, FRONT PLANETARY RING	1	-
8	DISCONTINUE SUB: 24944-52D10-000	GEAR, REAR PLANETARY CARRIER	1	-
9	DISCONTINUE SUB: 24946-57B00-000	GEAR, PLANETARY SUN RR	1	-
10	DISCONTINUE SUB: 24950-57B00-000	SHAFT ASSY, INNER	1	-
11	24995-57B00-000	.RING, RITAINING INNER SHAFT	1	Rp131.500
12	29795-57B00-000	.RING, SEAL SLEEVE	1	Rp96.000
13	DISCONTINUE SUB: 24952-57BG1-000	SHAFT ASSY, OUTPUT	1	-
14	24971-57B00-000	KEY, WOODRUFF	1	Rp110.000
15	24991-57B00-000	RING, RETAINING DIRECT CL	1	Rp130.000
16	24992-57B00-000	RING, RETAINING FR PLNTY RING	1	Rp173.000
17	DISCONTINUE SUB: 24921-61JT0-000	ROTOR SET, SENSOR	1	-
18	24994-57B00-000	.RING, RETAINING ROTOR	1	Rp127.000
19	29794-57B00-000	RING, SEAL OUTPUT SHAFT	1	Rp233.000
20	24962-57BT0-000	BEARING SET, THRUST NO.4	1	Rp481.000
21	DISCONTINUE SUB: 26663-57BT0-000	BEARING SET, THRUST NO.9	1	-
22	29945-57BT0-000	WASHER SET, THRUST PLANETARY	1	Rp338.000
23	26811-65DU0-000	PLATE SET,1ST & REV BRAKE	1	Rp8.085.500
24	DISCONTINUE SUB: 26821-57B00-000	PISTON, REV BRAKE	1	-
25	26822-57B00-000	PISTON, SECONDARY REV	1	Rp764.000
26	DISCONTINUE SUB: 26831-57B00-000	PLATE, REV BRAKE REACTION	1	-
27	DISCONTINUE SUB: 26832-85FA0-000	TUBE, BRAKE APPLY	1	-
28	DISCONTINUE SUB: 26841-57B00-000	SPRING, BRAKE PSTN RTN	1	-
29	DISCONTINUE SUB: 26861-57B00-000	SLEEVE, REACTION	1	-
30	26891-57B00-000	RING, RETAINING REACTION PLEATE	1	Rp200.500
31	28949-57B00-000	RING, SNAP B1 BRAKE	1	Rp134.500
32	29729-65DT0-000	O RING SET, REV BRAKE PISTON	1	Rp709.500
33	DISCONTINUE SUB: 29622-57B00-000	SPRING, LEAF	1	-
