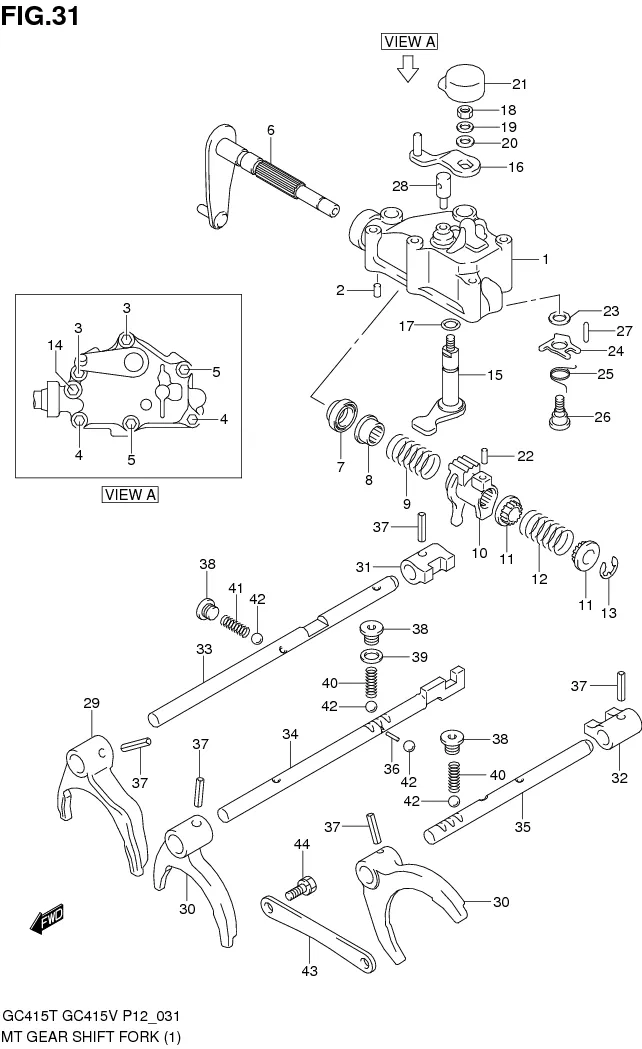

FIG.31 MT GEAR SHIFT FORK (MT:TYPE 1)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	25121-61J00-000	CASE, GEAR SHIFT LEVER	1	Rp287.000
2	04221-06129-000	PIN	2	Rp12.500
3	02162-0625A-000	SCREW	2	Rp3.500
4	01550-0645A-000	BOLT	2	Rp13.000
5	01550-0660A-000	BOLT	2	Rp20.000
6	DISCONTINUE SUB: 25520-61J00-000	SHAFT, GEAR SHIFT LEVER	1	-
7	09283-17022-000	SEAL, OIL (17X28X7)	1	Rp55.000
8	25581-77500-000	HOLDER, SELECT RETURN LOW	1	Rp42.000
9	09440-24011-000	SPRING	1	Rp180.500
10	25540-77501-000 SUB: 25541-77501-000	LEVER, GEAR SHIFT	1	Rp442.000
11	25582-77500-000	HOLDER, SELECT RETURN REV	2	Rp42.000
12	09440-24010-000	SPRING	1	Rp180.500
13	08332-1110A-000	E RING	1	Rp12.500
14	25527-77500-000	BOLT, SHAFT LOCATING	1	Rp35.500
15	25530-61J00-000	SHAFT, GEAR SELECT	1	Rp232.000
16	DISCONTINUE SUB: 25535-61J00-000	LEVER, GEAR SELECT	1	-
17	09286-09001-000	SEAL, OIL (9.2X14X2.8)	1	Rp13.500
18	08310-0008A-000 SUB: 08310M0008A-000	NUT	1	Rp12.500
19	09162-08008-000	LOCK WASHER	1	Rp16.500
20	08322M0108A-000	WASHER	1	Rp5.500
21	25536-84200-000	BOOT, SELECT SHAFT	1	Rp27.500
22	09261-05011-000	PIN (5X19.8)	1	Rp30.000
23	09181-10167-000	WASHER (10X18X1)	1	Rp11.500
24	25545-77500-000	YOKE, REV SHIFT LIMIT	1	Rp59.000
25	09448-16031-000	SPRING	1	Rp24.000
26	25546-77500-000	RETAINER, LIMIT YOKE	1	Rp56.000
27	09261-05011-000	PIN (5X19.8)	1	Rp30.000
28	24821-09001-000	PLUG, BREATHER	1	Rp54.000
29	25211-77501-000	FORK, LOW SPEED GEAR SHIFT	1	Rp544.000
30	25221-77502-000	FORK, HIGH & REV GEAR SHIFT	2	Rp487.500
31	25241-77500-000	YOKE, LOW SPEED GEAR SHIFT	1	Rp232.500
32	25261-77501-000	YOKE,5TH & REV GEAR SHIFT	1	Rp232.500
33-1	DISCONTINUE SUB: 25411B77500N000	SHAFT, LOW SPEED GEAR SHIFT	1	-	EXC/EURO 2
33-2	25411-775A0-000	SHAFT, LOW SPEED GEAR SHIFT	1	Rp74.000	EURO 2
34-1	25420-77500-000	SHAFT, HIGH SPEED GEAR SHIFT	1	Rp596.000	EXC/EURO 2
34-2	25420-775A0-000	SHAFT, HIGH SPEED GEAR SHIFT	1	Rp74.500	EURO 2
35-2	25451-775A0-000	SHAFT, REV GEAR SHIFT	1	Rp78.000	EURO 2
35-1	25451-77500-000 SUB: 25451B77500N000	SHAFT, REV GEAR SHIFT	1	Rp41.500	EXC/EURO 2
36	09261-03017-000	ROLLER (3X12.5)	1	Rp15.000
37	09205-05012-000	SPRING PIN (5X25)	5	Rp14.000
38	09248-12005-000	PLUG	3	Rp34.000
39	09168-12020-000	WASHER (12X18X1.8)	1	Rp18.500
40-1	DISCONTINUE SUB: 25415-77500-000	SPRING, LOCATING NO.1	1	-	EXC/EURO 2
40-2	25415-52S00-000 SUB: 25415-775A0-000	SPRING, LOCATING NO.1	2	Rp35.000	EURO 2
41-1	25415-83000-000	SPRING, LOCATING NO.2	1	Rp29.500	EXC/EURO 2
41-2	25425-775A0-000	SPRING, LOCATING NO.2	1	Rp29.500	EURO 2
42	06111-12004-000	BALL	5	Rp14.000
43	25481-77500-000	PLATE, SHAFT STOP	1	Rp46.000
44	09117-08007-000	BOLT (8X18)	2	Rp16.500
