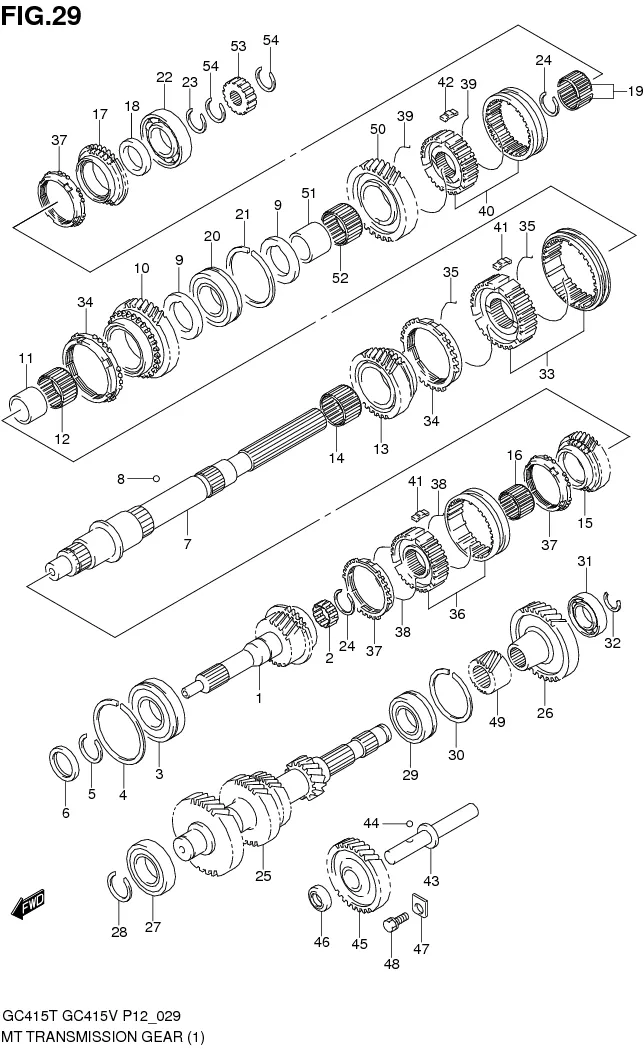

FIG.29 MT TRANSMISSION GEAR (MT:TYPE 1)

No	No. Part	Description	Qty	Price Per Pcs
1	24110-77500-000	SHAFT, INPUT	1	Rp2.484.000
2	09263-20056-000	BEARING (20X26X16.8)	1	Rp102.000
3	09262-28005-000	BEARING (28X68X18)	1	Rp409.000
4	09380-68001-000	RING, SNAP	1	Rp38.500
5	09380-28007-000	CIRCLIP	1	Rp24.500
6	09283-25088-000	SEAL, OIL (25X38X6)	1	Rp60.000
7	24121-85252-000	SHAFT, MAIN	1	Rp1.771.500
8	06111-06004-000 SUB: 06111B06003N000	BALL	3	Rp1.000
9	09166-30007-000	WASHER (30.1X50X5.5)	2	Rp91.500
10	DISCONTINUE SUB: 24211-77320-000	GEAR, MAIN SHAFT LOW	1	-
11	09300-30003-000	BUSH (30X35X27.1)	1	Rp115.000
12	09263-35015-000	BEARING (35X40X26.8)	1	Rp120.000
13	24220-60A01-000	GEAR, MAIN SHAFT 2ND	1	Rp1.706.500
14	09263-35015-000	BEARING (35X40X26.8)	1	Rp120.000
15	DISCONTINUE SUB: 24230-76A20-000	GEAR, MAIN SHAFT 3RD	1	-
16	09263-30031-000	BEARING (30X35X26.8)	1	Rp112.500
17	24250-77501-000	GEAR, MAIN SHAFT 5TH	1	Rp1.086.000
18	24255-60A00-000	WASHER	1	Rp72.500
19	24801-60810-000	BEARING SET	1	Rp208.000
20	09262-30086-000	BEARING (30X62X16)	1	Rp369.500
21	09380-62001-000	RING, SNAP	1	Rp37.500
22	09262-25073-000	BEARING (25X62X17)	1	Rp184.000
23	09380-25011-000	CIRCLIP	1	Rp14.500
24	09380-28007-000	CIRCLIP	2	Rp24.500
25	24131-77502-000 SUB: 24131-77501-000	SHAFT, COUNTER	1	Rp4.255.000
26	24351-60A10-000	GEAR, COUNTER SHAFT 5TH	1	Rp1.540.500
27	09262-28020-000	BEARING (28X58X16)	1	Rp197.500
28	09380-28007-000	CIRCLIP	1	Rp24.500
29	09262-28019-000	BEARING (28X58X16)	1	Rp318.000
30	09380-58001-000	RING, SNAP	1	Rp31.500
31	09262-20073-000	BEARING (20X52X15)	1	Rp152.000
32	09380-20011-000	CIRCLIP	1	Rp22.500
33	24400-83002-000	HUB ASSY, SYNCHRONIZER LOW	1	Rp1.388.000
34	24431-83001-000	RING, SYNCHRONIZER LOW	2	Rp632.000
35	09388-00017-000	SPRING	2	Rp23.000
36	24410-83002-000	HUB ASSY, SYNCHRONIZER HIGH	1	Rp1.124.000
37	24432-60A00-000	RING, SYNCHRONIZER HIGH	3	Rp562.000
38	09388-00019-000	SPRING	2	Rp23.000
39	09388-00019-000	SPRING	2	Rp23.000
40	24420-81A23-000	HUB ASSY,5TH & REV	1	Rp1.147.000
41	24471-60A00-000	KEY, SYNCHRONIZER	6	Rp19.500
42	24473-70D10-000	KEY, SYNCHRONIZER	3	Rp29.500
43	24551-77500-000	SHAFT, REVERSE IDLE GEAR	1	Rp424.500
44	06111-06004-000 SUB: 06111B06003N000	BALL	1	Rp1.000
45	24560-83001-000	GEAR, REVERSE IDLE	1	Rp911.500
46	09166-16018-000	WASHER (16X28X7)	1	Rp79.000
47	24571-77500-000	PLATE, SHAFT STOP	1	Rp26.500
48	01570-0820B-000 SUB: 01570-0816A-000	BOLT	1	Rp31.000
49	24671-77501-000	GEAR, COUNTERSHAFT REVERSE	1	Rp563.500
50	24681-81A42-000 SUB: 24681B81A41N000	GEAR, MAIN SHAFT REVERSE	1	Rp745.500
51	09300-30003-000	BUSH (30X35X27.1)	1	Rp115.000
52	09263-35015-000	BEARING (35X40X26.8)	1	Rp120.000
53	26121-61J00-000	RING, SPEEDOMETER EXCITER	1	Rp92.000
54	09380-25011-000	CIRCLIP	2	Rp14.500
