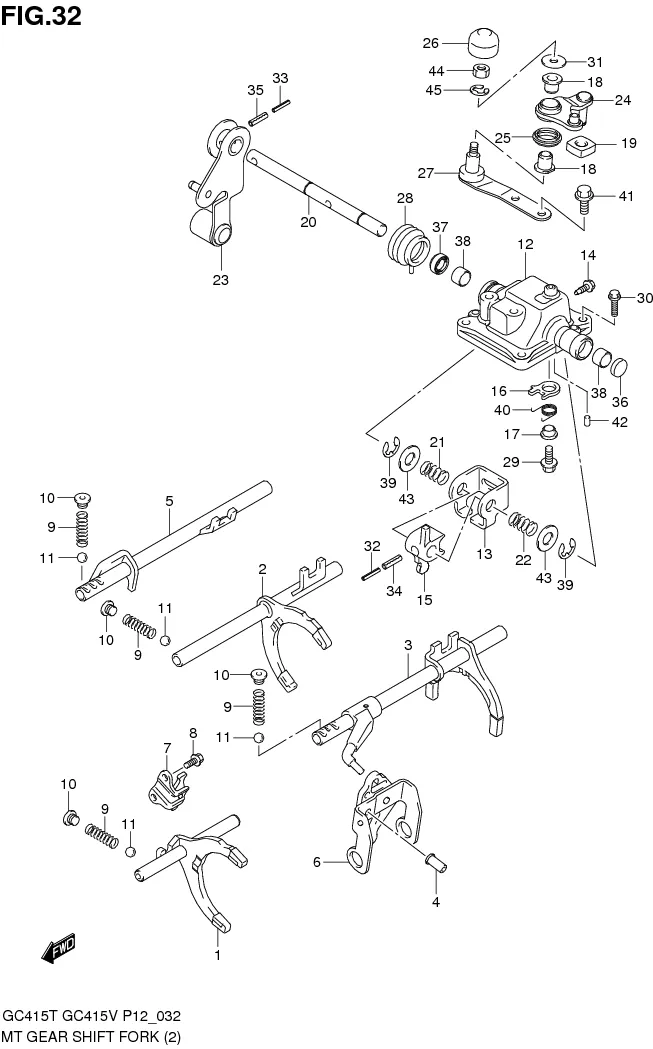

FIG.32 MT GEAR SHIFT FORK (MT:TYPE 2)

No	No. Part	Description	Qty	Price Per Pcs
1	25210-60K00-000	FORK ASSY, LOW SPEED GEAR SHIFT	1	Rp747.500
2	25220-60K02-000	FORK ASSY, HIGH SPEED GEAR SHIFT	1	Rp760.000
3	25230-60K01-000	FORK ASSY,5TH & REV GEAR SHIFT	1	Rp754.000
4	25250-77A00-000	LOCATING, REV SHIFT	1	Rp80.000
5	25410-60K00-000	SHAFT, LOW SPEED GEAR SHIFT	1	Rp628.000
6	25460-84A00-000	LEVER, REVERSE GEAR SHIFT	1	Rp334.000
7	25470-84A02-000	LEVER, LOW GR SHF INVERSE	1	Rp207.500
8	09103-08266-000	BOLT (8X20)	2	Rp21.000
9	25415-60K00-000	SPRING, GEAR SHIFT LOCATING	4	Rp35.500
10	09248-12005-000	PLUG	4	Rp34.000
11	06111-12004-000	BALL	4	Rp14.000
12	25121-60K00-000	CASE, GEAR SHIFT LEVER	1	Rp227.500
13	25311-60K00-000	PLATE, GEAR SHIFT INTERLOCK	1	Rp121.000
14	25321-78A20-000	BOLT, GEAR SHIFT STOP	1	Rp49.000
15	25541-60K00-000	LEVER, GEAR SHIFT & SELECT	1	Rp153.000
16	25545-60K00-000	YOKE, REV SHIFT LIM	1	Rp63.000
17	25546-60K00-000	RETAINER, REV SHIFT LIM YOKE	1	Rp41.000
18	25558-74B01-000	BUSH, SELECT LEVER BOSS	2	Rp35.000
19	25559-79J00-000	BUSH, SELECT LEVER SHAFT	1	Rp48.000
20	25571-60K00-000	SHAFT, GEAR SHIFT	1	Rp73.500
21	25576-68H00-000	SPRING, LOW SELECT RETURN	1	Rp30.500
22	25577-83J00-000	SPRING,5TH & REV SEL RETURN	1	Rp30.500
23	25610-60K03-000 SUB: 25610-60K00-000	LEVER, SHIFT CABLE	1	Rp476.000
24	25620-60K00-000	LEVER, SELECT CABLE	1	Rp313.000
25	25624M74B00-000	BOOT, SELECT LEVER INSIDE	1	Rp6.500
26	25625M68K00-000 SUB: 25625M74B00-000	BOOT, SELECT LEVER OUTSIDE	1	Rp6.000
27	25630-60K00-000	BRACKET, SELECT LEVER	1	Rp157.500
28	25651M68K00-000 SUB: 25651M74B00-000	BOOT, SHIFT & SELECT SFT OIL	1	Rp10.500
29	09103-06282-000	BOLT (6X25)	1	Rp16.500
30	09103-08153-000	BOLT (8X30)	4	Rp18.500
31	09160-08151-000 SUB: 09160M08151-000	WASHER (8.5X26X1.6)	1	Rp16.500
32	09205M03016-000	SPRING PIN (3.5X28)	1	Rp4.500
33	09205M03049-000 SUB: 09205M03037-000	SPRING PIN (3X25)	1	Rp6.500
34	09205M06022-000 SUB: 09205M06004-000	SPRING PIN (6X28)	1	Rp6.500
35	09205M06016-000 SUB: 09205-06007-000	SPRING PIN (6X25)	1	Rp4.500
36	09241-20006-000	PLUG	1	Rp23.500
37	09283M14005-000 SUB: 09283-14006-000	SEAL, OIL (14X22X6)	1	Rp9.000
38	09304-14020-000	BUSH	2	Rp27.000
39	08332-1112A-000	E RING	2	Rp14.000
40	09448-16031-000	SPRING	1	Rp27.500
41	01550-0816A-000 SUB: 01550B0816AN000	BOLT	2	Rp6.000
42	DISCONTINUE SUB: 04211-09169-000	PIN	2	-
43	08212M14301-000	WASHER	2	Rp4.500
44	08310-0008A-000 SUB: 08310M0008A-000	NUT	1	Rp13.000
45	08321M01083-000 SUB: 08321M0108A-000	LOCK WASHER	1	Rp11.000
