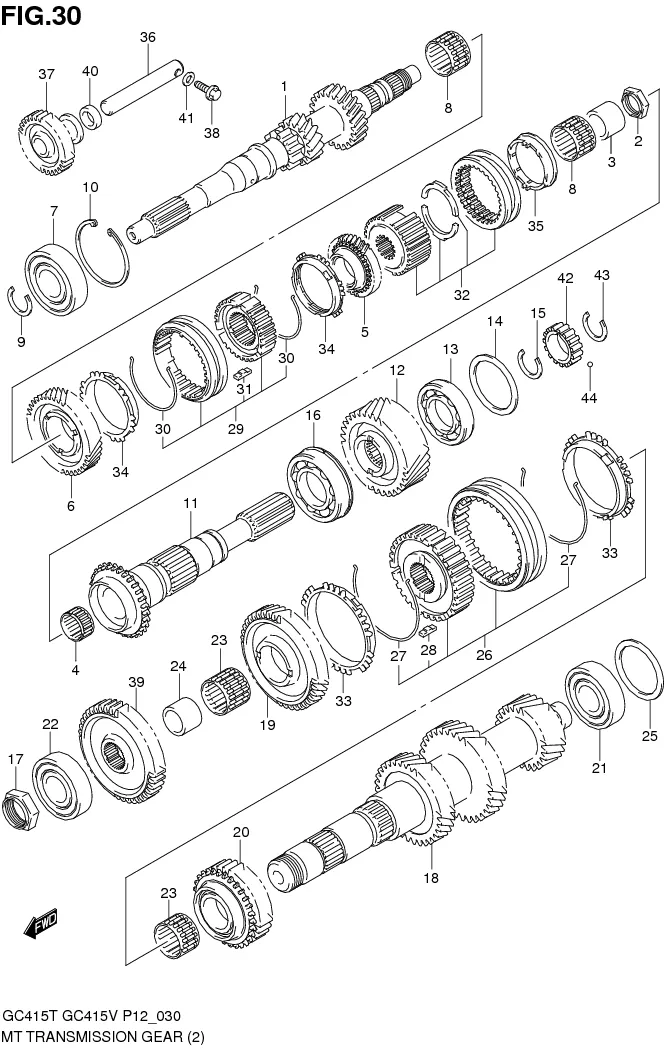

FIG.30 MT TRANSMISSION GEAR (MT:TYPE 2)

FIG.30 MT TRANSMISSION GEAR (MT:TYPE 2)
No No. Part Description Qty Price Per Pcs Remarks
1 24111-60K00-000 SHAFT, TRANSMISSION INPUT 1 Rp2.823.500
2 24117-84A00-000 NUT, INPUT SHAFT 5TH HUB 1 Rp85.000
3 24119-84A00-000 BUSH, INPUT SHAFT 3RD NDL 1 Rp147.500
4 24152-85F00-000 BEARING, INPUT SHAFT NDL 1 Rp172.500
5 24230-60K40-000
SUB: 24230-60K00-000		 GEAR, INPUT SHAFT 3RD 1 Rp1.416.000
6 24241-84A00-000 GEAR, INPUT SHAFT 4TH 1 Rp1.462.500
7 09262-30119-000 BEARING (30X72X19) 1 Rp322.000
8 09263-35015-000 BEARING (35X40X26.8) 2 Rp120.000
9 09380-30007-000 CIRCLIP 1 Rp25.500
10 09381-72001-000 CIRCLIP 1 Rp73.500
11 24121-60K00-000 SHAFT, TRANSMISSION OUTPUT 1 Rp2.163.500
12-1 24122-60K00-000 GEAR, T/M OUTPUT SHAFT 1 Rp1.168.500
12-2 24122-78K00-000 GEAR, T/M OUTPUT SHAFT 1 Rp897.000 FROM 2008-7
13 24126-64J01-000 BEARING, T/M OUTPUT SHAFT RR 1 Rp417.000
14-12 DISCONTINUE
SUB: 09181-62015-000		 SHIM (T:1.20) 0 -
14-11 DISCONTINUE
SUB: 09181-62014-000		 SHIM (T:1.10) 0 -
14-10 DISCONTINUE
SUB: 09181-62013-000		 SHIM (T:1.00) 0 -
14-9 DISCONTINUE
SUB: 09181-62012-000		 SHIM (T:0.90) 0 -
14-5 DISCONTINUE
SUB: 09181-62005-000		 SHIM (T:0.50) 0 -
14-8 DISCONTINUE
SUB: 09181-62011-000		 SHIM (T:0.80) 0 -
14-7 DISCONTINUE
SUB: 09181-62007-000		 SHIM (T:0.70) 0 -
14-6 DISCONTINUE
SUB: 09181-62010-000		 SHIM (T:0.60) 0 -
14-4 09181-62009-000 SHIM (T:0.40) 0 Rp24.000
14-3 DISCONTINUE
SUB: 09181-62004-000		 SHIM (T:0.30) 0 -
14-2 DISCONTINUE
SUB: 09181-62008-000		 SHIM (T:0.20) 0 -
14-1 09181-62003-000 SHIM (T:0.10) 0 Rp22.000
15 09380-30007-000 CIRCLIP 1 Rp25.500
16 24125-60K00-000
SUB: 08173-62070-000		 BEARING 1 Rp121.500
17 24117-84A00-000 NUT, COUNTERSHAFT FR BRG 1 Rp85.000
18-1 24131-60K01-000
SUB: 24131-60K00-000		 SHAFT, TRANSMISSION COUNTER 1 Rp3.537.500
18-2 24131-60K01-000 SHAFT, TRANSMISSION COUNTER 1 Rp3.537.500 FROM 2008-7
19 24311-64J02-000 GEAR, COUNTERSHAFT 1ST 1 Rp1.295.000
20 24320-60K00-000 GEAR, COUNTERSHAFT 2ND 1 Rp2.238.500
21 24136-60K00-000
SUB: 09262-25128-000		 BEARING (25X62X17) 1 Rp158.500
22 24135-60K00-000
SUB: 09262-25125-000		 BEARING (25X62X17) 1 Rp162.000
23 09263-35040-000 BEARING (35X40X31.8) 2 Rp73.000
24 09300-28005-000 BUSH (28X35X32) 1 Rp103.000
25-1 09181-50014-000 SHIM (T:0.90) 0 Rp57.500
25-2 09181-50013-000 SHIM (T:1.00) 0 Rp53.000
25-3 09181-50012-000 SHIM (T:1.10) 0 Rp53.000
25-4 09181-50005-000 SHIM (T:1.20) 0 Rp53.500
25-5 09181-50006-000 SHIM (T:1.30) 0 Rp53.500
25-6 09181-50007-000 SHIM (T:1.40) 0 Rp53.500
25-7 09181-50008-000 SHIM (T:1.50) 0 Rp53.500
25-8 09181-50009-000 SHIM (T:1.60) 0 Rp53.000
25-9 09181-50010-000 SHIM (T:1.70) 0 Rp53.000
25-10 09181-50011-000 SHIM (T:1.80) 0 Rp57.500
26 24400-84A00-000 HUB ASSY, LOW SPEED SYNC 1 Rp1.773.500
27 24441-76A00-000 .SPRING, SYNC LOW SPEED 2 Rp40.500
28 24472-60B00-000 .KEY, SYNCHRONIZER 3 Rp25.000
29 24410-84A01-000 HUB ASSY, HIGH SPEED SYNC 1 Rp1.609.000
30 24442-70C00-000 .SPRING, HIGH SPEED SYNC 2 Rp23.000
31 24472-60B00-000 .KEY, SYNCHRONIZER 3 Rp25.000
32 24420-84A01-000 HUB ASSY,5TH SPEED SYNC 1 Rp1.911.000
33 24431-83001-000 RING, LOW SPEED SYNC 2 Rp632.000
34 24432-60A00-000 RING, SYNC HIGH SPEED 2 Rp562.000
35 24435-84A20-000 RING,5TH SPEED SYNC 1 Rp280.500
36 24551-84A00-000 SHAFT, TRANSMISSION REV GEAR 1 Rp147.500
37 24560-84A20-000 GEAR, REVERSE IDLER 1 Rp775.000
38 24565-60B00-000 BOLT, REVERSE SHAFT 1 Rp21.500
39 24581-84A00-000 GEAR, COUNTERSHAFT REVERSE 1 Rp985.500
40 09161-18004-000 WASHER (18X27X5.5) 1 Rp34.500
41 09168M08030-000 GASKET (8.2X17X1) 1 Rp6.500
42 26121-60K00-000 RING, SPEEDOMETER EXCITER 1 Rp104.500
43 09380-30007-000 CIRCLIP 1 Rp25.500
44 06111-06004-000
SUB: 06111B06003N000		 BALL 1 Rp1.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
