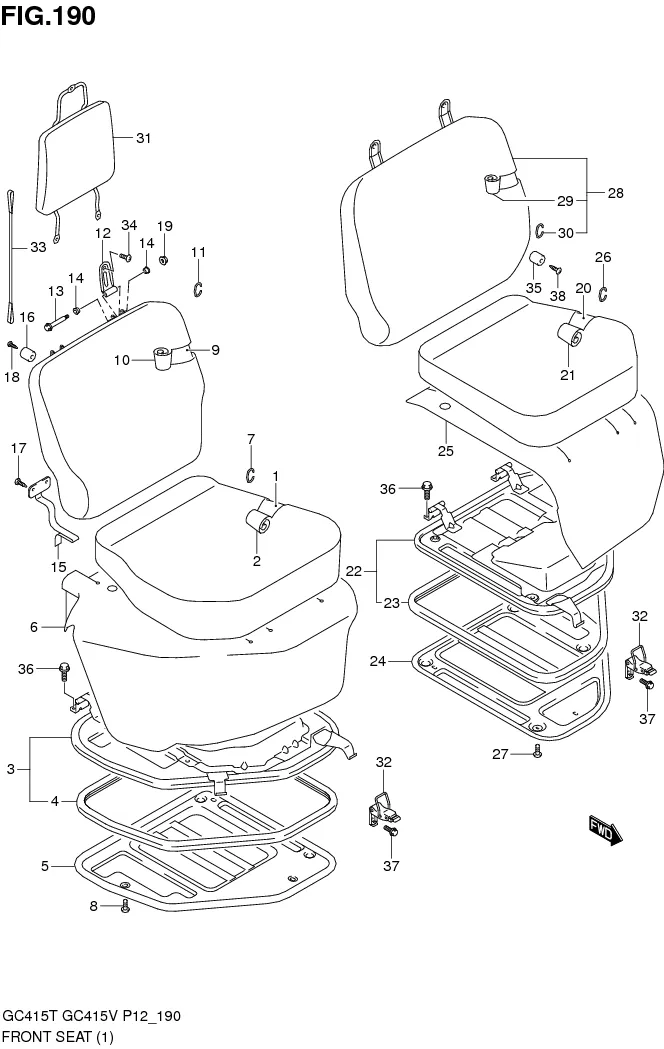

FIG.190 FRONT SEAT (GC415T)

No	No. Part	Description	Qty	Price Per Pcs
1	85160-61J00-000	PAD, CUSHION RH	1	Rp316.500
2	85180-61J00-BEG	TRIM, CUSHION RH	1	Rp146.500
3	85410-61J01-000 SUB: 85410-61J00-000	PANEL ASSY, RISER RH	1	Rp439.000
4	85428-61JA0-000	.WEATHERSTRIP	1	Rp117.500
5	85427-61JA0-000	INSULATOR	1	Rp139.500
6	85430-61J02-S01 SUB: 85430-61J00-S01	CARPET, RISER RH	1	Rp181.500
7	09387-19001-000 SUB: 09387B19001N000	RING	19	Rp9.000
8	02142-0612A-000 SUB: 02142B0612AN000	SCREW	4	Rp4.000
9	85305-61J00-000	BACK SUB ASSY	1	Rp353.500
10	85380-61J01-BEG SUB: 85380-61J00-BEG	TRIM, BACK	1	Rp179.000
11	09387-19001-000 SUB: 09387B19001N000	RING	11	Rp9.000
12	85322-61J00-000	BRACKET, BACK HINGE	2	Rp177.500
13	DISCONTINUE SUB: 85323-61J00-000	PIN	2	-
14	DISCONTINUE SUB: 85324-61J00-000	BUSH	4	-
15	85480-61J00-000	LOCK, BACK	1	Rp67.000
16	09320-06025-000	STOPPER	2	Rp33.500
17	03241-0512A-000 SUB: 03241B0512AN000	SCREW	2	Rp3.500
18	03241M0516A-000	SCREW	2	Rp4.500
19	08316-1006A-000 SUB: 08316B1006AN000	NUT	2	Rp2.000
20	85660-61J00-000	PAD, CUSHION LH	1	Rp216.500
21	85680-61J00-BEG	TRIM, CUSHION LH	1	Rp146.500
22	85910-61J01-000 SUB: 85910-61J00-000	PANEL ASSY, RISER LH	1	Rp439.000
23	85428-61JA0-000	.WEATHERSTRIP	1	Rp117.500
24	85927-61JA0-000	INSULATOR	1	Rp139.500
25	85930-61J00-S01	CARPET, RISER LH (GRAY)	1	Rp176.000
26	09387-19001-000 SUB: 09387B19001N000	RING	19	Rp9.000
27	02142-0612A-000 SUB: 02142B0612AN000	SCREW	4	Rp4.000
28	85301-61J11-BEG SUB: 85301-61J10-BEG	BACK ASSY	1	Rp531.000
29	85380-61J11-BEG SUB: 85380-61J10-BEG	.TRIM, BACK	1	Rp183.000
30	09387-19001-000 SUB: 09387B19001N000	.RING	11	Rp9.000
31	86401-61J00-BEH	HEADRESTRAINT ASSY	2	Rp185.500
32	DISCONTINUE SUB: 86650-77A02-000	LOCK ASSY	4	-
33	86710-61J00-000	BAND, STOPPER	2	Rp29.500
34	02142-0612A-000 SUB: 02142B0612BN000	SCREW	4	Rp4.000
35	09320-06025-000	STOPPER	4	Rp33.500
36	01551-0816C-000	BOLT	4	Rp13.500
37	01570-0612A-000	BOLT	8	Rp14.500
38	03241M0516A-000	SCREW	2	Rp4.500
