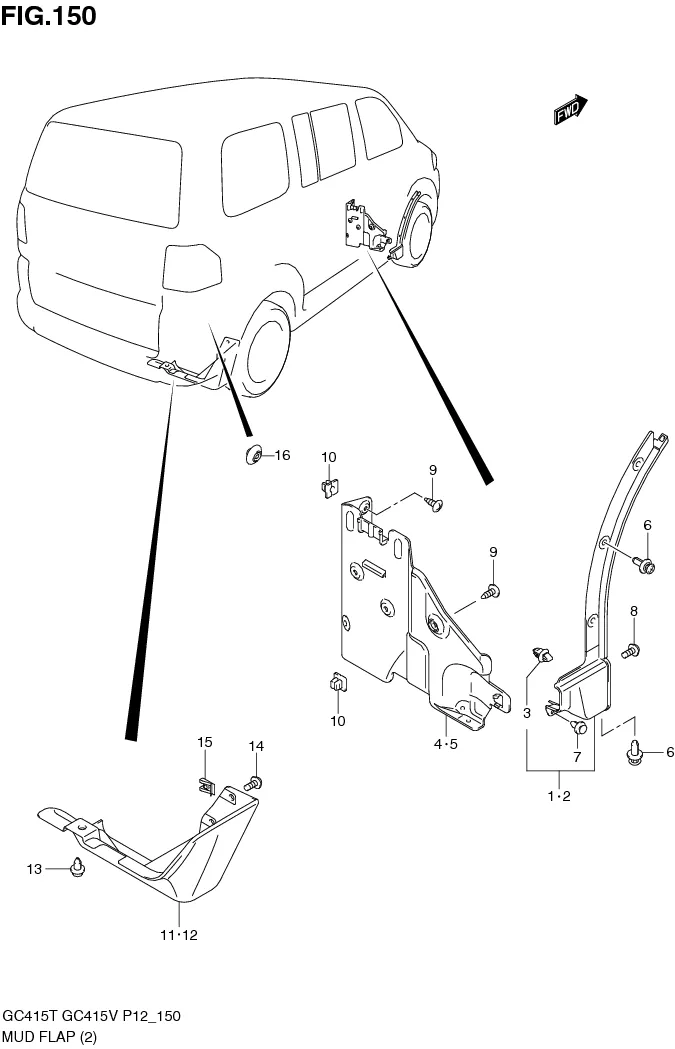

FIG.150 MUD FLAP (GC415V)

FIG.150 MUD FLAP (GC415V)
No No. Part Description Qty Price Per Pcs Remarks
1-1 72211-61J00-5PK FLAP, FR MUD RH (BLACK) 1 Rp121.500 VAN,GA,GL,BLIND VAN
1-2 72211-61J00-799
SUB: 72211-61J00-ZBC		 FLAP, FR MUD RH (BLACK) 1 Rp142.500 GLX
1-3 72211-61J00-799
SUB: 72211-61J00-ZBN		 FLAP, FR MUD RH (THRQUOISE) 1 Rp142.500 GLX
1-4 72211-61J00-799
SUB: 72211-61J00-ZBL		 FLAP, FR MUD RH (SILVER) 1 Rp142.500 GLX
1-5 72211-61J00-799
SUB: 72211-61J00-ZBF		 FLAP, FR MUD RH (BLUE) 1 Rp142.500 GLX
1-6 72211-61J00-799
SUB: 72211-61J00-ZBH		 FLAP, FR MUD RH (GREEN) 1 Rp142.500 GLX
1-7 72211-61J00-799
SUB: 72211-61J00-ZBG		 FLAP, FR MUD RH (RED) 1 Rp142.500 GLX,SGX
1-8 72211-61J00-799
SUB: 72211-61J00-ZBE		 FLAP, FR MUD RH (BEIGE) 1 Rp142.500 GLX,SGX
1-9 72211-61J00-799
SUB: 72211-61J00-ZBM		 FLAP, FR MUD RH (BROWN) 1 Rp142.500 GLX,SGX
1-10 72211-61J00-799
SUB: 72211-61J00-ZBD		 FLAP, FR MUD RH (BLACK) 1 Rp142.500 GLX,SGX
1-11 72211-61J00-799
SUB: 72211-61J00-ZCW		 FLAP, FR MUD RH (BLUE) 1 Rp142.500 GLX,SGX
1-12 72211-61J00-799
SUB: 72211-61J00-ZDL		 FLAP, FR MUD RH (GRAY) 1 Rp142.500 GLX,SGX
1-13 72211-61J00-799
SUB: 72211-61J00-ZFJ		 FLAP, FR MUD RH (PURPLE) 1 Rp142.500 GLX,SGX
1-14 72211-61J00-799
SUB: 72211-61J00-ZCT		 FLAP, FR MUD RH (BLUE) 1 Rp142.500 GLX,SGX
1-15 72211-61J00-799
SUB: 72211-61J00-Z2S		 FLAP, FR MUD RH (SILVER) 1 Rp142.500 GLX
1-16 72211-61J00-799
SUB: 72211-61J00-26U		 FLAP, FR MUD RH (WHITE) 1 Rp142.500 GLX
1-17 72211-61J00-799
SUB: 72211-61J00-ZFN		 FLAP, FR MUD RH (BLUE) 1 Rp142.500 GLX,SGX
1-18 72211-61J00-799
SUB: 72211-61J00-ZKB		 FLAP, FR MUD RH (RED) 1 Rp142.500 GLX,SGX
1-19 72211-61J00-799
SUB: 72211-61J00-ZLJ		 FLAP, FR MUD RH (BLUE) 1 Rp142.500 GLX,SGX
1-20 72211-61J00-799
SUB: 72211-61J00-ZLK		 FLAP, FR MUD RH (SILVER) 1 Rp142.500 GLX,SGX
1-21 72211-61J00-799
SUB: 72211-61J00-ZLL		 FLAP, FR MUD RH (RED) 1 Rp142.500 GLX,SGX
1-22 72211-61J00-799
SUB: 72211-61J00-ZLT		 FLAP, FR MUD RH (GOLD) 1 Rp142.500 GLX,SGX
1-23 72211-61J00-799
SUB: 72211-61J00-ZPJ		 FLAP, FR MUD RH (WHITE) 1 Rp142.500 TYPE 2:GL,GLX,SGX
1-24 72211-61J00-799
SUB: 72211-61J00-ZPK		 FLAP, FR MUD RH (GREEN) 1 Rp142.500 TYPE 2:GL,GLX,SGX
1-25 72211-61J00-ZRT FLAP, FR MUD RH (BLUE) 1 - GLX,SGX,FROM 2009-8
1-26 72211-61J00-ZRU FLAP, FR MUD RH (GREEN) 1 - GLX,SGX,FROM 2009-8
1-27 72211-61J00-ZRV FLAP, FR MUD RH (RED) 1 - GLX,SGX,FROM 2009-8
1-28 72211-61J00-ZRW FLAP, FR MUD RH (GREEN) 1 - GLX,SGX,FROM 2009-8
1-29 72211-61J00-ZRY FLAP, FR MUD RH (GRAY) 1 - GLX,SGX,FROM 2009-8
2-1 72221-61J00-5PK FLAP, FR MUD LH (BLACK) 1 Rp121.500 VAN,GA,GL,BLIND VAN
2-2 72221-61J00-799
SUB: 72221-61J00-ZBC		 FLAP, FR MUD LH (BLACK) 1 Rp142.500 GLX
2-3 72221-61J00-799
SUB: 72221-61J00-ZBN		 FLAP, FR MUD LH (TURQUOISE) 1 Rp142.500 GLX
2-4 72221-61J00-799
SUB: 72221-61J00-ZBL		 FLAP, FR MUD LH (SILVER) 1 Rp142.500 GLX
2-5 72221-61J00-799
SUB: 72221-61J00-ZBF		 FLAP, FR MUD LH (BLUE) 1 Rp142.500 GLX
2-6 72221-61J00-799
SUB: 72221-61J00-ZBH		 FLAP, FR MUD LH (GREEN) 1 Rp142.500 GLX
2-7 72221-61J00-799
SUB: 72221-61J00-ZBG		 FLAP, FR MUD LH (RED) 1 Rp142.500 GLX,SGX
2-8 72221-61J00-799
SUB: 72221-61J00-ZBE		 FLAP, FR MUD LH (BEIGE) 1 Rp142.500 GLX,SGX
2-9 72221-61J00-799
SUB: 72221-61J00-ZBM		 FLAP, FR MUD LH (BROWN) 1 Rp142.500 GLX,SGX
2-10 72221-61J00-799
SUB: 72221-61J00-ZBD		 FLAP, FR MUD LH (BLACK) 1 Rp142.500 GLX,SGX
2-11 72221-61J00-799
SUB: 72221-61J00-ZCW		 FLAP, FR MUD LH (BLUE) 1 Rp142.500 GLX,SGX
2-12 72221-61J00-799
SUB: 72221-61J00-ZDL		 FLAP, FR MUD LH (GRAY) 1 Rp142.500 GLX,SGX
2-13 72221-61J00-799
SUB: 72221-61J00-ZFJ		 FLAP, FR MUD LH (PURPLE) 1 Rp142.500 GLX,SGX
2-14 72221-61J00-799
SUB: 72221-61J00-ZCT		 FLAP, FR MUD LH (BLUE) 1 Rp142.500 GLX,SGX
2-15 72221-61J00-799
SUB: 72221-61J00-Z2S		 FLAP, FR MUD LH (SILVER) 1 Rp142.500 GLX
2-16 72221-61J00-799
SUB: 72221-61J00-26U		 FLAP, FR MUD LH (WHITE) 1 Rp142.500 GLX
2-17 72221-61J00-799
SUB: 72221-61J00-ZFN		 FLAP, FR MUD LH (BLUE) 1 Rp142.500 GLX,SGX
2-18 72221-61J00-799
SUB: 72221-61J00-ZKB		 FLAP, FR MUD LH (RED) 1 Rp142.500 GLX,SGX
2-19 72221-61J00-799
SUB: 72221-61J00-ZLJ		 FLAP, FR MUD LH (BLUE) 1 Rp142.500 GLX,SGX
2-20 72221-61J00-799
SUB: 72221-61J00-ZLK		 FLAP, FR MUD LH (SILVER) 1 Rp142.500 GLX,SGX
2-21 72221-61J00-799
SUB: 72221-61J00-ZLL		 FLAP, FR MUD LH (RED) 1 Rp142.500 GLX,SGX
2-22 72221-61J00-799
SUB: 72221-61J00-ZLT		 FLAP, FR MUD LH (GOLD) 1 Rp142.500 GLX,SGX
2-23 72221-61J00-799
SUB: 72221-61J00-ZPJ		 FLAP, FR MUD LH (WHITE) 1 Rp142.500 TYPE 2:GL,GLX,SGX
2-24 72221-61J00-799
SUB: 72221-61J00-ZPK		 FLAP, FR MUD LH (GREEN) 1 Rp142.500 TYPE 2:GL,GLX,SGX
2-25 72221-61J00-ZRT FLAP, FR MUD LH (BLUE) 1 - GLX,SGX,FROM 2009-8
2-26 72221-61J00-ZRU FLAP, FR MUD LH (GREEN) 1 - GLX,SGX,FROM 2009-8
2-27 72221-61J00-ZRV FLAP, FR MUD LH (RED) 1 - GLX,SGX,FROM 2009-8
2-28 72221-61J00-ZRW FLAP, FR MUD LH (GREEN) 1 - GLX,SGX,FROM 2009-8
2-29 72221-61J00-ZRY FLAP, FR MUD LH (GRAY) 1 - GLX,SGX,FROM 2009-8
3 09409-09304-000 .CLIP 2 Rp17.000
4 72212-61J00-000 FLAP, FR MUD INNER RH 1 Rp90.500
5 72222-61J00-000 FLAP, FR MUD INNER LH 1 Rp90.500
6 09409M07L01-000
SUB: 09409M07332-000		 CLIP 8 Rp5.000
7 09409-06322-5PK CLIP (BLACK) 2 Rp19.000
8 09136-05060-000 SCREW (5X16) 2 Rp17.500
9 09132-05053-000 SCREW 8 Rp14.000
10 09148-05018-000 NUT 10 Rp11.500
11-1 72251-61J00-5PK FLAP, RR MUD RH (BLACK) 1 Rp72.500 TYPE 1:GL
11-2 72251-61J00-ZBD
SUB: 72251-61J00-ZBC		 FLAP, RR MUD RH (BLACK) 1 Rp243.500 TYPE 1:GLX
11-3 72251-61J00-ZBD FLAP, RR MUD RH (BLACK) 1 Rp243.500 TYPE 1:GLX
11-4 DISCONTINUE
SUB: 72251-61J00-ZBE		 FLAP, RR MUD RH (BEIGE) 1 - TYPE 1:GLX
11-5 72251-61J00-5PK
SUB: 72251-61J00-ZBF		 FLAP, RR MUD RH (BLUE) 1 Rp72.500 TYPE 1:GLX
11-6 72251-61J00-5PK
SUB: 72251-61J00-ZBG		 FLAP, RR MUD RH (RED) 1 Rp72.500 TYPE 1:GLX
11-7 72251-61J00-5PK
SUB: 72251-61J00-ZBH		 FLAP, RR MUD RH (GREEN) 1 Rp72.500 TYPE 1:GLX
11-8 72251-61J00-5PK
SUB: 72251-61J00-ZBL		 FLAP, RR MUD RH (SILVER) 1 Rp72.500 TYPE 1:GLX
11-9 72251-61J00-5PK
SUB: 72251-61J00-ZBM		 FLAP, RR MUD RH (BROWN) 1 Rp72.500 TYPE 1:GLX
11-10 72251-61J00-5PK
SUB: 72251-61J00-ZBN		 FLAP, RR MUD RH (TURQUOISE) 1 Rp72.500 TYPE 1:GLX
11-11 DISCONTINUE
SUB: 72251-61J00-ZCW		 FLAP, RR MUD RH (BLUE) 1 - TYPE 1:GLX
11-12 DISCONTINUE
SUB: 72251-61J00-ZDL		 FLAP, RR MUD RH (GRAY) 1 - TYPE 1:GLX
11-13 DISCONTINUE
SUB: 72251-61J00-ZFJ		 FLAP, RR MUD RH (PURPLE) 1 - TYPE 1:GLX
11-14 DISCONTINUE
SUB: 72251-61J00-ZCT		 FLAP, RR MUD RH (BLUE) 1 - TYPE 1:GLX
11-15 72251-61J00-Z2S FLAP, RR MUD RH (SILVER) 1 Rp259.000 TYPE 1:GLX
11-16 DISCONTINUE
SUB: 72251-61J00-26U		 FLAP, RR MUD RH (WHITE) 1 - TYPE 1:GLX
12-1 72261-61J00-5PK
SUB: 72261B61J00N5PK		 FLAP, RR MUD LH (BLACK) 1 Rp72.500 TYPE 1:GL
12-2 72261-61J00-ZBD
SUB: 72261-61J00-ZBC		 FLAP, RR MUD LH (BLACK) 1 Rp243.500 TYPE 1:GLX
12-3 72261-61J00-ZBD FLAP, RR MUD LH (BLACK) 1 Rp243.500 TYPE 1:GLX
12-4 DISCONTINUE
SUB: 72261-61J00-ZBE		 FLAP, RR MUD LH (BEIGE) 1 - TYPE 1:GLX
12-5 72261-61J00-799
SUB: 72261-61J00-ZBF		 FLAP, RR MUD LH (BLUE) 1 Rp72.500 TYPE 1:GLX
12-6 72261-61J00-799
SUB: 72261-61J00-ZBG		 FLAP, RR MUD LH (RED) 1 Rp72.500 TYPE 1:GLX
12-7 72261-61J00-799
SUB: 72261-61J00-ZBH		 FLAP, RR MUD LH (GREEN) 1 Rp72.500 TYPE 1:GLX
12-8 72261-61J00-799
SUB: 72261-61J00-ZBL		 FLAP, RR MUD LH (SILVER) 1 Rp72.500 TYPE 1:GLX
12-9 72261-61J00-799
SUB: 72261-61J00-ZBM		 FLAP, RR MUD LH (BROWN) 1 Rp72.500 TYPE 1:GLX
12-10 72261-61J00-799
SUB: 72261-61J00-ZBN		 FLAP, RR MUD LH (TURQUOISE) 1 Rp72.500 TYPE 1:GLX
12-11 DISCONTINUE
SUB: 72261-61J00-ZCW		 FLAP, RR MUD LH (BLUE) 1 - TYPE 1:GLX
12-12 DISCONTINUE
SUB: 72261-61J00-ZDL		 FLAP, RR MUD LH (GRAY) 1 - TYPE 1:GLX
12-13 DISCONTINUE
SUB: 72261-61J00-ZFJ		 FLAP, RR MUD LH (PURPLE) 1 - TYPE 1:GLX
12-14 DISCONTINUE
SUB: 72261-61J00-ZCT		 FLAP, RR MUD LH (BLUE) 1 - TYPE 1:GLX
12-15 DISCONTINUE
SUB: 72261-61J00-Z2S		 FLAP, RR MUD LH (SILVER) 1 - TYPE 1:GLX
12-16 DISCONTINUE
SUB: 72261-61J00-26U		 FLAP, RR MUD LH (WHITE) 1 - TYPE 1:GLX
13 09409-08327-000 CLIP 2 Rp15.000 TYPE 1:GL,GLX
14 09136-05060-000 SCREW (5X16) 4 Rp17.500 TYPE 1:GL,GLX
15 09148-05019-000 NUT 4 Rp13.000 TYPE 1:GL,GLX
16 09250-07006-000 CAP, MUD FLAP MOUNTING HOLE 2 Rp14.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
