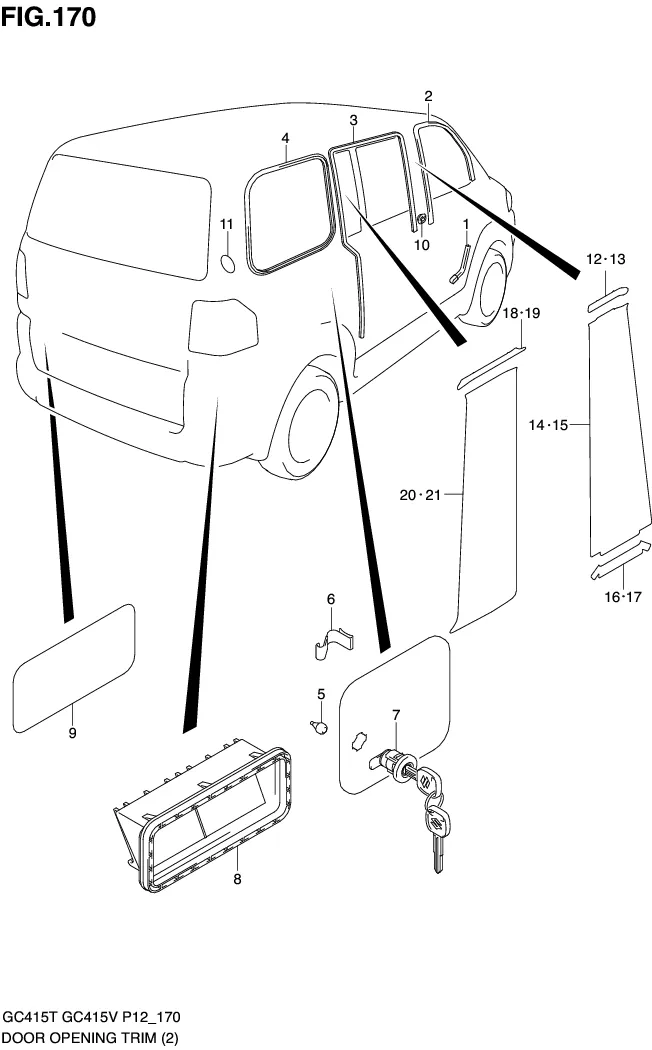

FIG.170 DOOR OPENING TRIM (GC415V)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	77110-61J00-000	TRIM, FRONT DOOR OPENING FR	2	Rp14.000	VAN,GA,BLIND VAN
2-1	77121-61J02-000	TRIM, FRONT DOOR OPENING	2	Rp58.000	VAN,GA,BLIND VAN
2-2	77121-61J12-000	TRIM, FRONT DOOR OPENING	2	Rp49.500	TYPE 1:GL,GLX
2-3	77121-60K00-000	TRIM, FRONT DOOR OPENING	2	Rp91.500	TYPE 2:GL,GLX,SGX
3-1	77131-61J02-000	TRIM, REAR DOOR OPENING	2	Rp88.000	VAN,GA,BLIND VAN
3-2	77131-61J12-000	TRIM, REAR DOOR OPENING	2	Rp78.000	TYPE 1:GL,GLX
3-3	77131-60K00-000	TRIM, REAR DOOR OPENING	2	Rp142.500	TYPE 2:GL,GLX,SGX
4	77141-61J00-000	TRIM, QTR WINDOW OPENING	2	Rp65.000	GA,GL,GLX
5	77192-50E00-000	CUSHION, FUEL LID	2	Rp31.500
6	77111-60K00-000	SPRING, FUEL LID	1	Rp42.000	TYPE 2:GL,GLX,SGX
7	89300-61890-000	CYLINDER, FUEL LID LOCK	1	Rp448.500	TYPE 1
8	77330-54G10-000	OUTLET, VENTILATOR	1	Rp261.500
9	75611-61J01-000	SEAL, VENTILATOR HOLE	1	Rp127.500
10	09250-17001-000 SUB: 09250B17001N000	CAP (OD:25.5)	6	Rp6.500
11	77195-61J00-000	FILM, BACK DOOR SIDE CUSHION	2	Rp31.000
12	DISCONTINUE SUB: 77151-61J00-0CC	TAPE, B-PILLAR UPPER RH (BLACK)	1	-	GLX,SGX
13	DISCONTINUE SUB: 77152-61J00-0CC	TAPE, B-PILLAR UPPER LH (BLACK)	1	-	GLX,SGX
14	DISCONTINUE SUB: 77161-61J00-0CC	TAPE, B-PILLAR MIDDLE RH (BLACK)	1	-	GLX,SGX
15	DISCONTINUE SUB: 77162-61J00-0CC	TAPE, B-PILLAR MIDDLE LH (BLACK)	1	-	GLX,SGX
16	DISCONTINUE SUB: 77171-61J00-0CC	TAPE, B-PILLAR LOWER RH (BLACK)	1	-	GLX,SGX
17	DISCONTINUE SUB: 77172-61J00-0CC	TAPE, B-PILLAR LOWER LH (BLACK)	1	-	GLX,SGX
18	DISCONTINUE SUB: 77181-61J00-0CC	TAPE, C-PILLAR UPPER RH (BLACK)	1	-	GLX,SGX
19	DISCONTINUE SUB: 77182-61J00-0CC	TAPE, C-PILLAR UPPER LH (BLACK)	1	-	GLX,SGX
20	DISCONTINUE SUB: 77191-61J00-0CC	TAPE, C-PILLAR MIDDLE RH (BLACK)	1	-	GLX,SGX
21	DISCONTINUE SUB: 77192-61J00-0CC	TAPE, C-PILLAR MIDDLE LH (BLACK)	1	-	GLX,SGX
